BKT.ER11.1732.01.IK
Material number BKTER11173201IK

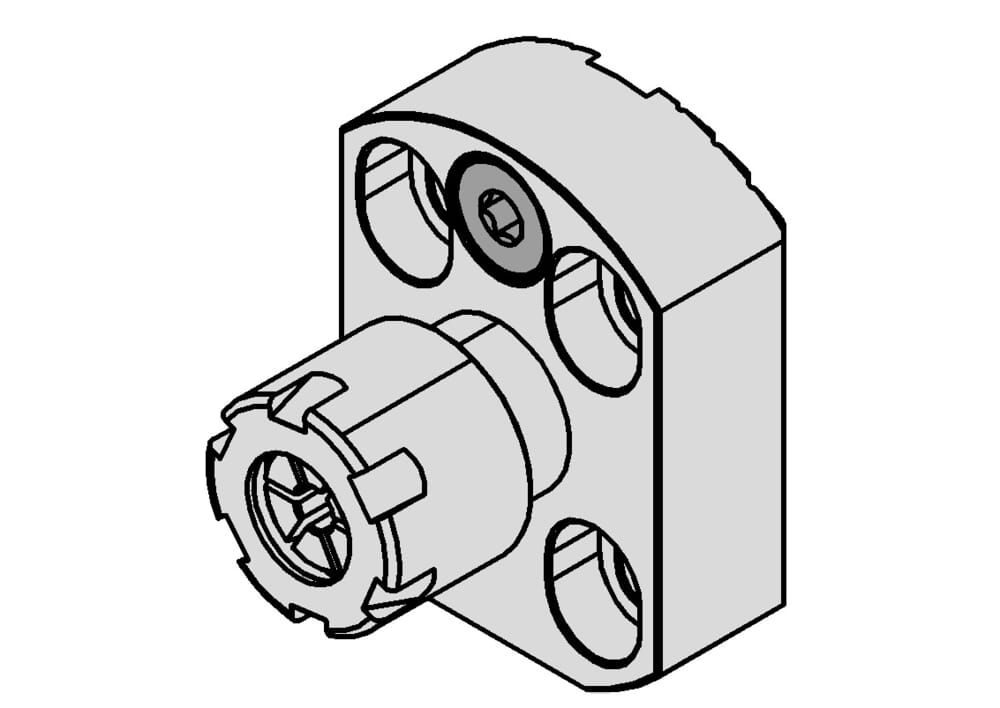

HORN Back working holder for ER11 chuck back working holder BKT.ER11.1732.01.IK for Turning
Outcropping, neck, working length (l3)
0.669 ˝
17 mm
Width (b)
0.669 ˝
17 mm
Bore diameter rotate (h)
1.26 ˝
32 mm
Total length (l1)
1.142 ˝
29 mm
tool-application
static
| Downloads | |
|---|---|
| BKTER11173201IK_20230112_173725007.STP | Download |
| BKTER11173201IK.DXF | Download |
| Download all files | |
