BKT.D012.4350.01.IK
Material number BKTD012435001IK

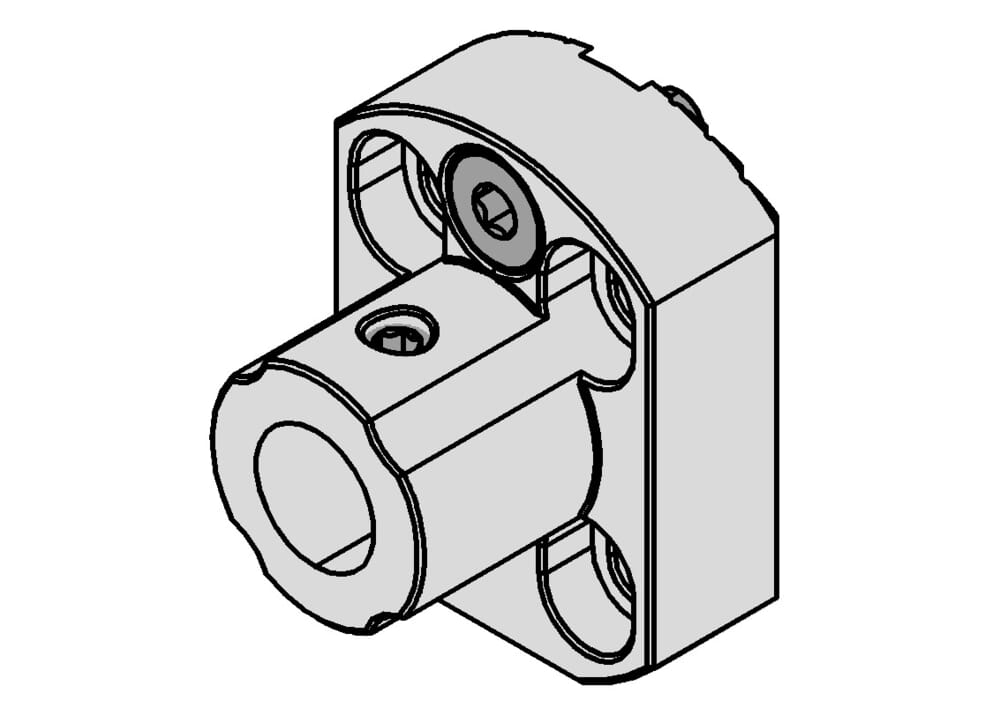

HORN Back working holder for round shank d=12mm BKT.D012.4350.01.IK for Turning
cutting
0
tool-application
static
Total length (l1)
2.047 ˝
52 mm
Outcropping, neck, working length (l3)
1.575 ˝
40 mm
Bore diameter (d)
0.472 ˝
12 mm
Bore diameter rotate (h)
1.969 ˝
50 mm
Width (b)
1.693 ˝
43 mm
| Downloads | |
|---|---|
| BKT_D012_4350_01_IK-DXF.DXF | Download |
| BKT_D012_4350_01_IK-STP.STP | Download |
| BKT_D012_4350_01_IK-ISO.XML | Download |
| BKT_D012_4350_01_IK-DIN.XML | Download |
| Download all files | |
