B116.0016.03
Material number B116001603

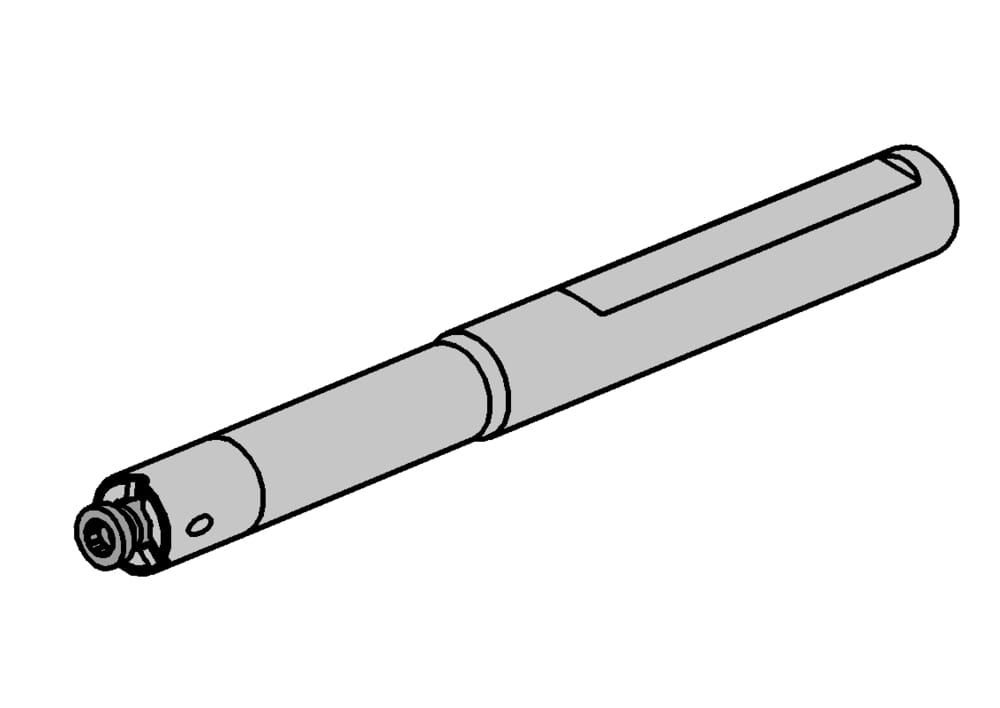

HORN Toolholders B116.0016.03 for Turning
tool-application
static
Neck diameter (d1)
0.433 ˝
11 mm
Katalog_CCTWS
116110R;116110L
Outcropping, neck, working length (l2)
3.15 ˝
80 mm
Shank, clamping diameter (d)
0.63 ˝
16 mm
Height clamping surface(s) (h)
0.591 ˝
15 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
| Downloads | |
|---|---|
| B116_0016_03_20171121_222907729.STP | Download |
| B116001603.DXF | Download |
| Download all files | |
