B114.0016.01

Material number B114001601

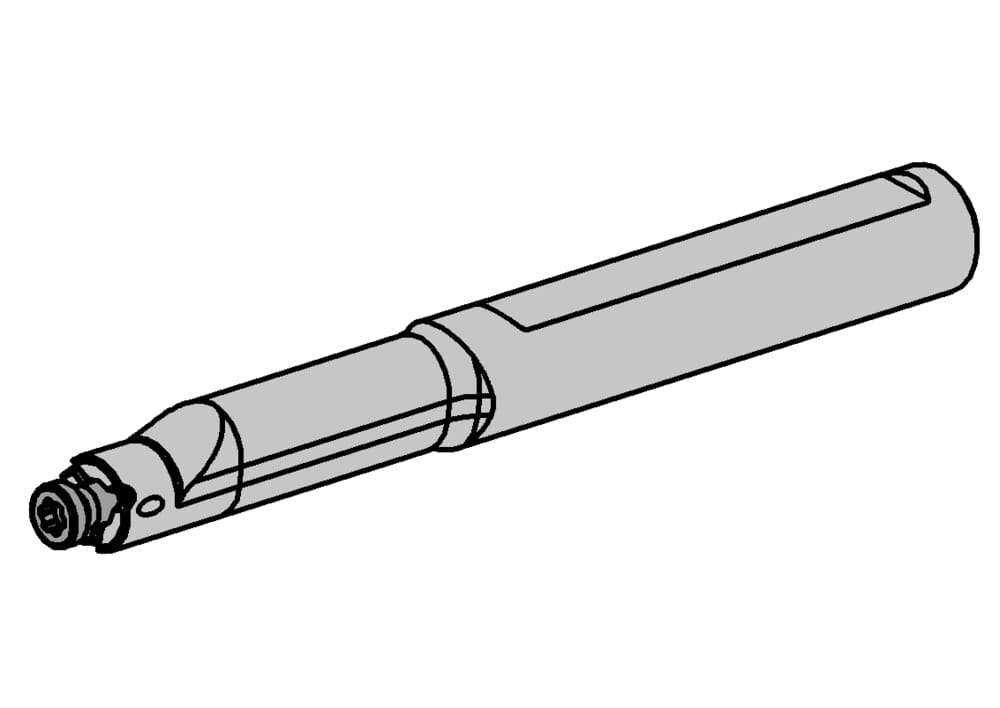

HORN Toolholders B114.0016.01 for Turning

Note: For w, a, tmax and f dimensions, see inserts. 1 clamping flat.

us-cutting

cutting

tool-application

static

Katalog_CCTWS

114090R;114090L

Outcropping, neck, working length (l2)

1.339 ˝

34 mm

Shank, clamping diameter (d)

0.63 ˝

16 mm

Length of clamping surface(s) (l4)

1.969 ˝

50 mm

Height clamping surface(s) (h)

0.591 ˝

15 mm

Total length (including cutting insert) (l1)

3.937 ˝

100 mm
