B114.0012.03

Material number B114001203

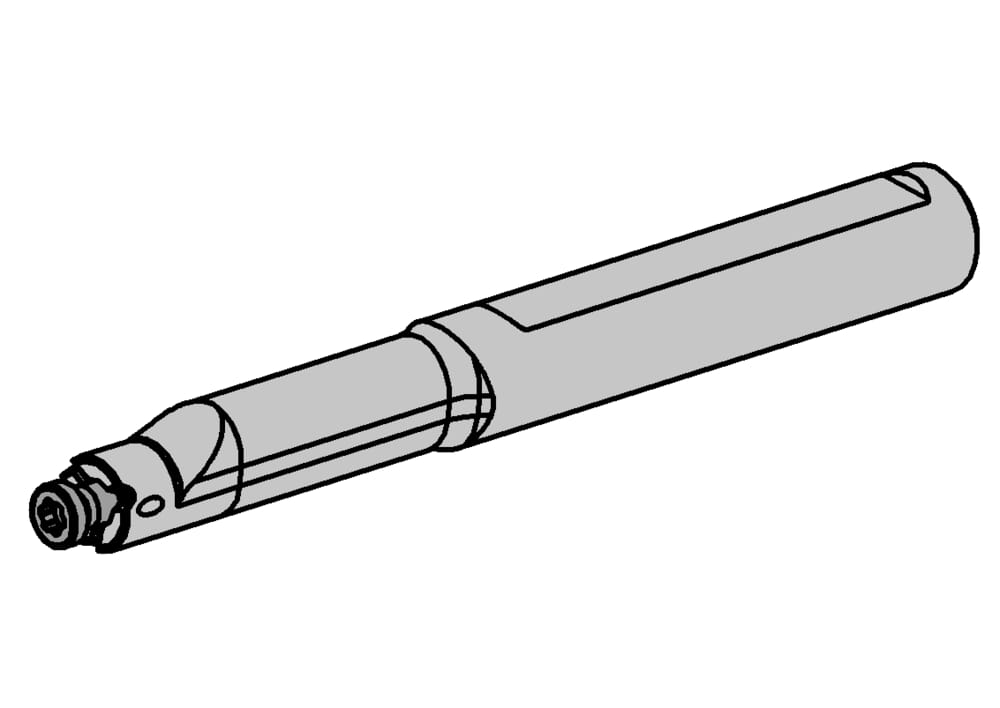

HORN Toolholders B114.0012.03 for Turning

Note: For w, a, tmax and f dimensions, see inserts. 1 clamping flat.

tool-application

static

Katalog_CCTWS

114090R;114090L

Outcropping, neck, working length (l2)

2.52 ˝

64 mm

Shank, clamping diameter (d)

0.472 ˝

12 mm

Length of clamping surface(s) (l4)

1.969 ˝

50 mm

Height clamping surface(s) (h)

0.433 ˝

11 mm

Total length (including cutting insert) (l1)

5.118 ˝

130 mm
