B105.0022.2.1.01
Material number B10500222101

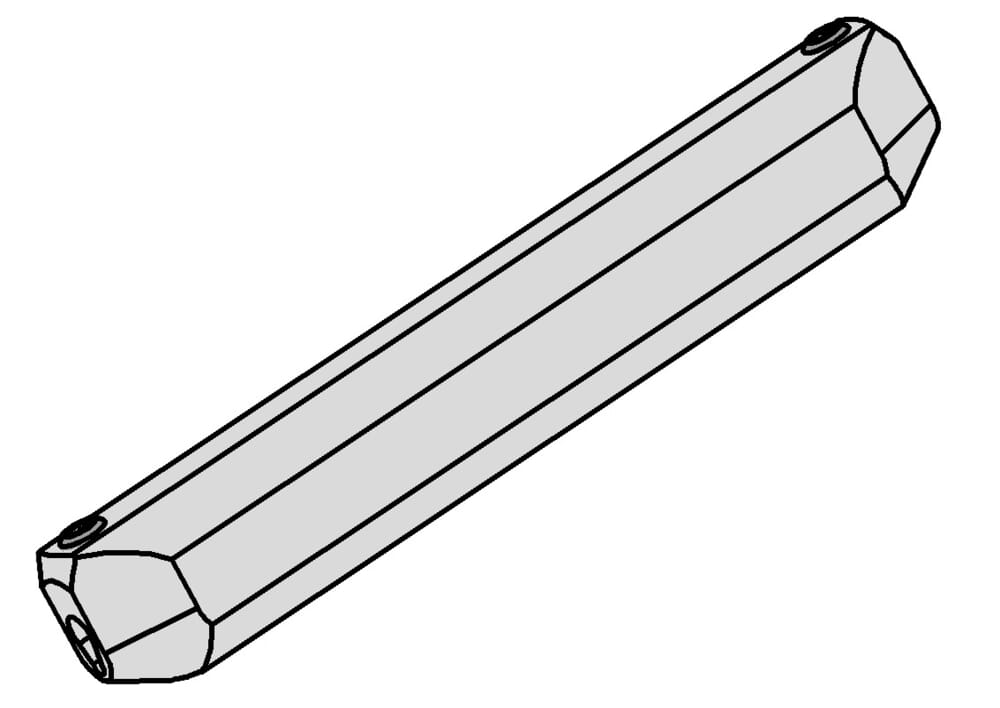

HORN Toolholder B105.0022.2.1.01 for Turning
tool-application
static
Katalog_CCTWS
105123;105124;105125
Shank width (b)
0.787 ˝
20 mm
Shank, clamping diameter (d)
0.866 ˝
22 mm
Height clamping surface(s) (h)
0.787 ˝
20 mm
Total length (without cutting insert) (l1)
3.15 ˝
80 mm
| Downloads | |
|---|---|
| B10500222101_20210627_124649978.DXF | Download |
| B105_0020_1_03_20171121_184912415.STP | Download |
| Download all files | |
