B105.0020.M8.01
Material number B1050020M801

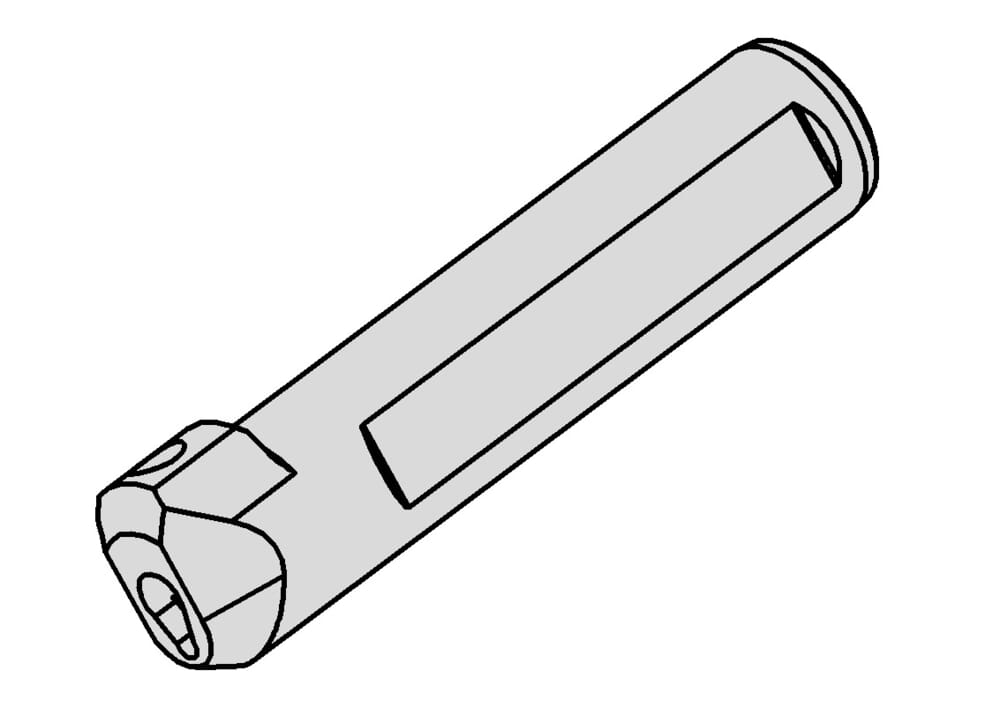

HORN Toolholder B105.0020.M8.01 for Turning
Note: These holders use M8x1 thread coolant connections.
Katalog_CCTWS
105123;105124;105125
us-cutting
No
tool-application
static
Total length (without cutting insert) (l1)
3.543 ˝
90 mm
Shank, clamping diameter (d)
0.787 ˝
20
Length of clamping surface(s) (l4)
2.165 ˝
55 mm
Height clamping surface(s) (h)
0.709 ˝
18 mm
| Downloads | |
|---|---|
| B105_0020_M8_01-ISO.XML | Download |
| B105_0020_M8_01-DIN.XML | Download |
| B105_0020_M8_01-DXF.DXF | Download |
| B105_0020_M8_01-STP.STP | Download |
| Download all files | |
