B105.0012.M8.01
Material number B1050012M801

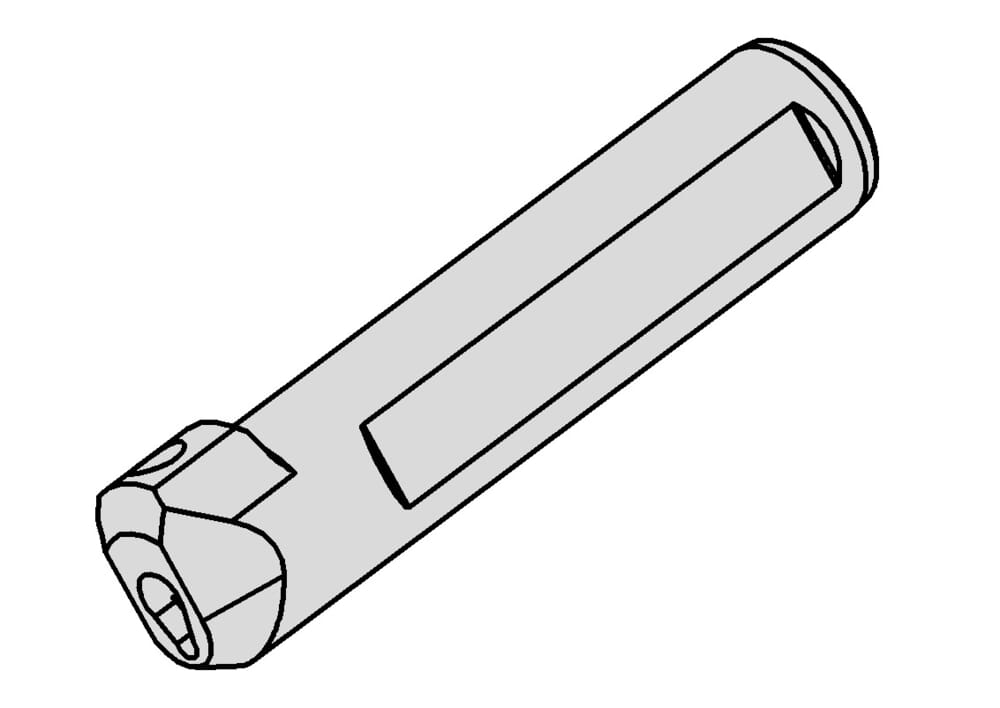

HORN Toolholder B105.0012.M8.01 for Turning
Note: These holders use M8x1 thread coolant connections.
Katalog_CCTWS
105123;105124;105125
us-cutting
No
cutting
0
tool-application
static
Total length (without cutting insert) (l1)
2.953 ˝
75 mm
Shank, clamping diameter (d)
0.472 ˝
12 mm
Length of clamping surface(s) (l4)
1.969 ˝
50 mm
Height clamping surface(s) (h)
0.433 ˝
11 mm
| Downloads | |
|---|---|
| B105_0012_M8_01-DXF.DXF | Download |
| B105_0012_M8_01-STP.STP | Download |
| B105_0012_M8_01-ISO.XML | Download |
| B105_0012_M8_01-DIN.XML | Download |
| Download all files | |
