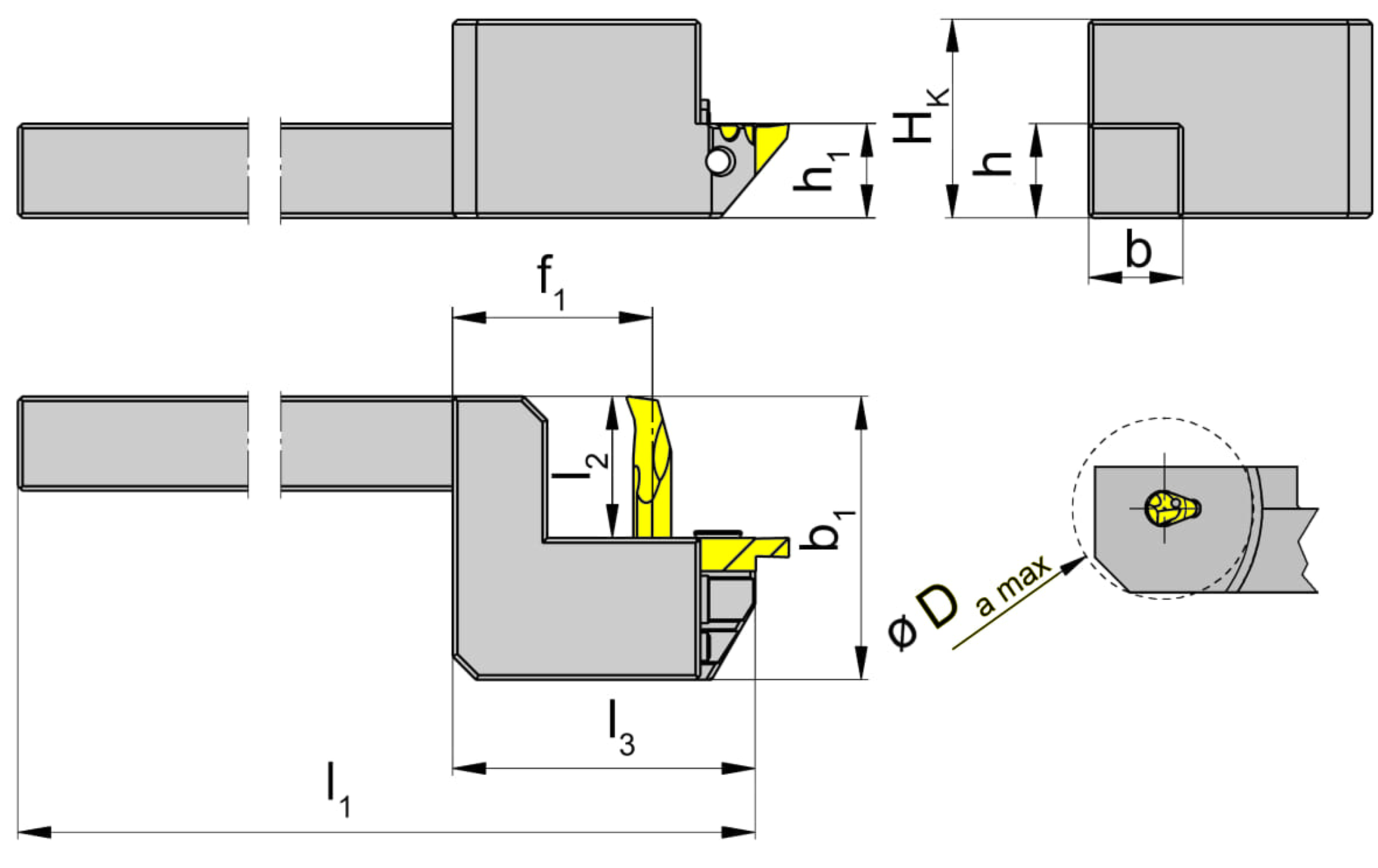

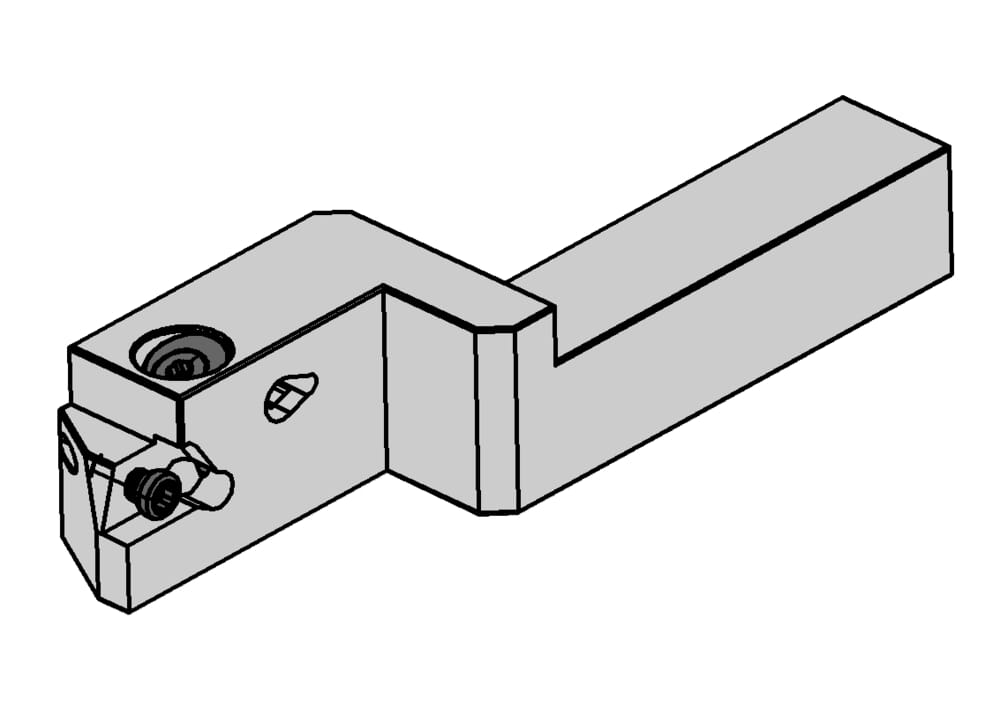

HORN Turret plate holder type Horn 105 and S274 AIH.974.R.1616.K04 for Turning

Head height (HK)

0.906 ˝

23 mm

tool-application

static

Katalog_CCTWS

105123;105124;105125;274040R

Peak height (h1)

0.63 ˝

16 mm

Useful length, maximum extension length (l2)

0.65 ˝

16.5 mm

Maximum workpiece diameter (Da max)

1.024 ˝

26 mm

Shank width (b)

0.63 ˝

16 mm

Shank height (h)

0.63 ˝

16 mm

Total length (without cutting insert) (l1)

5.118 ˝

130 mm

Total width (with head) (b1)

1.299 ˝

33 mm

Adjustment dimension cutting center (f1)

1.024 ˝

26 mm

Head length (l3)

50 mm

Inserts

S117002000MG12
