974.R.1616.04.IK

Material number 974R161604IK

HORN Turret plate holder type Horn S274 974.R.1616.04.IK for Turning

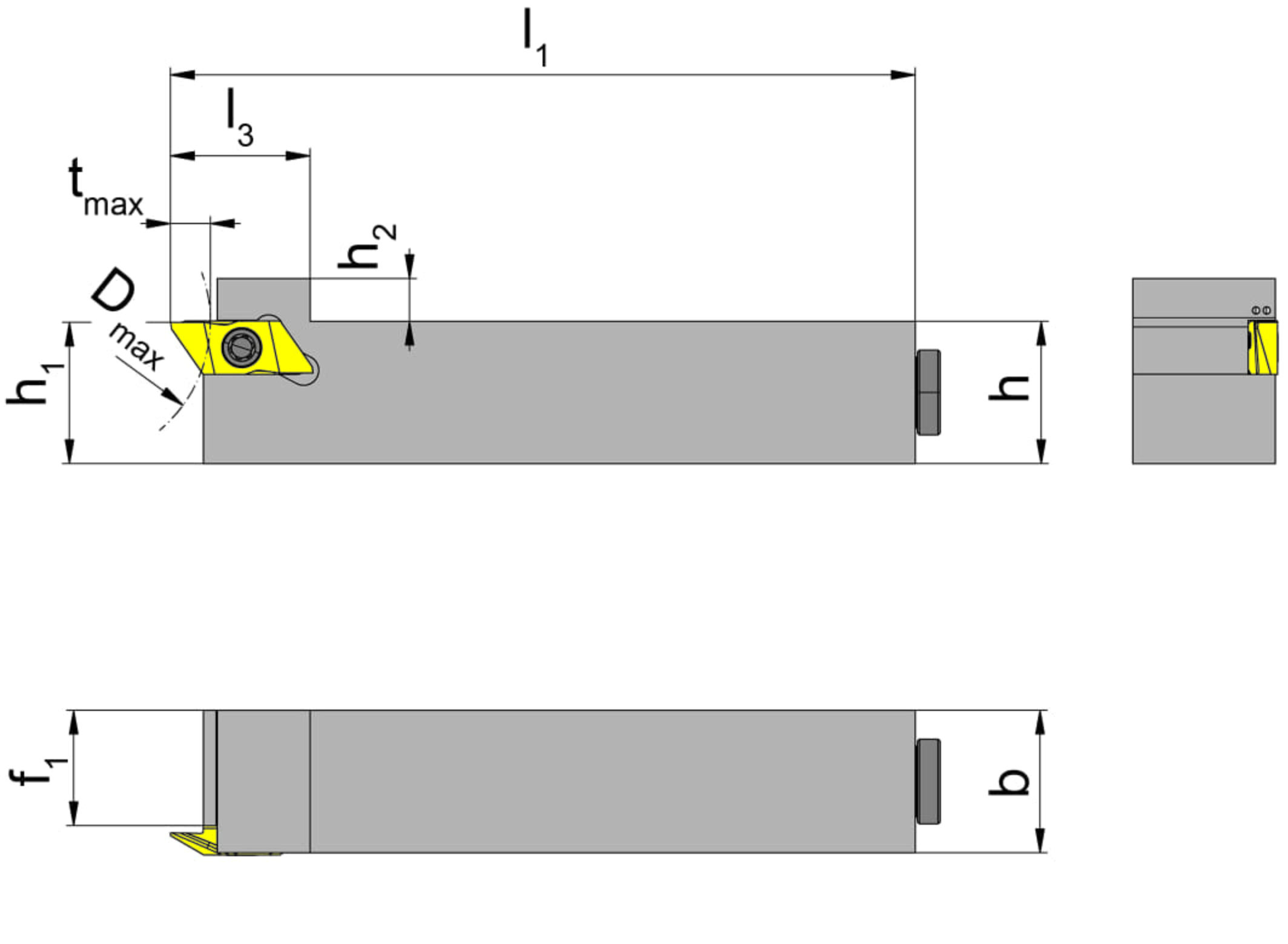

Maximum workpiece diameter (Dmax)

1.417 ˝

36 mm

tool-application

static

Head height (h2)

0.138 ˝

3.5 mm

Head length top (including cutting edge) (l3)

0.787 ˝

20 mm

Peak height (h1)

0.63 ˝

16 mm

insertion-depth-max-imp

0.236 ˝

6 mm

head-length-imp

0 ˝

0 mm

Adjustment dimension (f1)

0.48 ˝

12.2 mm

Shank width (b)

0.63 ˝

16 mm

Total length (including cutting insert) (l1)

3.937 ˝

100 mm

Katalog_CCTWS

274040R

Shank height (h)

0.63 ˝

16 mm

Downloads
974R161604IK.STP	Download
Download all files

Inserts

306013000TN35
