974.L.2020.04.2IK

Material number 974L2020042IK

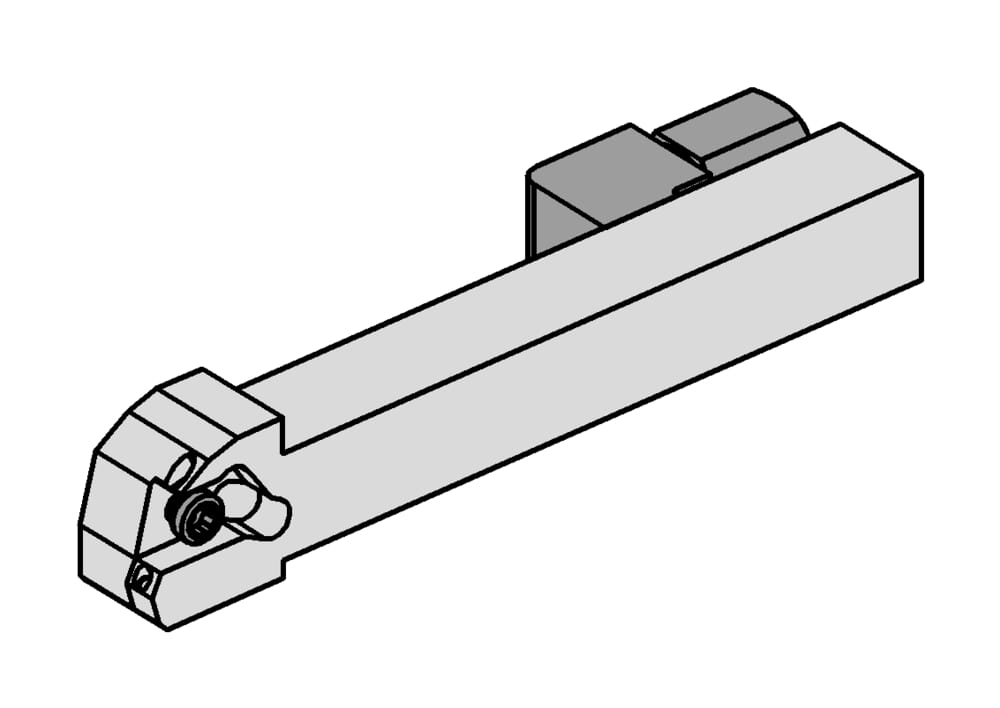

HORN Turret Plate Holder type Horn S274 974.L.2020.04.2IK for Turning

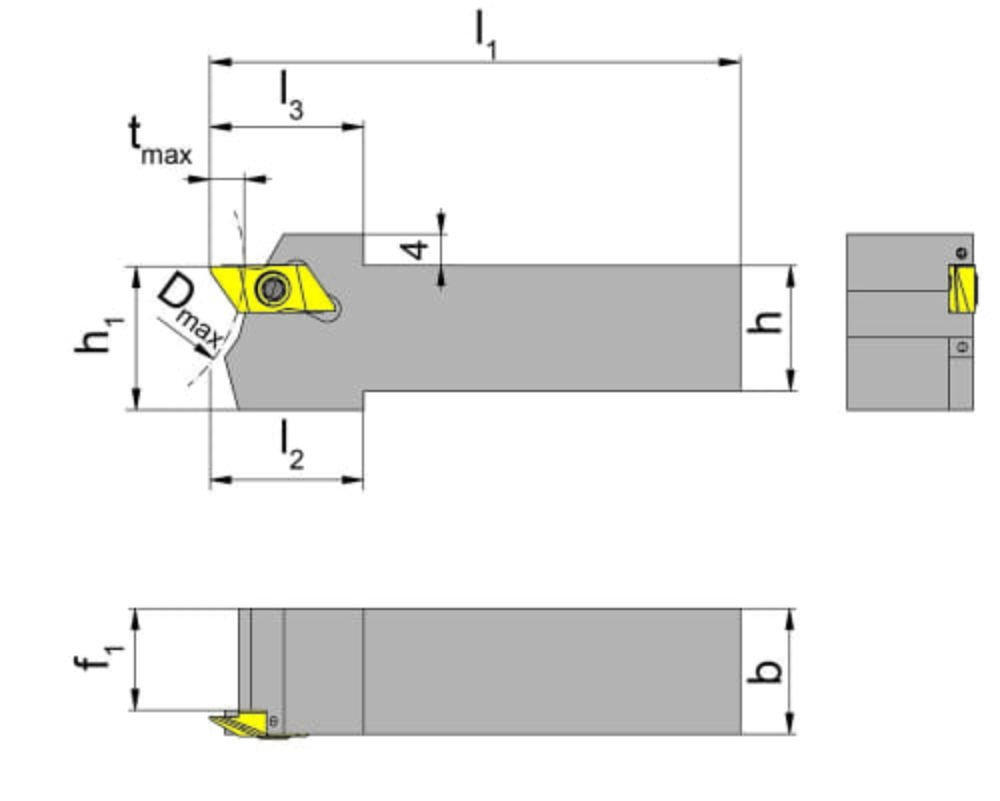

Maximum insertion depth (tmax)

0.236 ˝

6 mm

Maximum workpiece diameter (Dmax)

1.417 ˝

36 mm

Peak height (h1)

0.866 ˝

22 mm

Head length (including cutting edge) (l2)

0.787 ˝

20 mm

Head length top (including cutting edge) (l3)

0.787 ˝

20 mm

tool-application

static

Shank height (h)

0.787 ˝

20 mm

Katalog_CCTWS

274040L

us-cutting

Total length (including cutting insert) (l1)

3.937 ˝

100 mm

Adjustment dimension (f1)

0.638 ˝

16.2 mm

Shank width (b)

0.787 ˝

20 mm

shank-length-imp

3.15 ˝

80 mm
