963.16.01.R.IK

Material number 9631601RIK

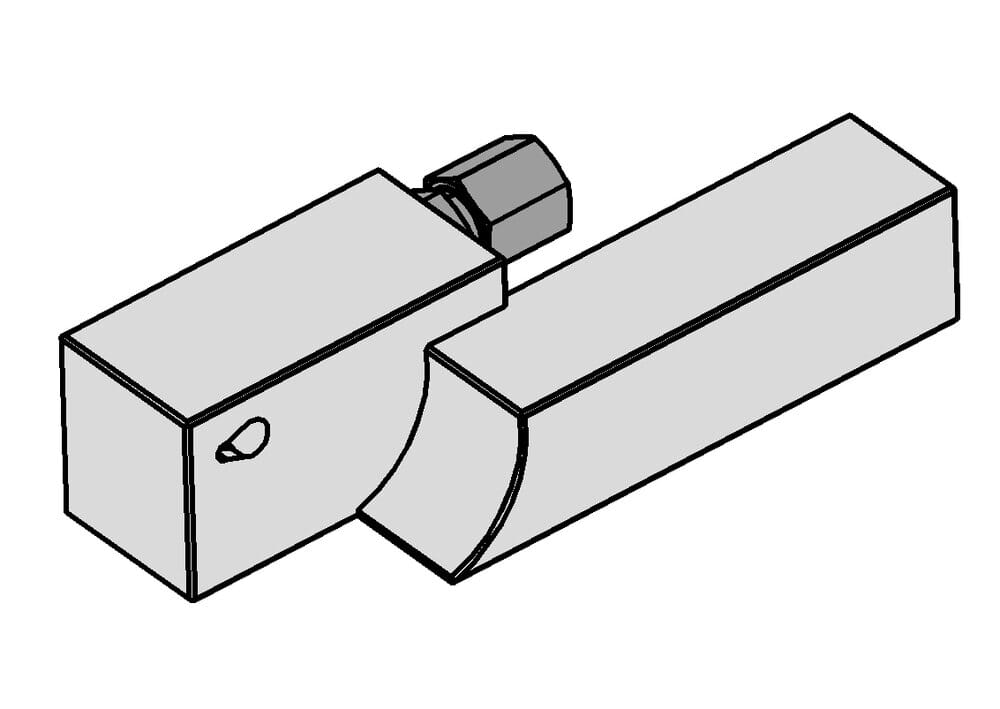

HORN Internal turning holder type Horn 105 963.16.01.R.IK for Turning

Maximum workpiece diameter (Da max)

2.047 ˝

52 mm

us-cutting

tool-application

static

Katalog_CCTWS

105123;105124;105125

Peak height (h1)

0.63 ˝

16 mm

Useful length, maximum extension length (l2)

0.709 ˝

18 mm

Shank width (b)

0.63 ˝

16 mm

Head height (HK)

0.906 ˝

23 mm

Shank height (h)

0.63 ˝

16 mm

Total length (without cutting insert) (l1)

5.118 ˝

130 mm

Total width (with head) (b1)

1.654 ˝

42 mm

Adjustment dimension cutting center (f1)

1.772 ˝

45 mm

Head length (l3)

50 mm
