910.L.1012.02.2IK
Material number 910L1012022IK

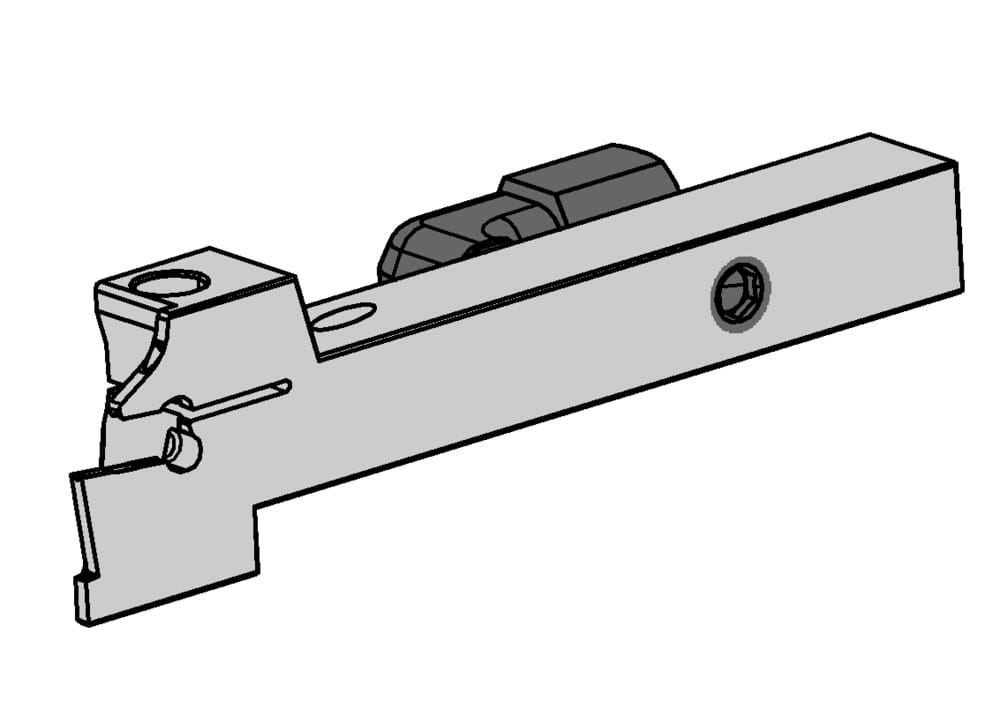

HORN Tool holder type Horn S100 910.L.1012.02.2IK for Turning

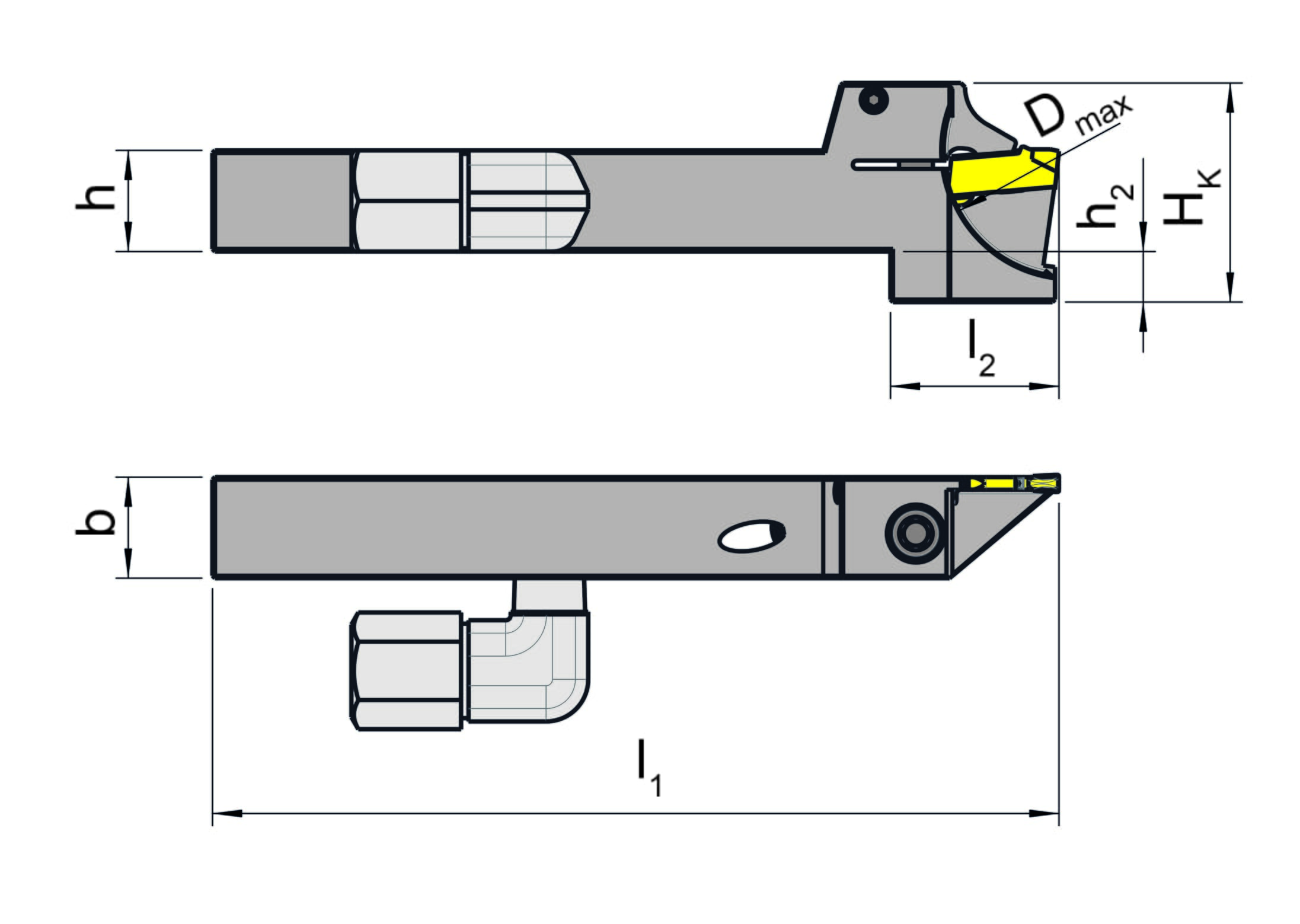

Head length (including cutting edge) (l2)
0.787 ˝
20 mm
tool-application
static
Katalog_CCTWS
100028
Distance (h2)
0.236 ˝
6 mm
Maximum workpiece diameter (Dmax)
0.787 ˝
20 mm
Head height (HK)
0.945 ˝
24 mm
Shank height (h)
0.394 ˝
10 mm
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
Shank width (b)
0.472 ˝
12 mm
