312.1002.30 P20
Recommended:
Material number 312100230P20

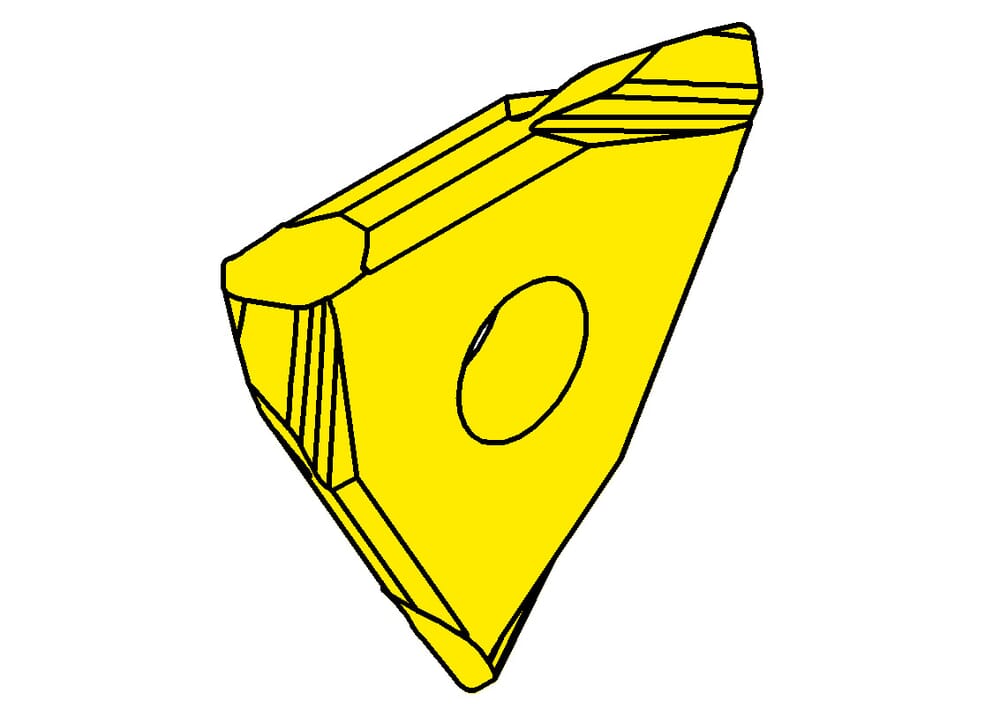

HORN Inserts 312.1002.30 P20 for Turning
Katalog_SSC
31203N
us-cutting
Yes
tool-application
static
Cutting insert width (s)
0.118 ˝
3 mm
Maximum freestanding depth (t1)
0.008 ˝
0.2 mm
Smallest workpiece diameter (Dmin)
0.787 ˝
20 mm
Profile radius (r1)
0.039 ˝
1 mm
Free-throw base width (g/f)
0.083 ˝
2.1 mm
| Downloads | |
|---|---|
| 312_1002_30_P20-ISO.XML | Download |
| 312_1002_30_P20-DIN.XML | Download |
| 312_1002_30_P20-DXF.DXF | Download |
| 312_1002_30_P20-STP.STP | Download |
| Download all files | |
