312.0200.02 H20
Material number 312020002H20

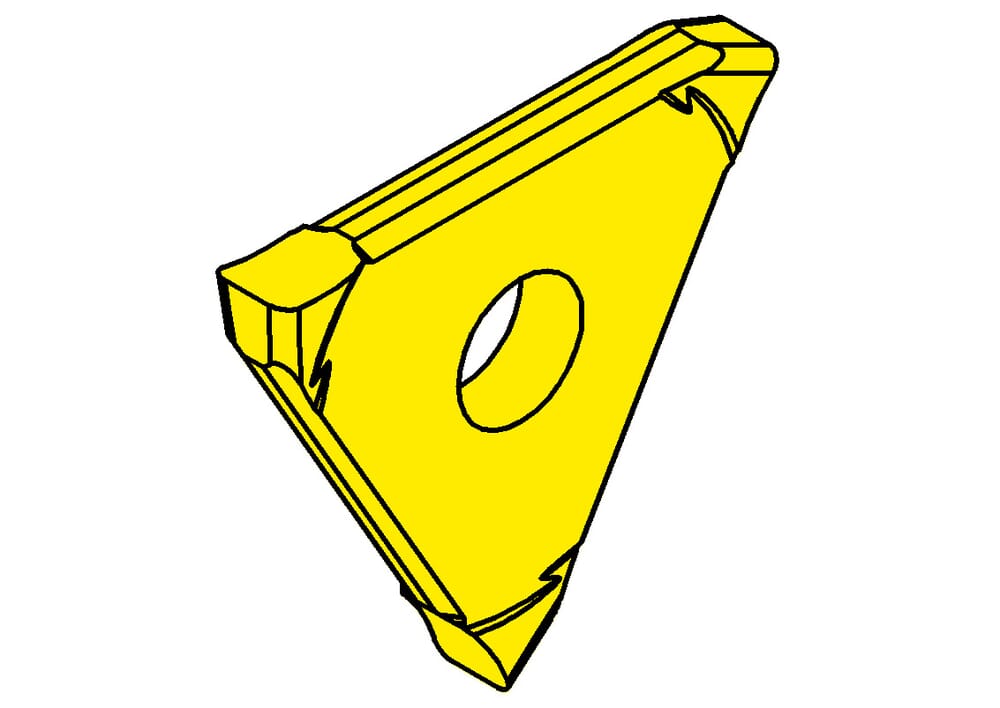

HORN Inserts 312.0200.02 H20 for Turning
Cancellation (a1)
0.01 ˝
0.25 mm
Corner radius (mm) (r)
0.008 ˝
0.2 mm
Katalog_SSC
31202N
Width of groove (w)
0.079 ˝
2 mm
tool-application
static
us-cutting
Yes
| Downloads | |
|---|---|
| 312_0200_02_H20-DXF.DXF | Download |
| 312_0200_02_H20-STP.STP | Download |
| 312_0200_02_H20-ISO.XML | Download |
| 312_0200_02_H20-DIN.XML | Download |
| Download all files | |
