1R4.M.Y.A.0005.R.10 MD10
Material number 1R4MYA0005R10MD10

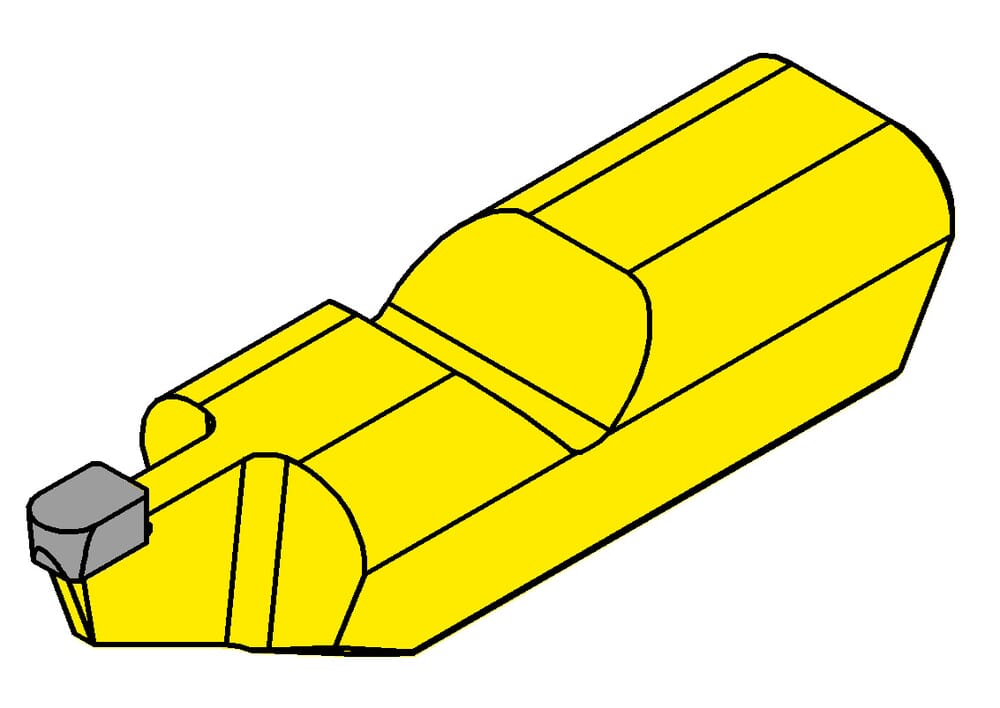

HORN Insert 1R4.M.Y.A.0005.R.10 MD10 for Turning
tool-application
static
Total length (l1)
0.571 ˝
14.5 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Radius, full-radius (r)
0.02 ˝
0.5 mm
us-cutting
Yes
Katalog_SSC
1R402
Maximum depth of groove (tmax)
0.118 ˝
3 mm
| Downloads | |
|---|---|
| 1R4_M_Y_A_0005_R_10_MD10-DXF.DXF | Download |
| 1R4_M_Y_A_0005_R_10_MD10-STP.STP | Download |
| 1R4_M_Y_A_0005_R_10_MD10-ISO.XML | Download |
| 1R4_M_Y_A_0005_R_10_MD10-DIN.XML | Download |
| Download all files | |
