1R4.M.Y.A.0000.W.10 MD10
Material number 1R4MYA0000W10MD10

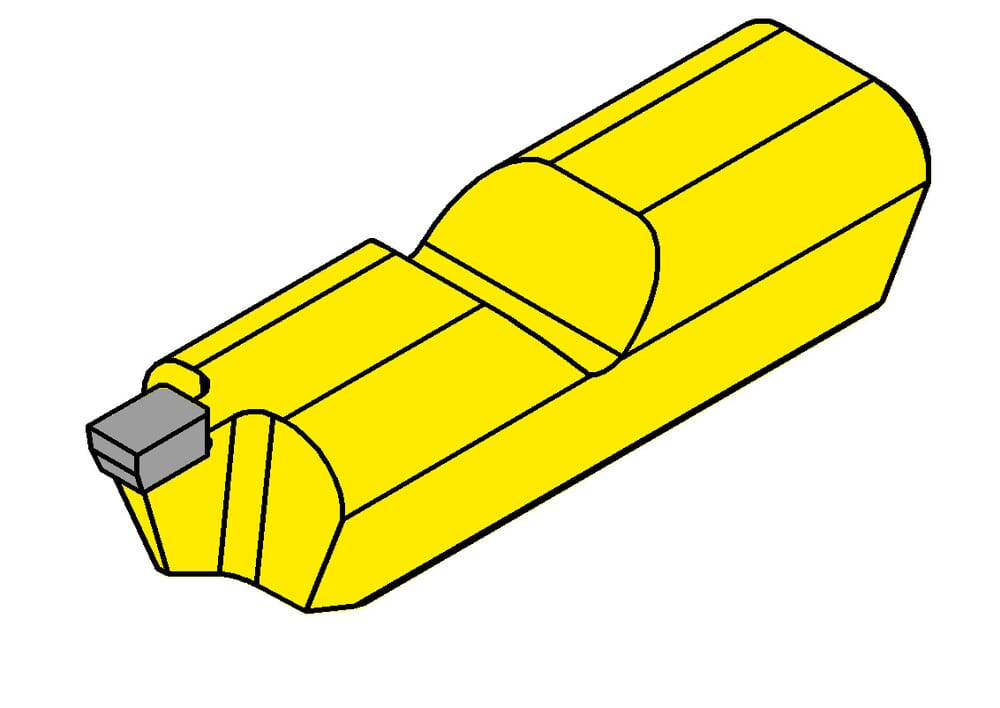

HORN Insert 1R4.M.Y.A.0000.W.10 MD10 for Turning
Maximum depth of groove (tmax)
0.079 ˝
2 mm
Katalog_SSC
1R402
Width of groove (w)
0.039 ˝
1 mm
Total length (l1)
0.571 ˝
14.5 mm
tool-application
static
us-cutting
Yes
| Downloads | |
|---|---|
| 1R4_M_Y_A_0000_W_10_MD10-DXF.DXF | Download |
| 1R4_M_Y_A_0000_W_10_MD10-STP.STP | Download |
| 1R4_M_Y_A_0000_W_10_MD10-ISO.XML | Download |
| 1R4_M_Y_A_0000_W_10_MD10-DIN.XML | Download |
| Download all files | |
