1R4.M.K.A.3000.W.40 MD10
Material number 1R4MKA3000W40MD10

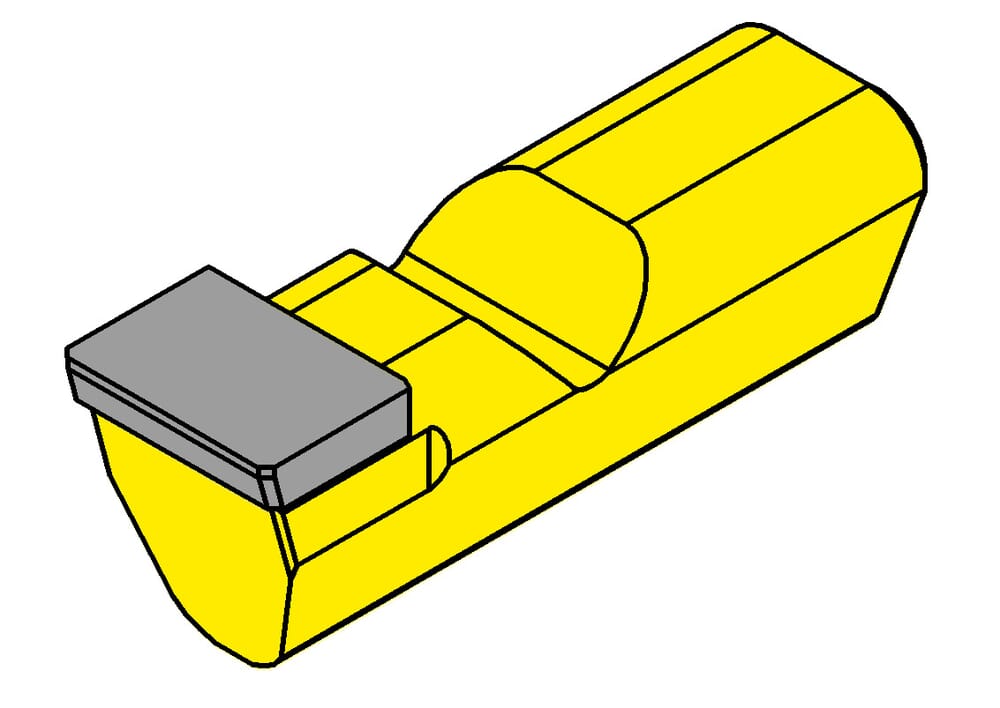

HORN Insert 1R4.M.K.A.3000.W.40 MD10 for Turning
Radius, full-radius (R)
11.811 ˝
300 mm
tool-application
static
Katalog_SSC
1R402
us-cutting
Yes
Width of groove (w)
0.157 ˝
4 mm
Total length (l1)
0.512 ˝
13 mm
| Downloads | |
|---|---|
| 1R4_M_K_A_3000_W_40_MD10-DXF.DXF | Download |
| 1R4_M_K_A_3000_W_40_MD10-STP.STP | Download |
| 1R4_M_K_A_3000_W_40_MD10-ISO.XML | Download |
| 1R4_M_K_A_3000_W_40_MD10-DIN.XML | Download |
| Download all files | |
