VCGW110302E2.N SG3TC
Material number VCGW110302E2NSG3TC

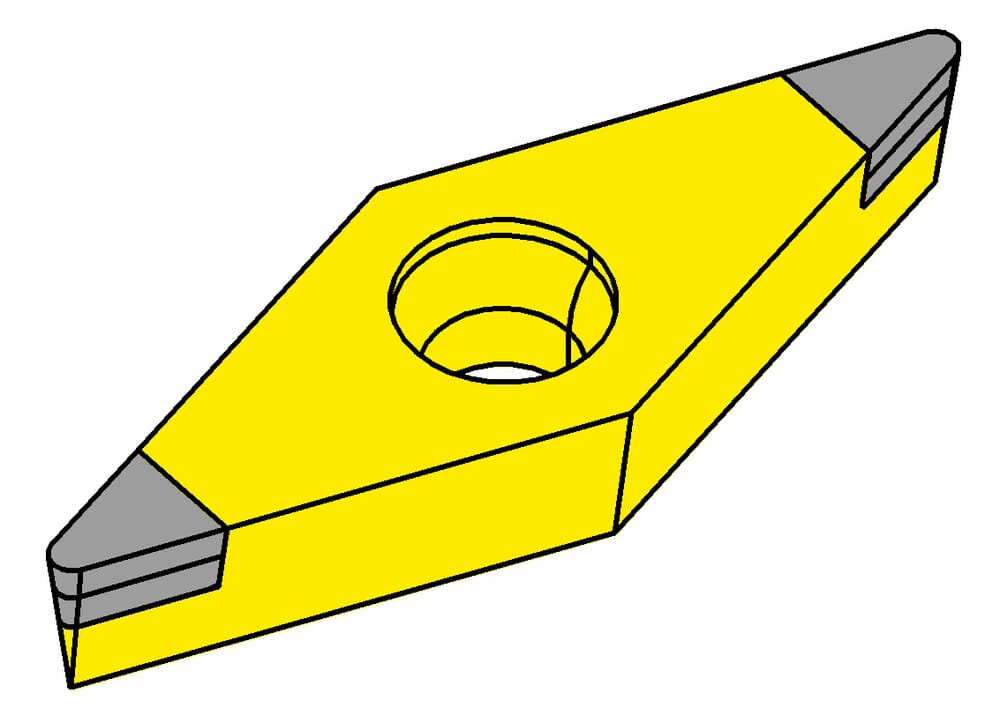

HORN CBN-ISO Inserts VCGW110302E2.N SG3TC for Turning
Inner circle diameter (d)
0.25 ˝
6.35 mm
us-cutting
Yes
cutting
1
tool-application
static
Bore diameter (d2)
0.11 ˝
2.8 mm
Effective cutting length (l1)
0.118 ˝
3 mm
Cutting insert height, Cutting insert thickness (s)
0.125 ˝
3.18 mm
Corner radius (r)
0.008 ˝
0.2 mm
