S117.1198.LR.16.B1 MG12
Material number S1171198LR16B1MG12

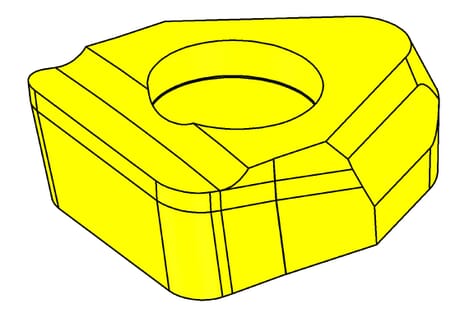

HORN insert S117.1198.LR.16.B1 MG12 for

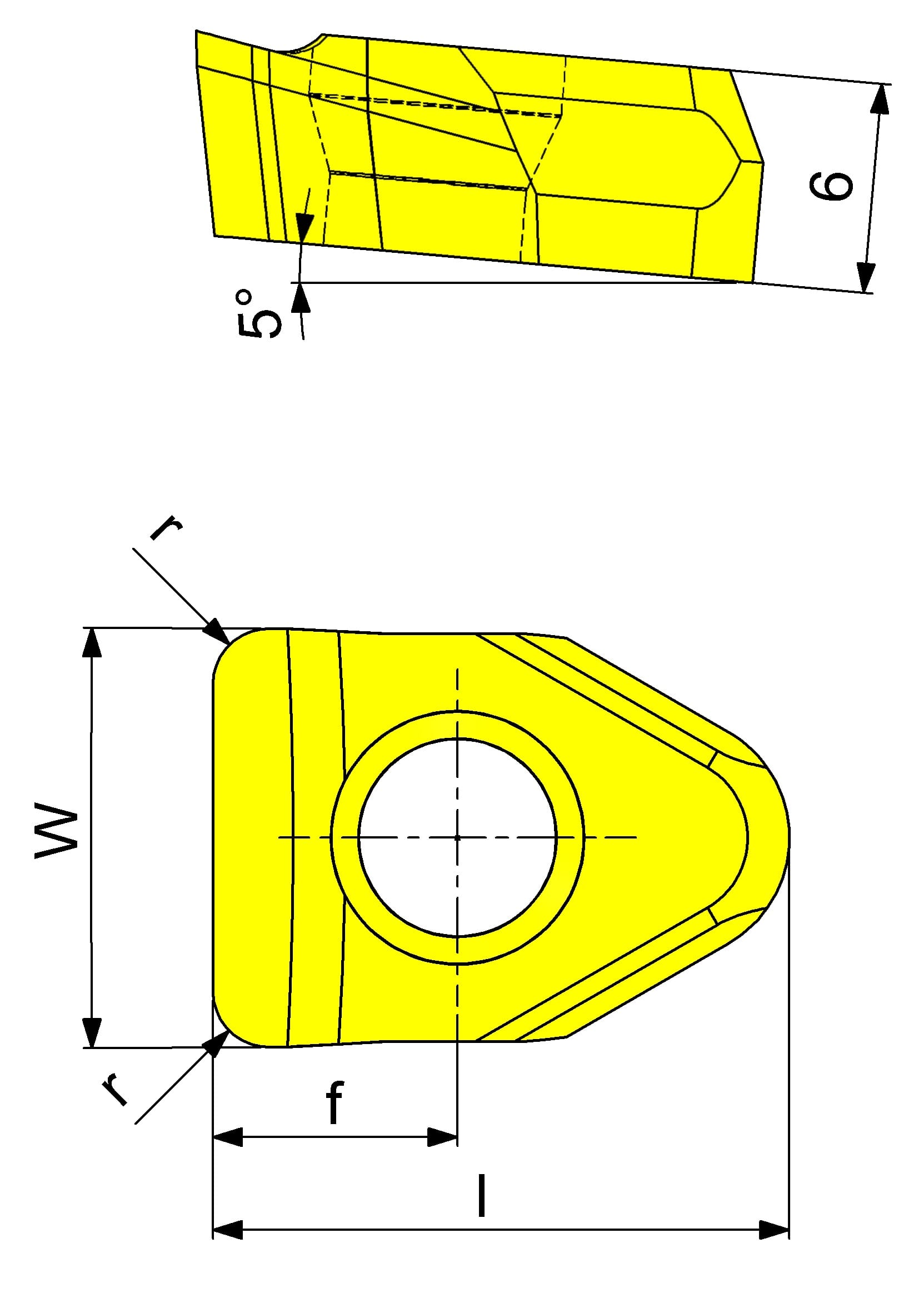

Cutting insert center from the middle (f)
0.276 ˝
7 mm
Corner radius (mm) (r)
0.062 ˝
1.58 mm
tool-application
both
Cutting width (w)
0.472 ˝
11.98 mm
Katalog_SSC
117F1605
Total length (l)
0.65 ˝
16.5 mm
| Downloads | |
|---|---|
| S1171198LR16B1.DXF | Download |
| S1171198LR16B1_20250213_084649538.STP | Download |
| Download all files | |
