LS224.0530.F2 TF45
Material number LS2240530F2TF45

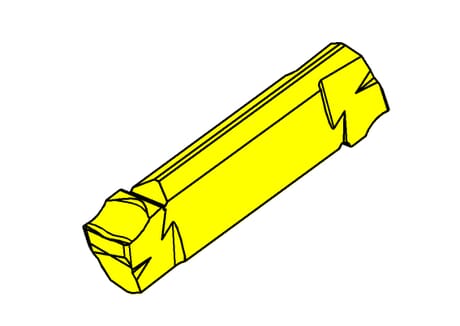

HORN Inserts LS224.0530.F2 TF45 for Turning

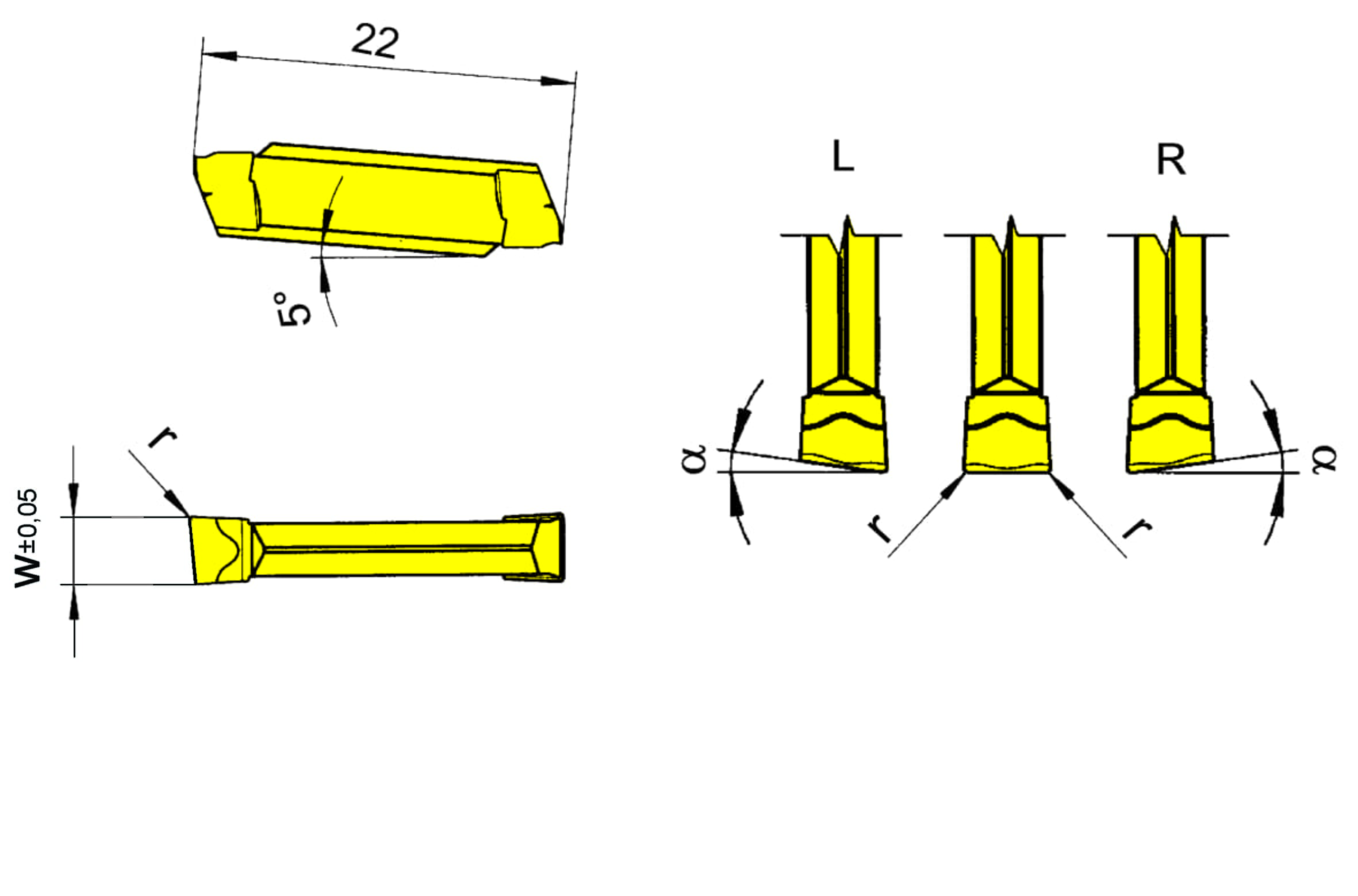

Corner radius (mm) (r)
0.008 ˝
0.2 mm
Katalog_SSC
224038
Width of groove (w)
0.118 ˝
3 mm
Parting-off chamfer (α)
5 °
machining-direction-sap
left
tool-application
static
| Downloads | |
|---|---|
| LS224_0530_F2.DXF | Download |
| LS224_0530_F2_20171121_180817367.STP | Download |
| Download all files | |
