RU221.0750.04
Material number RU221075004

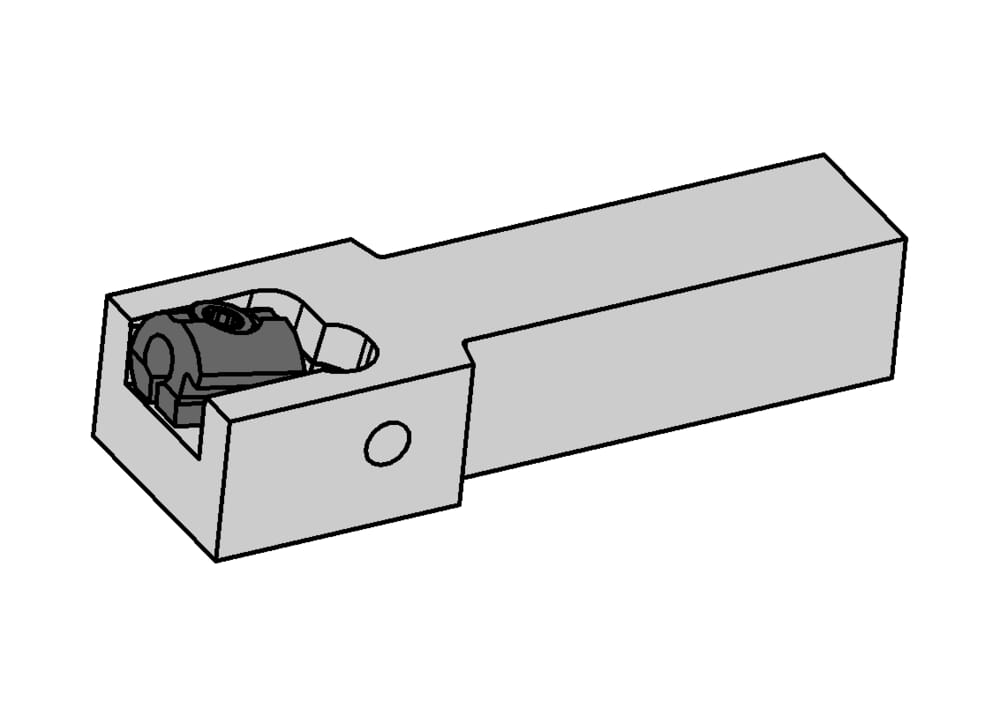

HORN Toolholders RU221.0750.04 for Turning
Clamping range maximum (Spannbereich)
0.157 ˝
4 mm
Clamping range minimum (Spannbereich)
0.118 ˝
3 mm
Katalog_CCTWS
23104R;23104N
machining-direction-sap
right
Plating seat size (Größe)
4
tightening_torque
6 Nm
tool-application
static

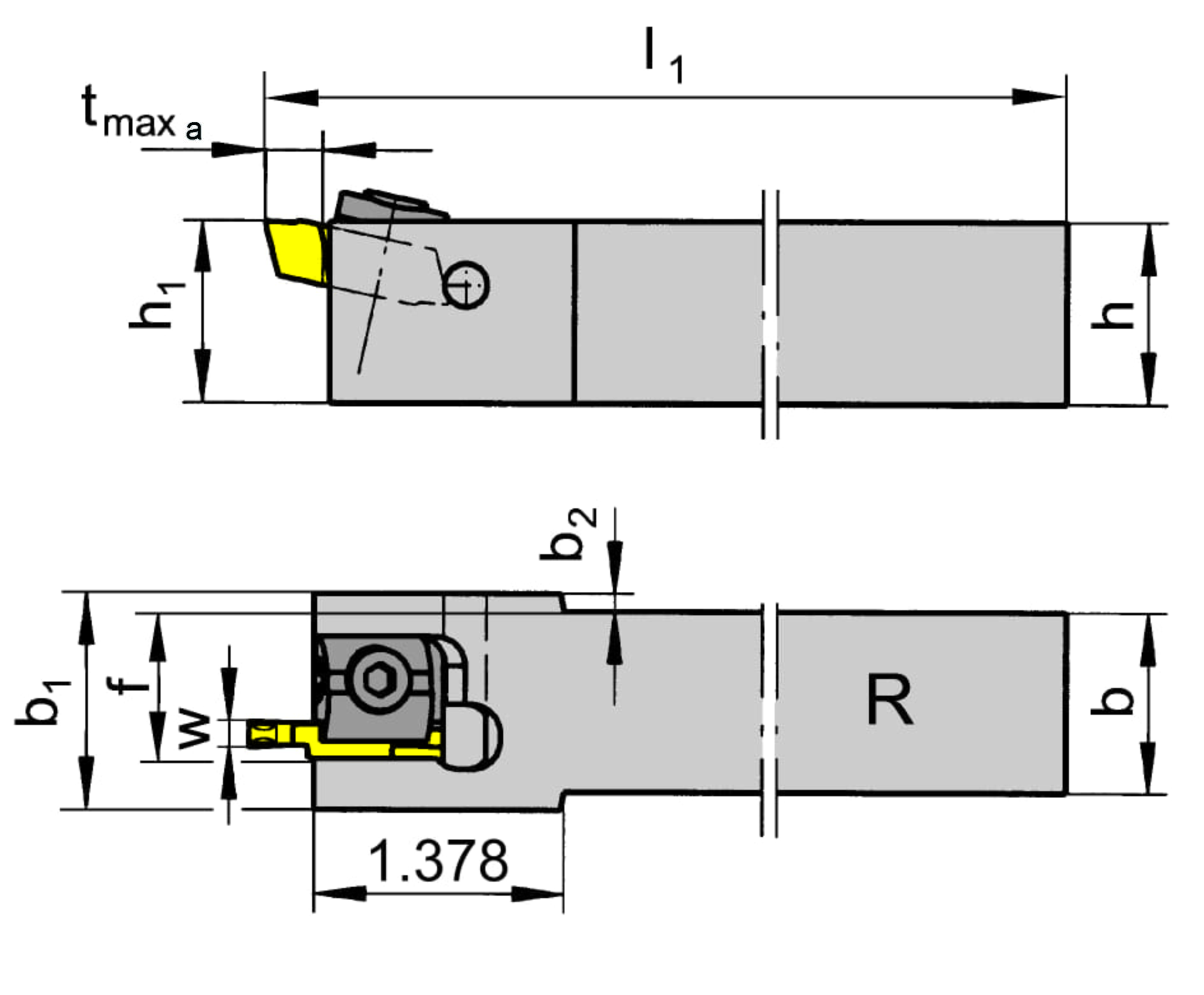

Shank width (b)
0.75 ˝
19.05 mm
Adjustment dimension (f)
0.705 ˝
17.9 mm
Total length (including cutting insert) (l1)
5.118 ˝
130 mm
Shank height (h)
0.75 ˝
19.05 mm
Head width (b1)
1.102 ˝
28 mm
Head size (b2)
0.157 ˝
4 mm
Maximum insertion depth (tmax a)
0.315 ˝
8 mm
starting-outside-diameter-min-met
1.575 ˝
40 mm
Peak height (h1)
0.75 ˝
19.05 mm
