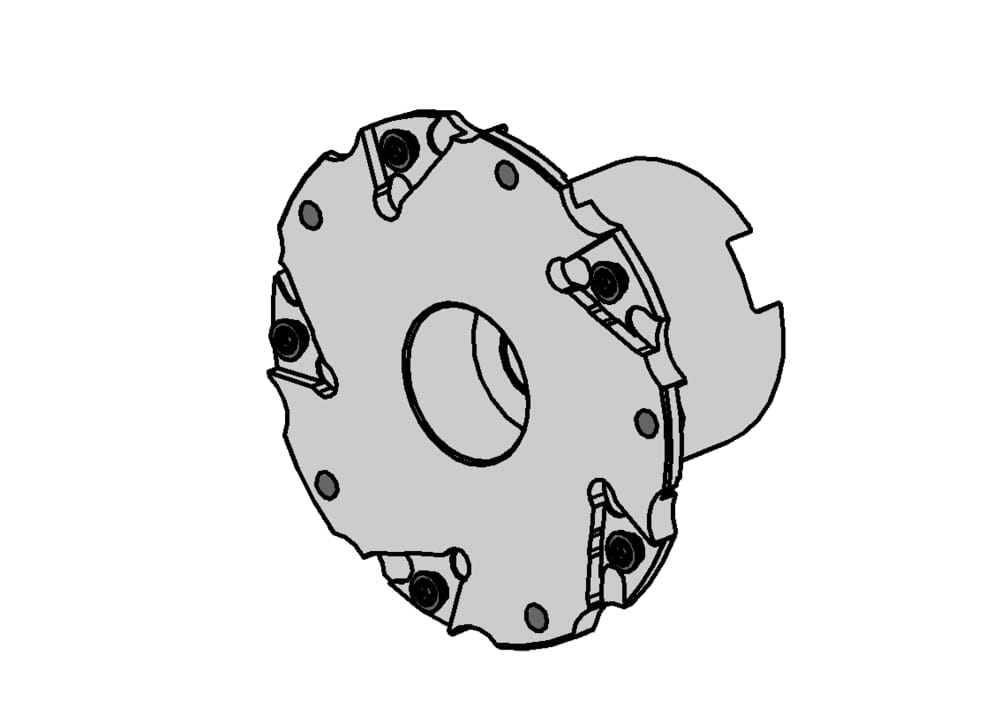

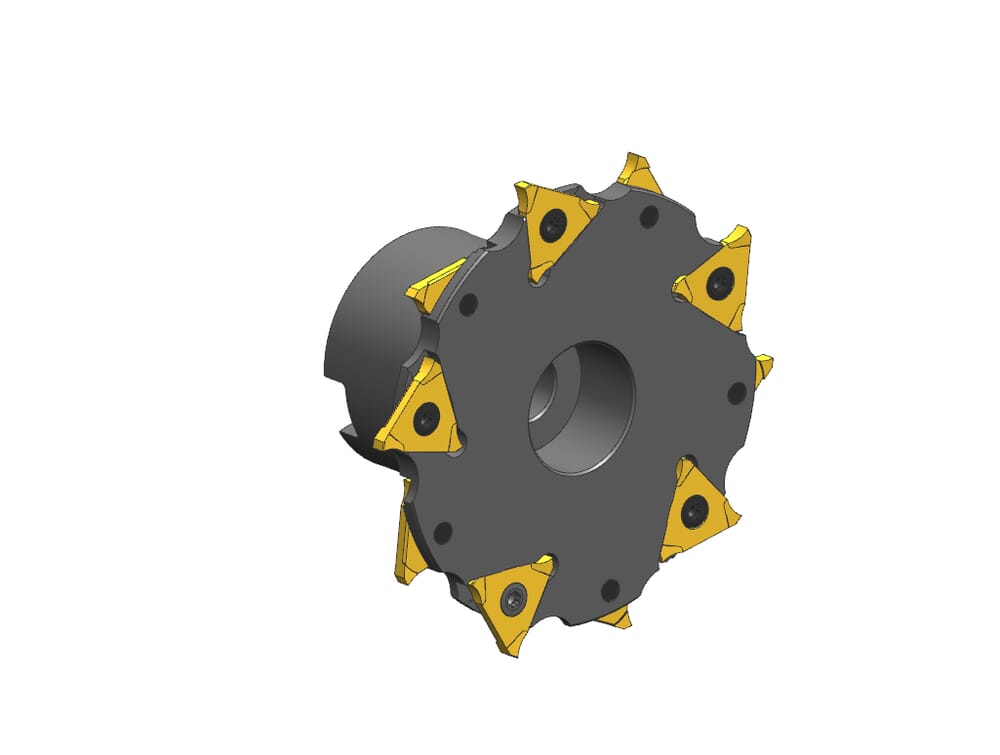

HORN Toolholders U383.4000.10 for Milling

Cutting data and technical instructions

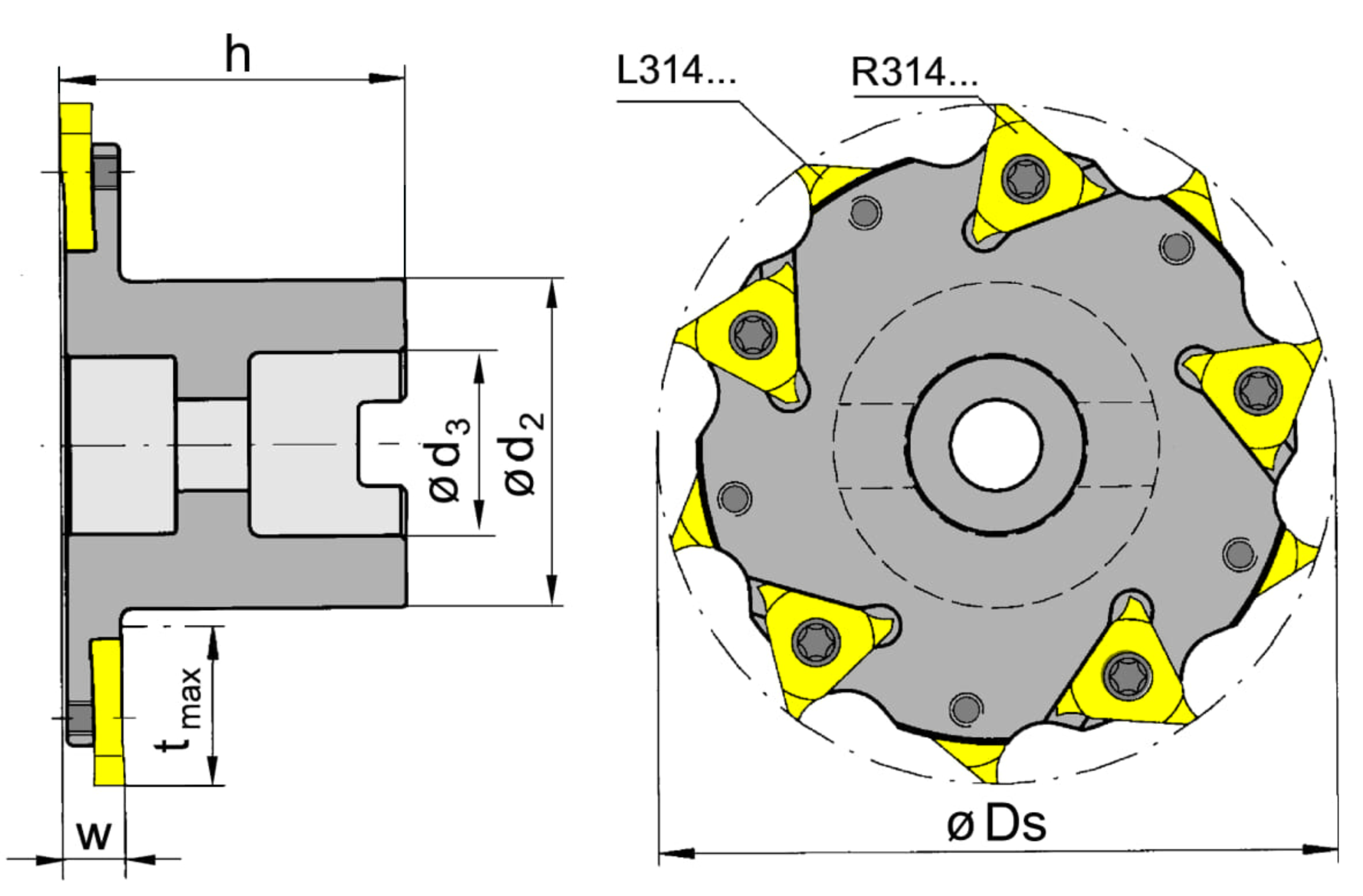

Diameter facing system for disk cutters (d3)

1 ˝

25.4 mm

tool-application

rotating

Left hand indexable insert (linke WSP)

5x L314.0054.00

Right hand indexable insert (rechte WSP)

5x R314.0054.00

Number of teeth (Z)

10 St.

Diameter of the mandrel (d2)

1.874 ˝

47.6 mm

Cutting diameter (Ds)

4 ˝

101.6 mm

Maximum milling depth (tmax)

1.023 ˝

25.984 mm

Cutting width maximum (w)

0.394 ˝

10 mm

Miller length with indexable insert (h)

2 ˝

50.8 mm

Katalog_CCTWS

314052R;314052L
