RU245.1000.02
Toolholders
Material number RU245100002

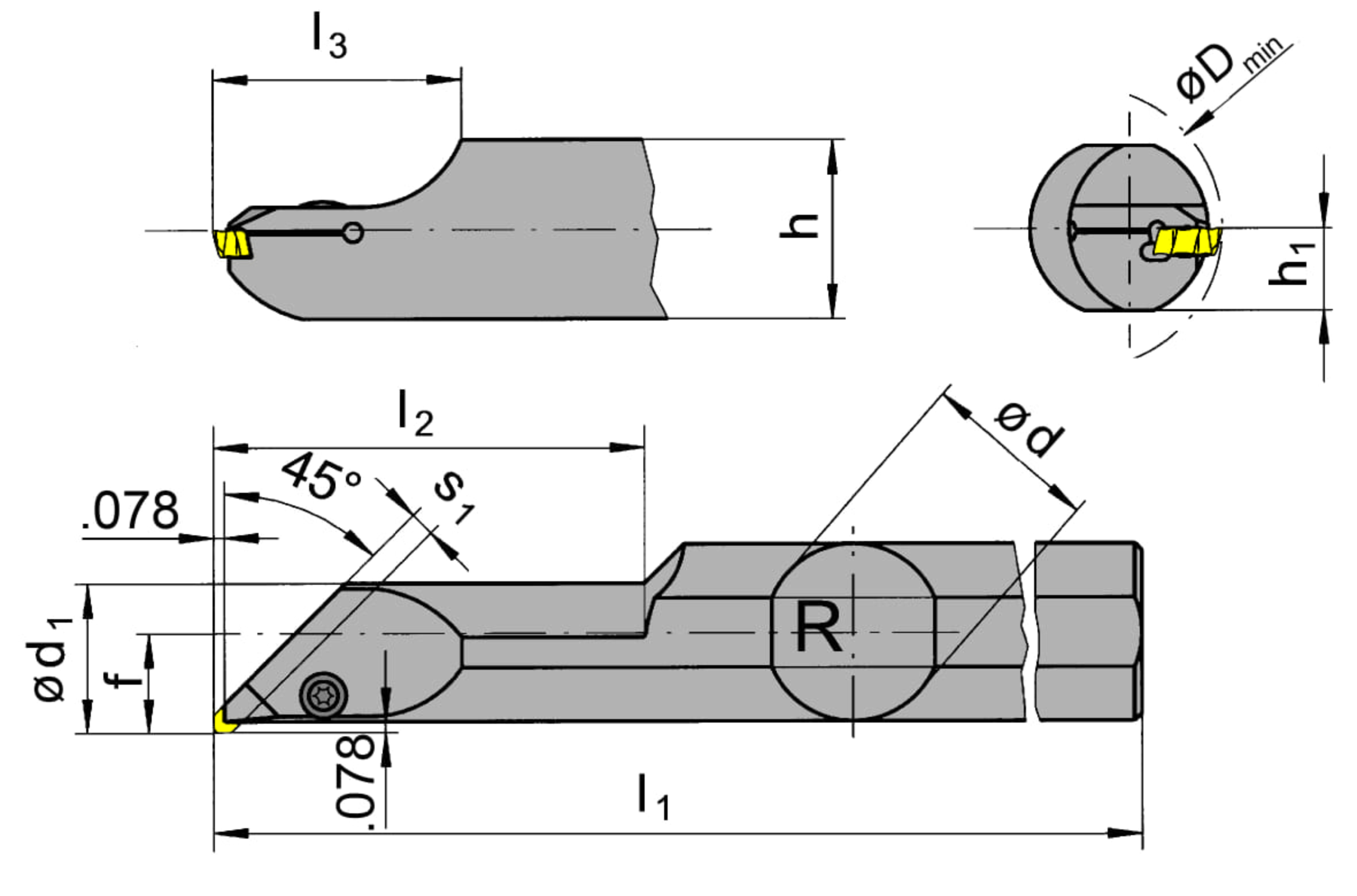

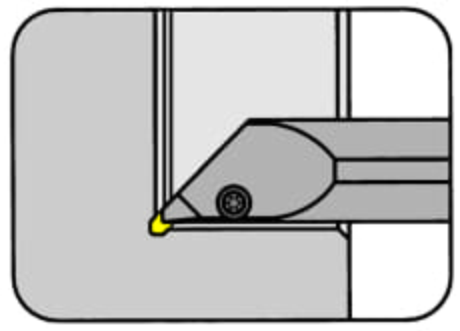

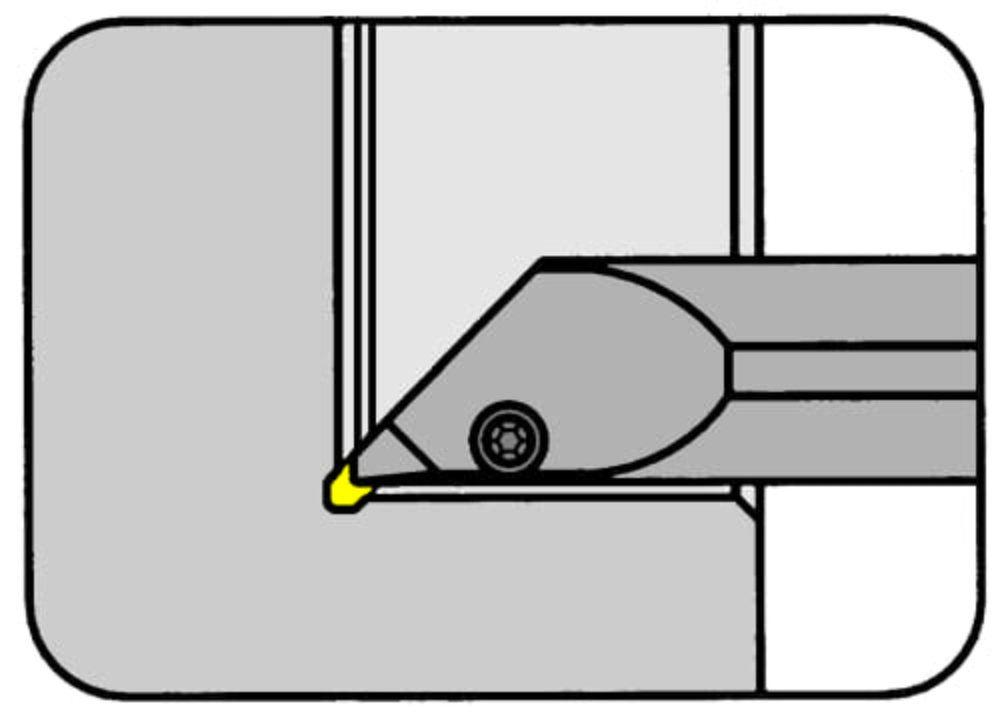

HORN Toolholders RU245.1000.02 for Turning
Extension length (l2)
3.167
˝
80.43
mm
Dimension location face insert to face holder (s1)
0.098
˝
2.5
mm
Clamping range maximum (Spannbereich)
0.106
˝
2.7
mm
Clamping range minimum (Spannbereich)
0.067
˝
1.7
mm
ISO_CCTWS
HORN217020008N$$$$$
DIN_CCTWS
HORN-217020008N
Katalog_CCTWS
21702
DIN_CCTMS
ZYL10002325
ISO_CCTMS
ZYL23S1000$$$$
Plating seat size (Größe)
2
Shank height (h)
0.921
˝
23.4
mm
Total length (including cutting insert) (l1)
10.017
˝
254.43
mm
Head diameter (d1)
1.096
˝
27.83
mm
Minimum drilling diameter (Dmin)
0.984
˝
25
mm
Clamping, shank diameter (d)
1
˝
25.4
mm
Peak height (h1)
0.461
˝
11.7
mm
Adjustment dimension (f)
0.596
˝
15.13
mm
Head length top (including cutting edge) (l3)
1.75
˝
44.45
mm
