R105.0150.3.7 MG12
Material number R105015037MG12

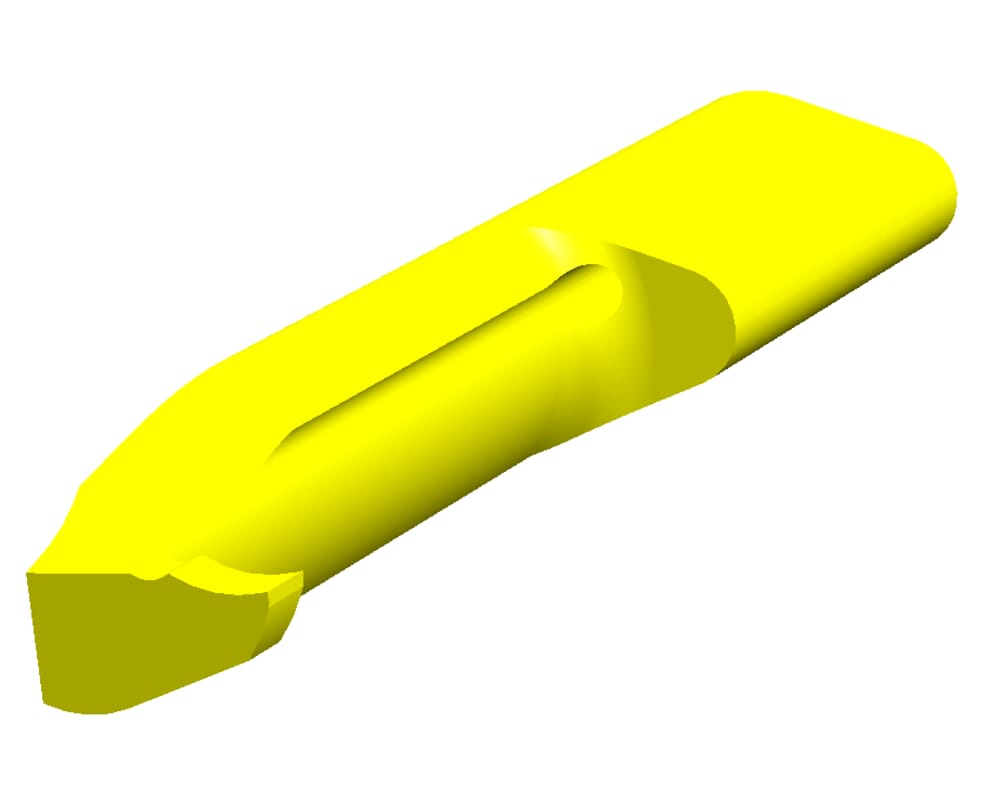

HORN Inserts R105.0150.3.7 MG12 for Turning
Setting range radial (f)
0.157 ˝
4 mm
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Total length (l5)
1.378 ˝
35 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Head size (a)
0.252 ˝
6.4 mm
| Downloads | |
|---|---|
| R105015037_20210630_150159050.STP | Download |
| R105015037_20210626_030013178.DXF | Download |
| Download all files | |
