NU110.1875.08.04 TA45
Material number NU11018750804TA45

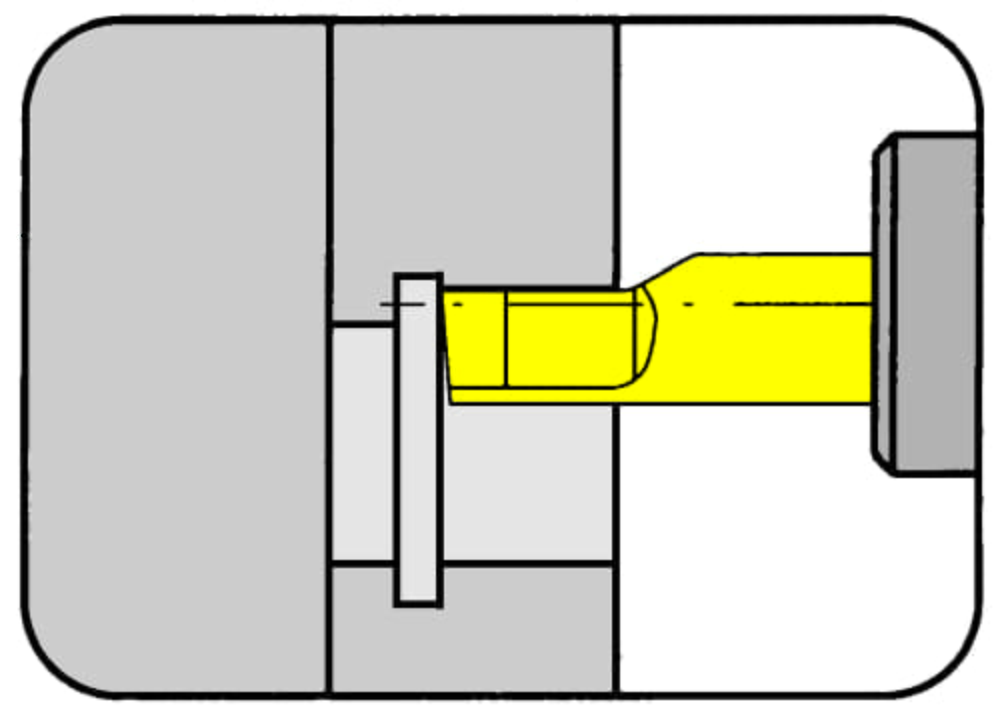

HORN Insert NU110.1875.08.04 TA45 for Broaching
Smallest bore diameter (Dmin)
0.354 ˝
9 mm
tool-application
both
Extension length (l3)
1.339 ˝
34 mm
Total length (l5)
2.362 ˝
60 mm
Effective cutting length (l2)
0.984 ˝
25 mm
Corner radius (mm) (r)
0.008 ˝
0.2 mm
Katalog_SSC
105125
Cutting width (inch) (w)
0.189 ˝
4.79 mm
| Downloads | |
|---|---|
| NU11018750804_20230113_231957096.STP | Download |
| NU11018750804.DXF | Download |
| Download all files | |
