NU105.0937.04.01 TA45
Insert
Material number NU10509370401TA45
HORN Insert NU105.0937.04.01 TA45 for Broaching
Katalog_SSC
105125

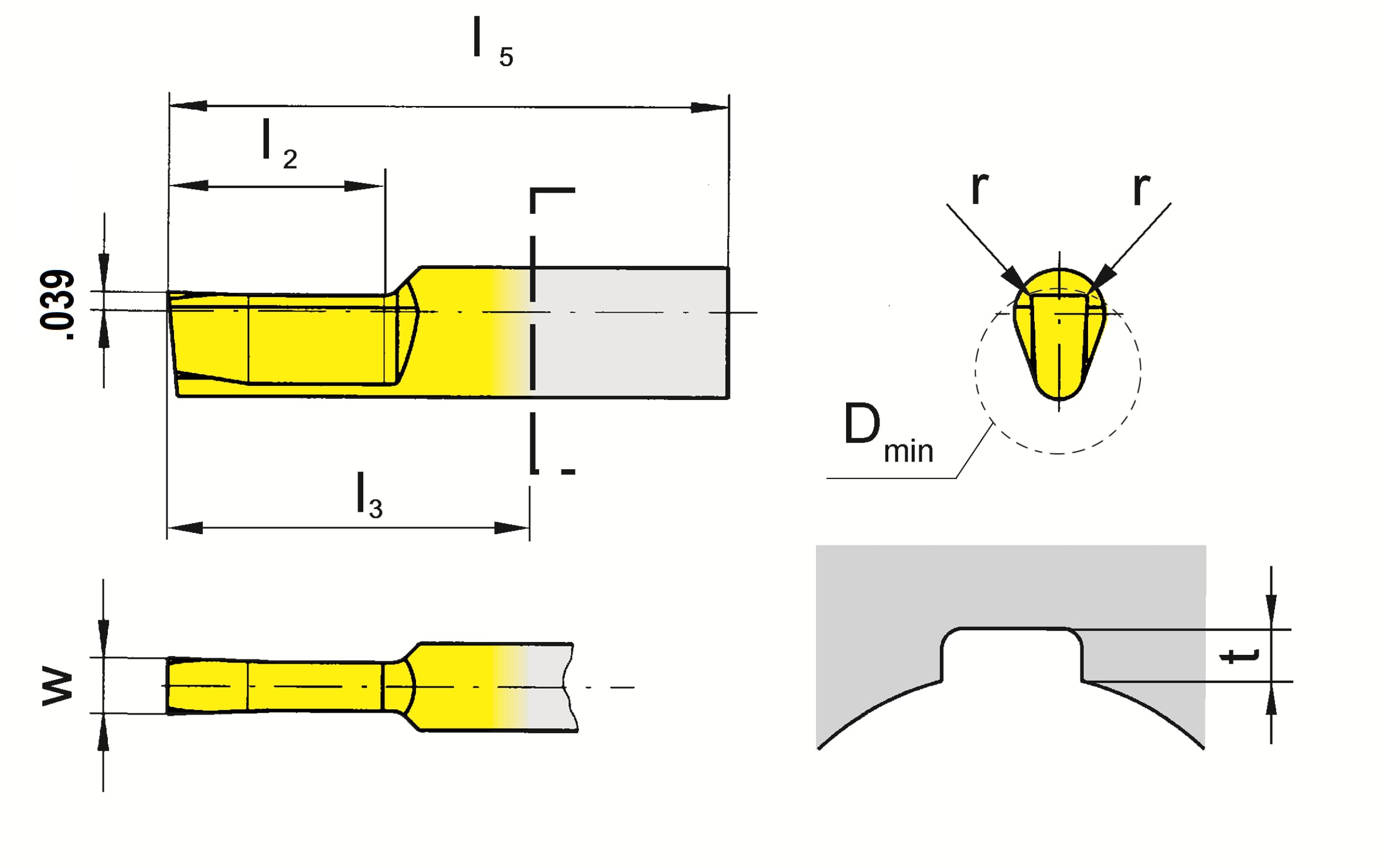

Smallest bore diameter (Dmin)
0.256
˝
6.5
mm
Extension length (l3)
0.709
˝
18
mm
Total length (l5)
1.181
˝
30
mm
Effective cutting length (l2)
0.472
˝
12
mm
Corner radius (r)
0.004
˝
0.1
mm
DIN_SSC
HORN-10512585N
ISO_SSC
HORN105125$85N$$$$$
Cutting width (w)
0.095
˝
2.41
mm
| Downloads | |
|---|---|
| NU10509370401_20230113_231539203.STP | Download |
| NU10509370401.DXF | Download |
| Download all files | |
