MU406.100.D075.2.04A

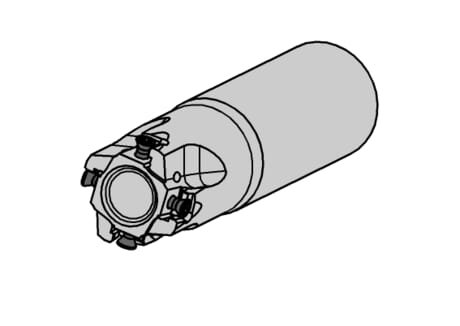

Tangential milling cutters shank
Material number MU406100D075204A
HORN Tangential milling cutters shank MU406.100.D075.2.04A for Milling
DIN_CCTMS
ZYL07500135
ISO_CCTMS
ZYL01R7500h$06
Number of teeth (Z)
4
St.

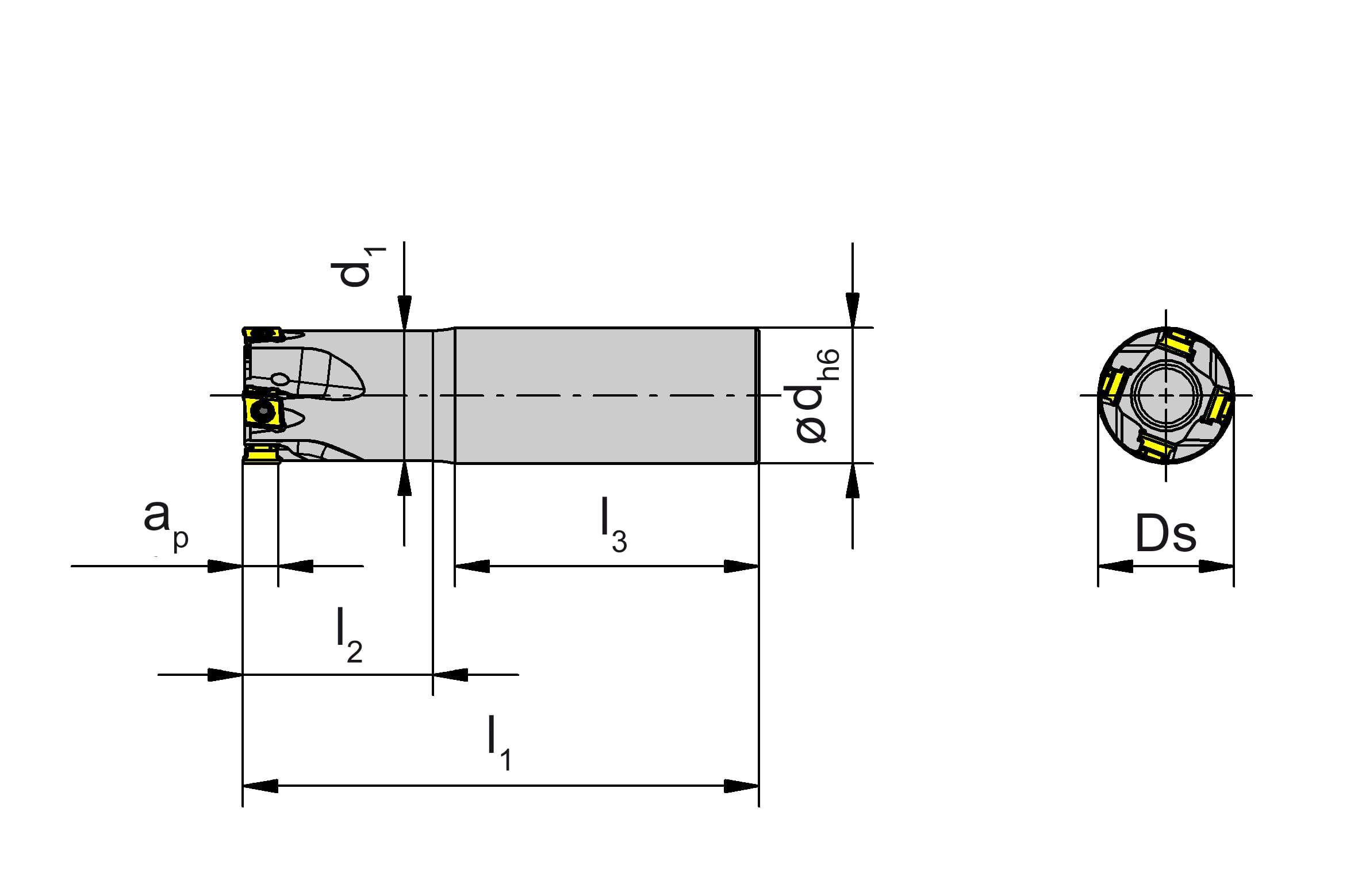

Tension length (l3)
1.378
˝
35
mm
Working length, Neck length, Extension length (l2)
1.102
˝
28
mm
Total length insert (l1)
2.5
˝
63.5
mm
Neck diameter (d1)
0.961
˝
24.4
mm
Cutting depth (ap)
0.248
˝
6.3
mm
Katalog_CCTWS
40600R
DIN_CCTWS
HORN-406003R
ISO_CCTWS
HORN40600$$$3R$$$$$
Cutting diameter (Ds)
1
˝
25.4
mm
Shank diameter (d)
0.75
˝
19.05
mm
| Downloads | |
|---|---|
| MU406100D075204A_20240117_101905582.STP | Download |
| MU406100D075204A.DXF | Download |
| Download all files | |
