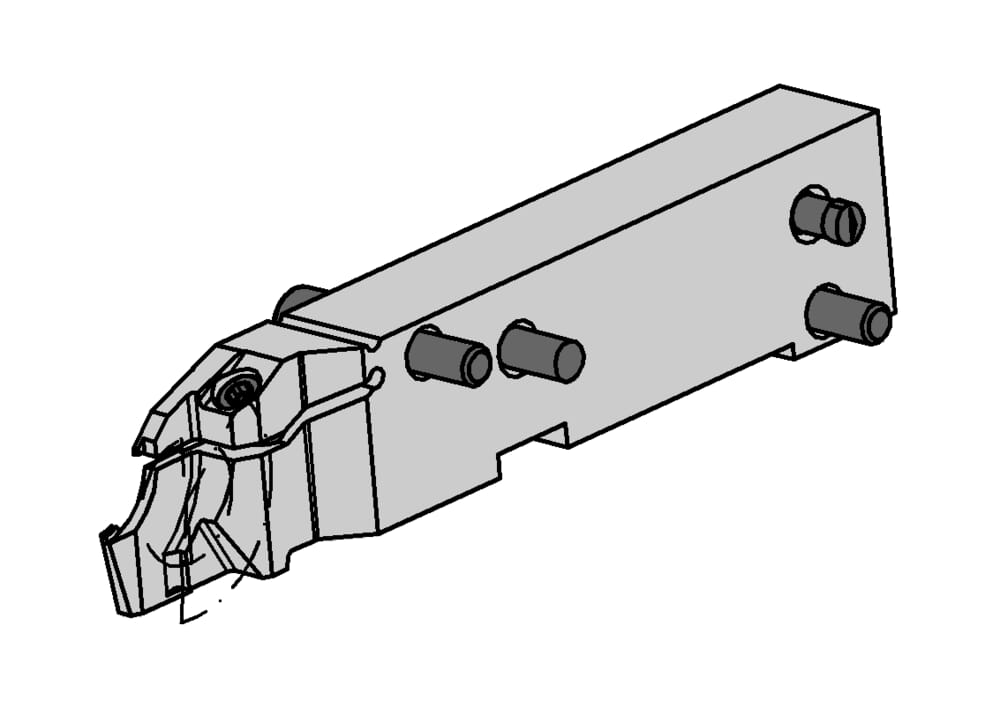

L368071008_PICTO.TIF

L368.0710.11

ABSTECHEN_20210506_153854505.EPS

AUSSEN_EINSTECHEN.EPS

Material number L368071011

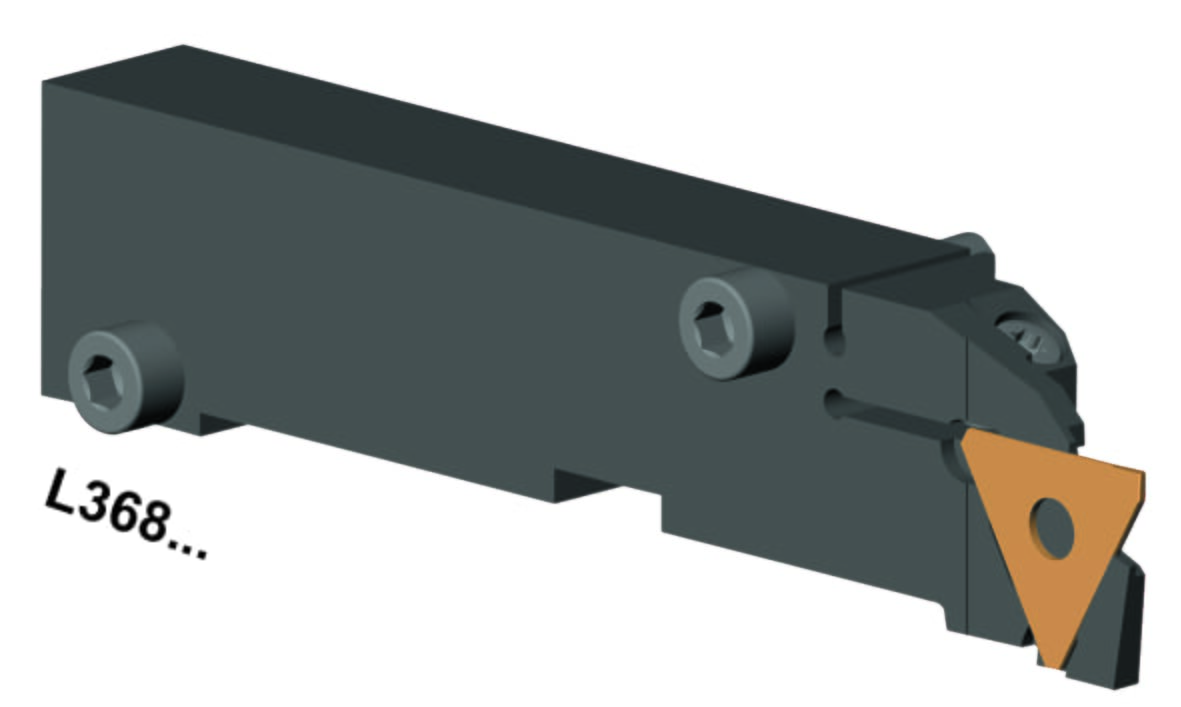

HORN Toolholders L368.0710.11 for Turning

Cutting data and technical instructions

Largest cutting width (wmax)

0.059 ˝

1.5 mm

Smallest cutting width (wmin)

0.059 ˝

1.5 mm

Maximum depth of groove (tmax)

0.315 ˝

8 mm

machining-direction-sap

left

tool-application

static

Downloads
L368_0710_11_20171121_210114539.STP	Download
L368071011.DXF	Download
Download all files
