L220.2525.2.K2.IK
Material number L22025252K2IK

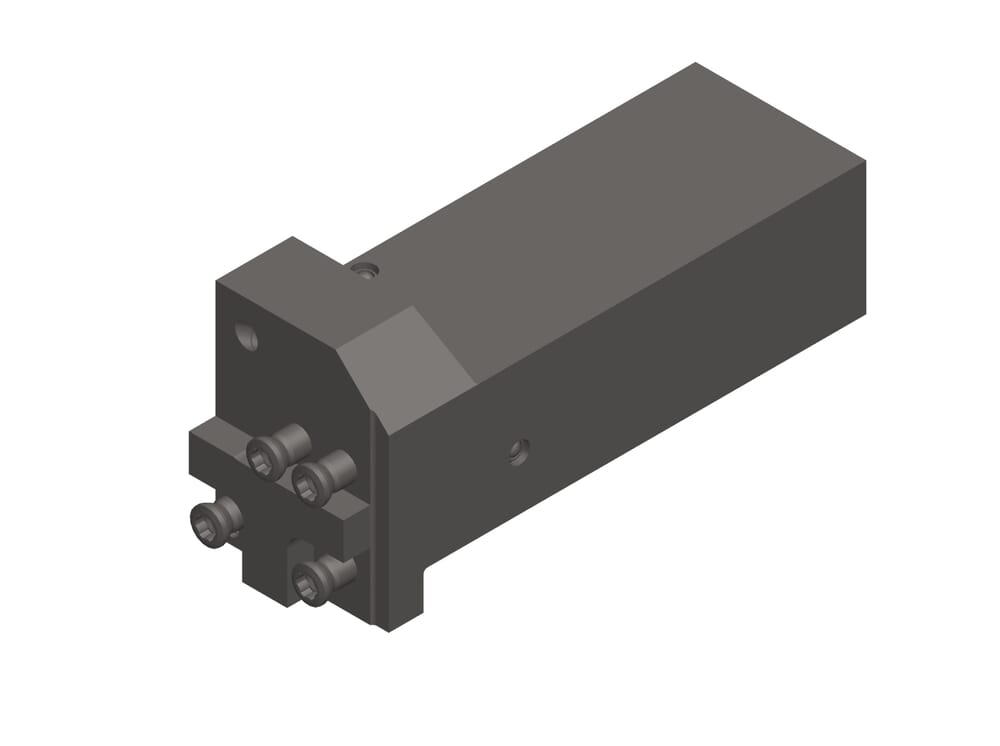

HORN base support L220.2525.2.K2.IK for Turning
machining-direction-sap
left
tool-application
static
Length overall formula (l)
l1+f3
Katalog_CCTWS
220001
Shank length (l2)
3.307 ˝
84 mm
Cutting insert width (l1)
3.583 ˝
91 mm
Peak height (h1)
1.26 ˝
32 mm
Head length stop (b)
0.984 ˝
25 mm
Shank height (b2)
0.984 ˝
25 mm
Adjustment dimension (b1)
1.26 ˝
32 mm
| Downloads | |
|---|---|
| L22025252K2IK_20210630_115549024.STP | Download |
| L22025252K2IK_20210628_001224310.DXF | Download |
| Download all files | |
