L105.1809.01.1.2 TH35
Material number L10518090112TH35

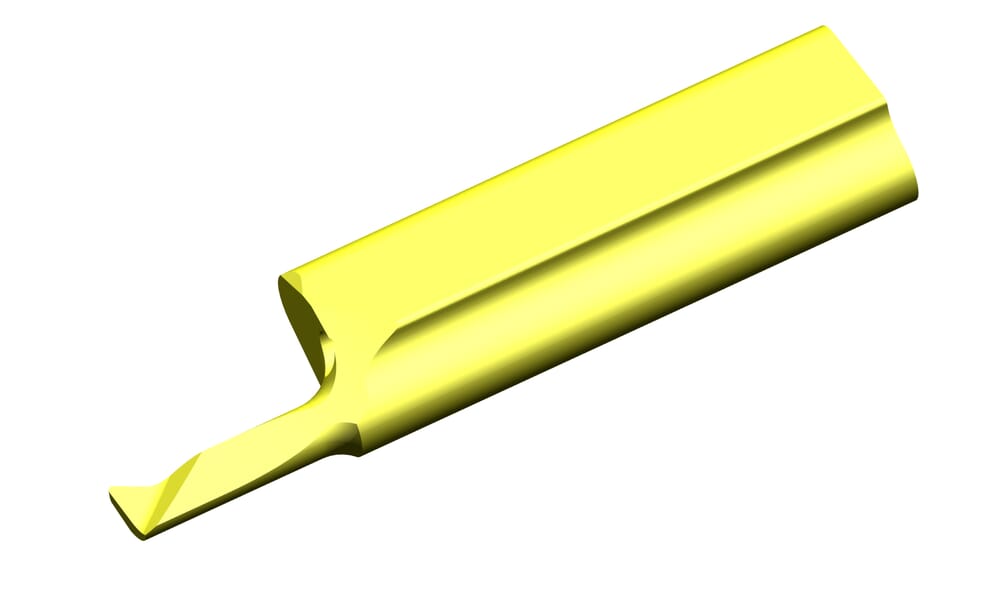

HORN Insert L105.1809.01.1.2 TH35 for Turning

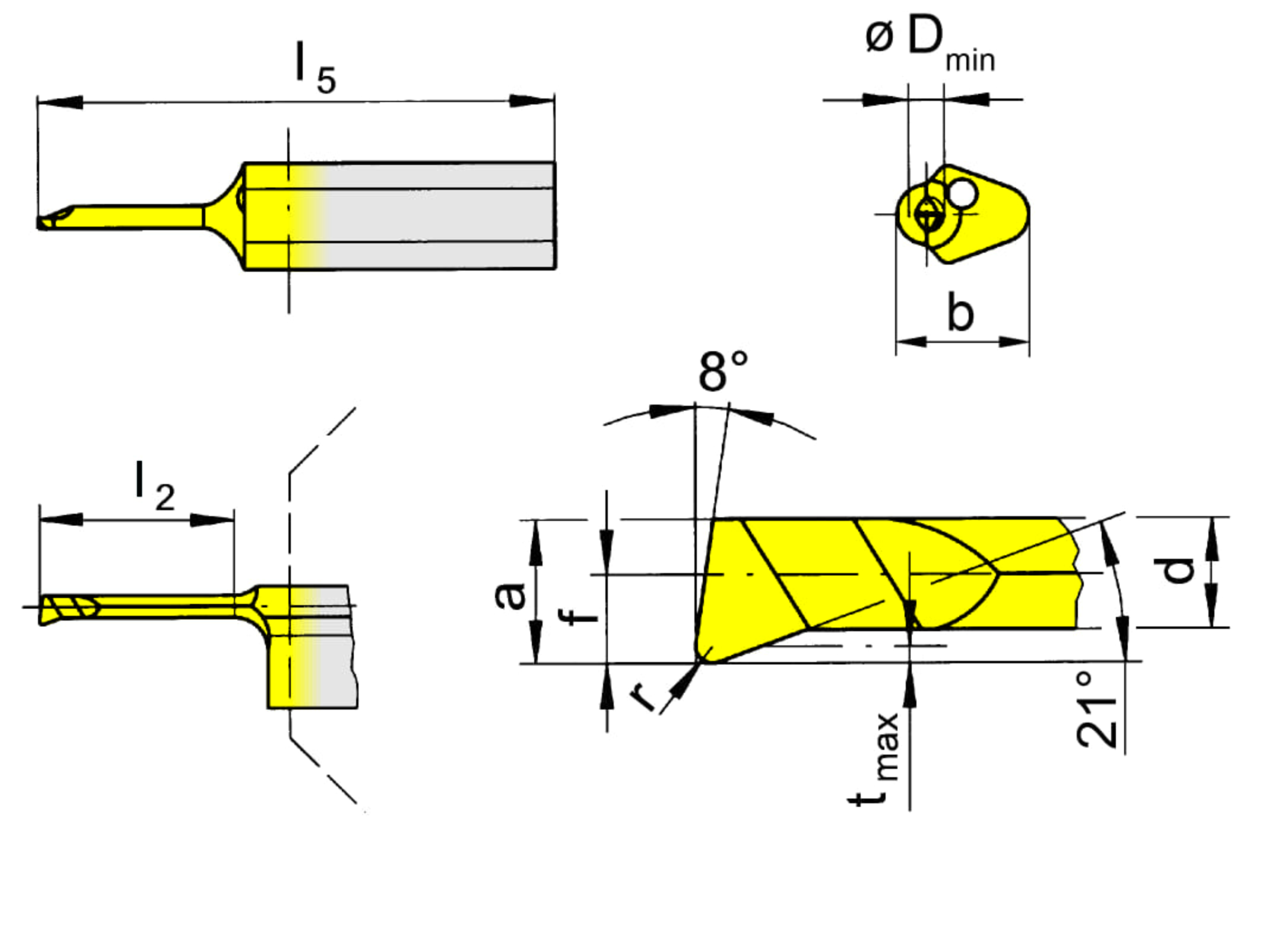

Neck diameter (d)
0.063 ˝
1.6 mm

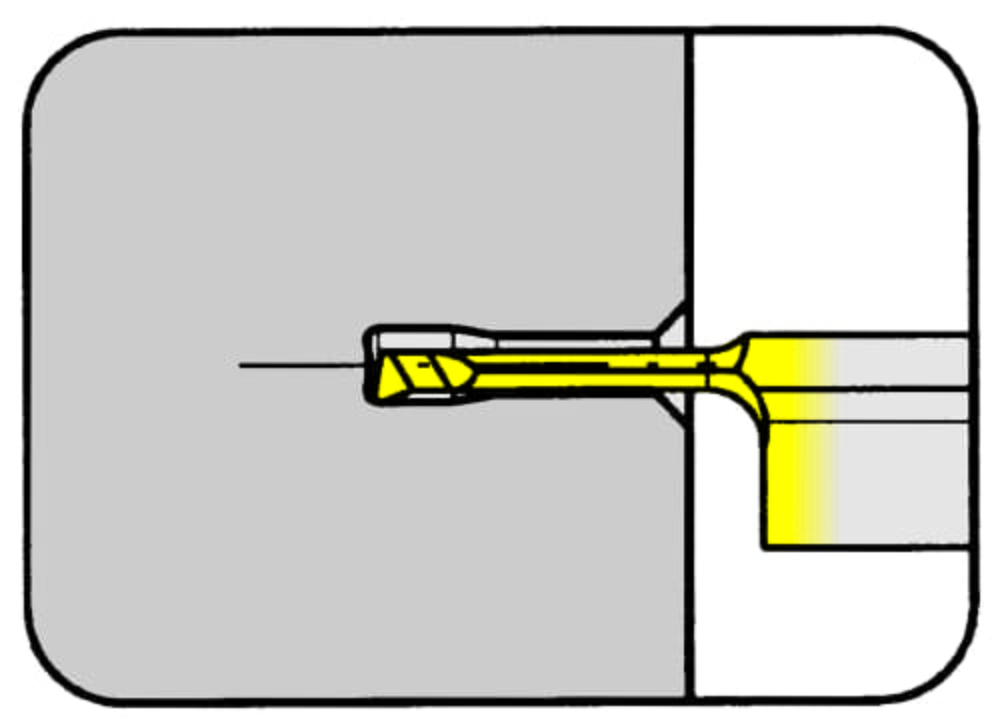

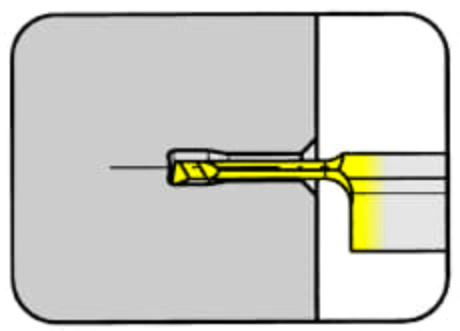

tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
Total length (l5)
0.984 ˝
25 mm
Setting range radial (f)
0.039 ˝
1 mm
Neck length (l2)
0.354 ˝
9 mm
Katalog_SSC
105123
Top radius (r)
0.004 ˝
0.1 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.075 ˝
1.9 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L10518090112.DXF | Download |
| Download all files | |
