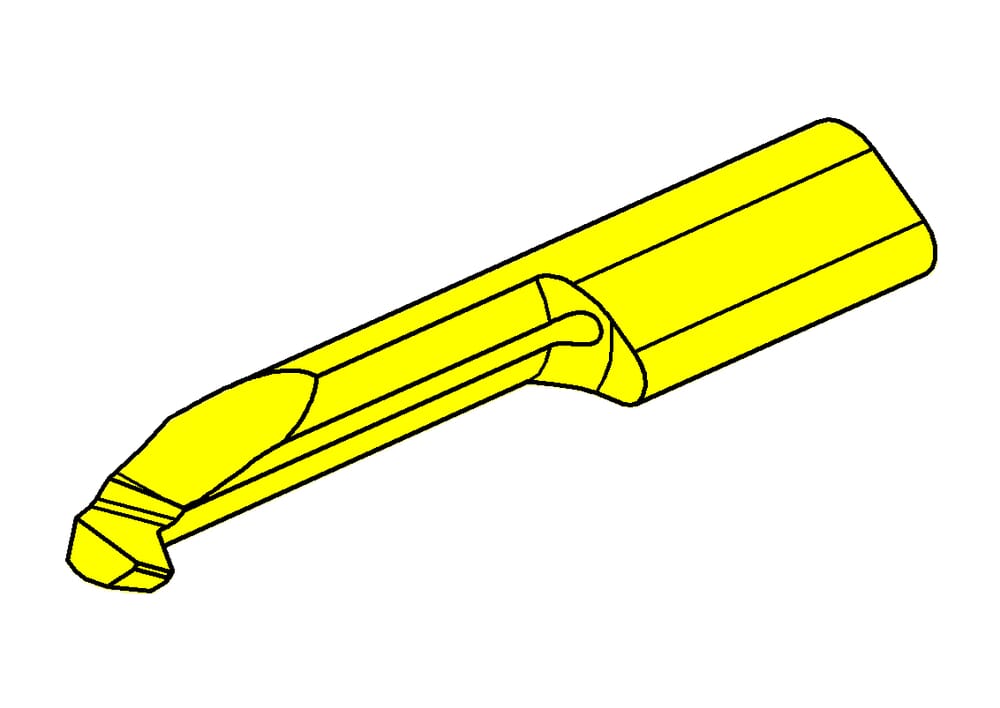

R105324024_PICTO.TIF

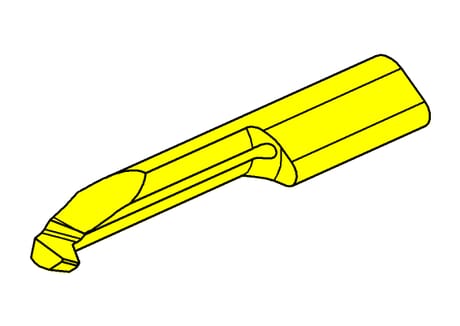

R105324024_PICTO.TIF L105162026.TIF

L105.1620.3.6 EG35

GEWINDE_UN.EPS IK_GENERELL.EPS GEWINDE_TEILPROFIL.EPS GEWINDE_INNEN.EPS

Material number L105162036EG35

HORN Inserts L105.1620.3.6 EG35 for Gewinden

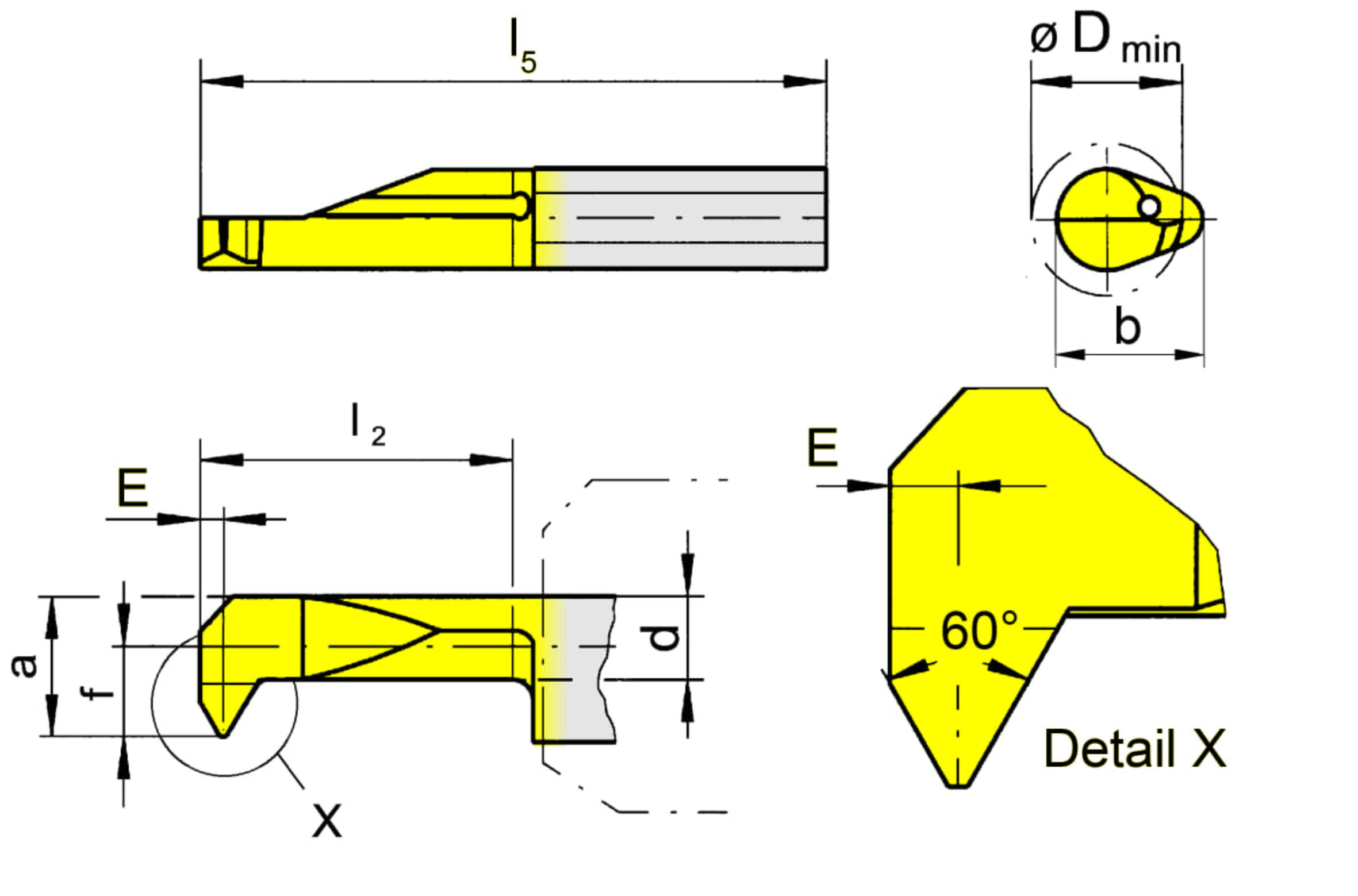

Cutting data and technical instructions

Setting length (E)
0.028 ˝
0.7 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Cutting insert width (a)
0.224 ˝
5.7 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.378 ˝
35 mm
Downloads
L105_2428_2_6_20251016_144303267.STP Download
Download all files
