L105.0200.3.7 MG12
Material number L105020037MG12

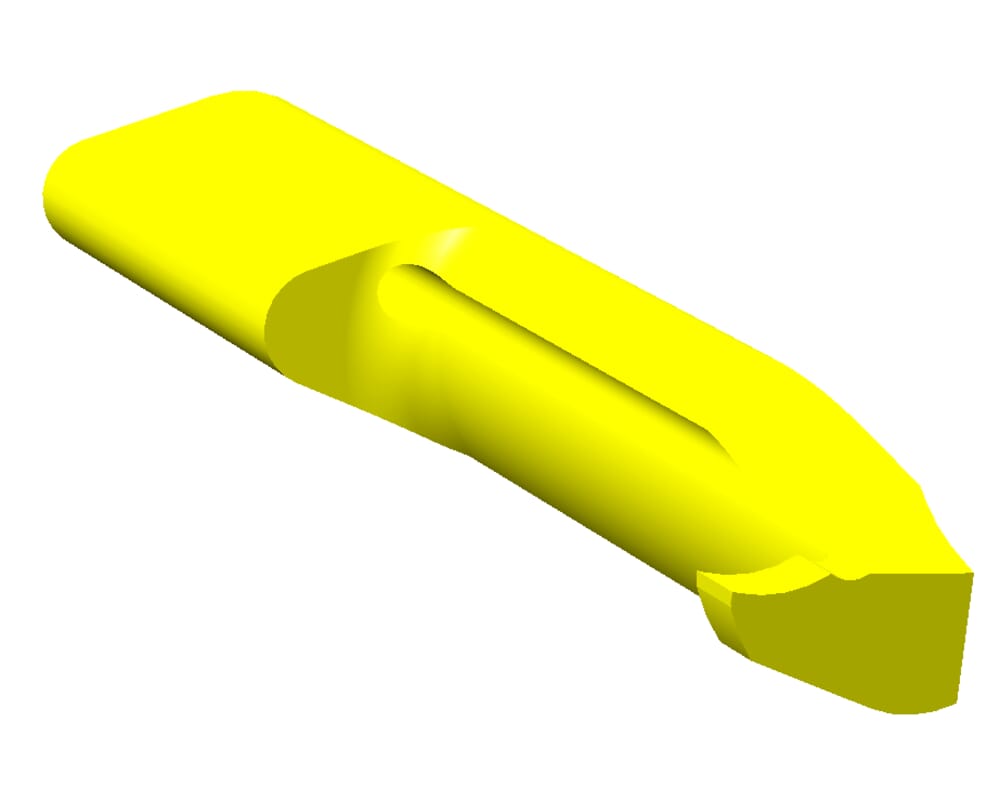

HORN Inserts L105.0200.3.7 MG12 for Turning
Setting range radial (f)
0.157 ˝
4 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Total length (l5)
1.378 ˝
35 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Head size (a)
0.252 ˝
6.4 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105020037.DXF | Download |
| Download all files | |
