L105.0100.2.6 TN35
Material number L105010026TN35

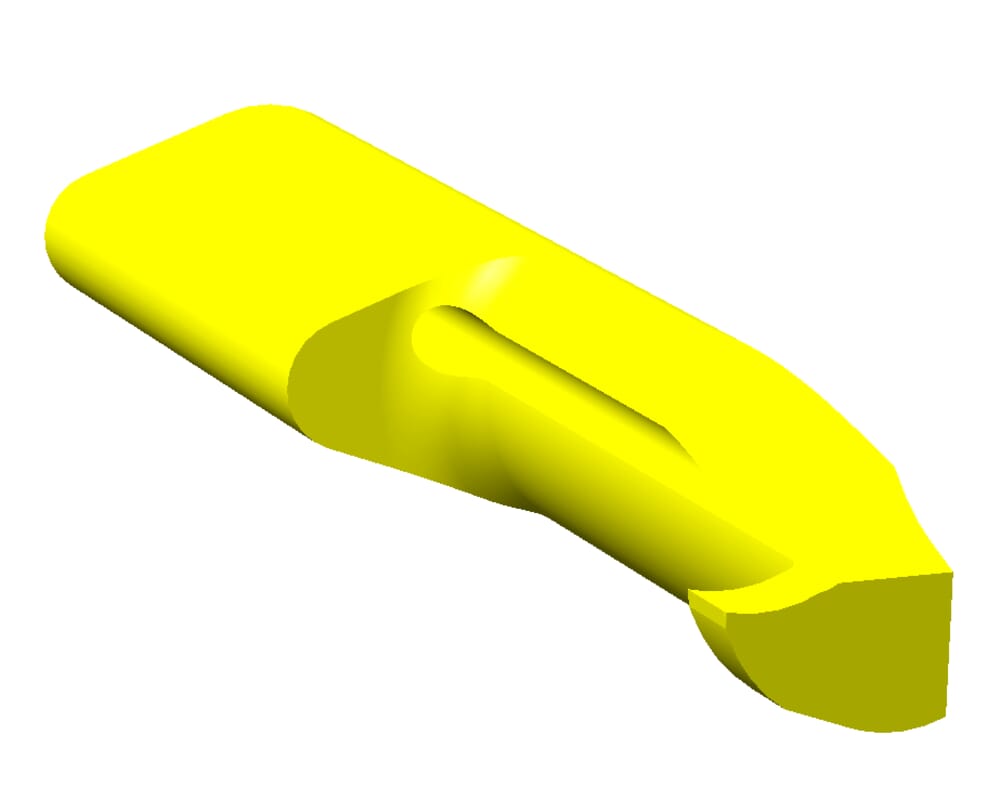

HORN Inserts L105.0100.2.6 TN35 for Turning
Setting range radial (f)
0.13 ˝
3.3 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
1.181 ˝
30 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Head size (a)
0.224 ˝
5.7 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105010026.DXF | Download |
| Download all files | |
