L105.0005.3.7 EG35
Insert
Material number L105000537EG35

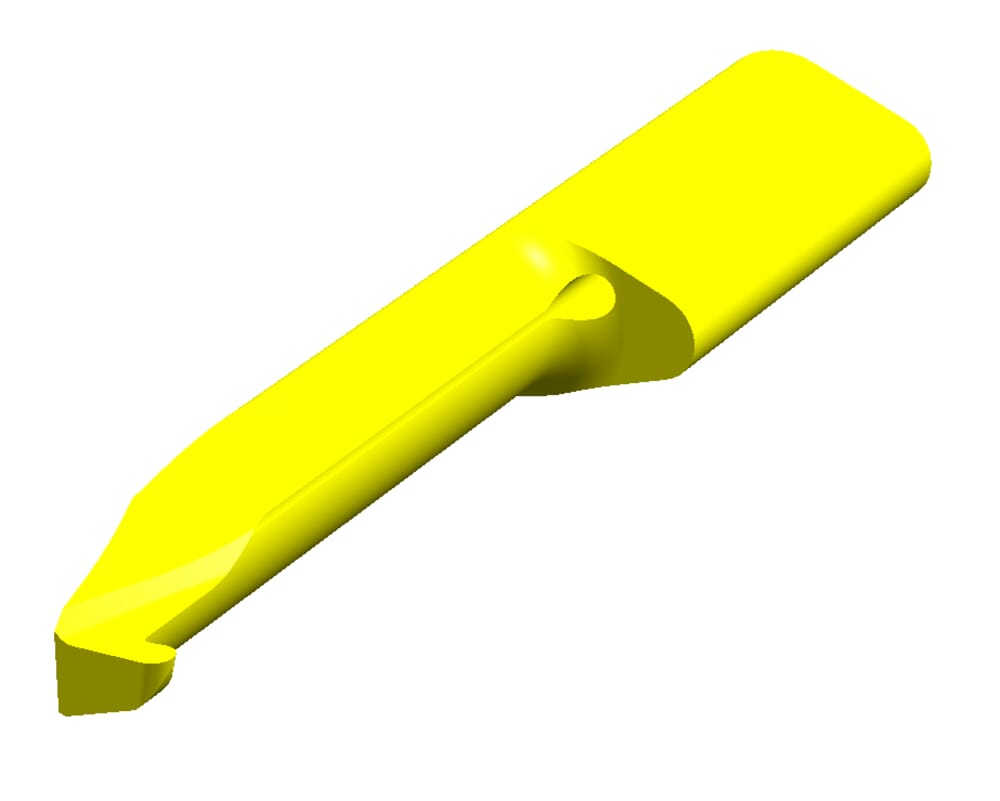

HORN Insert L105.0005.3.7 EG35 for Turning
Smallest bore diameter (Dmin)
0.276
˝
7
mm
Total length (l5)
1.378
˝
35
mm
Setting range radial (f)
0.157
˝
4
mm
Neck diameter (d)
0.146
˝
3.7
mm
Width of groove (w)
0.039
˝
1
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Full radius (r)
0.02
˝
0.5
mm
Width of blank (b)
0.276
˝
7
mm
Maximum depth of groove (tmax)
0.098
˝
2.5
mm
Head size (a)
0.252
˝
6.4
mm
Neck length (l2)
0.787
˝
20
mm
| Downloads | |
|---|---|
| L105000537_20230112_211911183.STP | Download |
| L105000537.DXF | Download |
| Download all files | |
