DCN.3.30.10.00.1.06 AN25

Material number DCN3301000106AN25

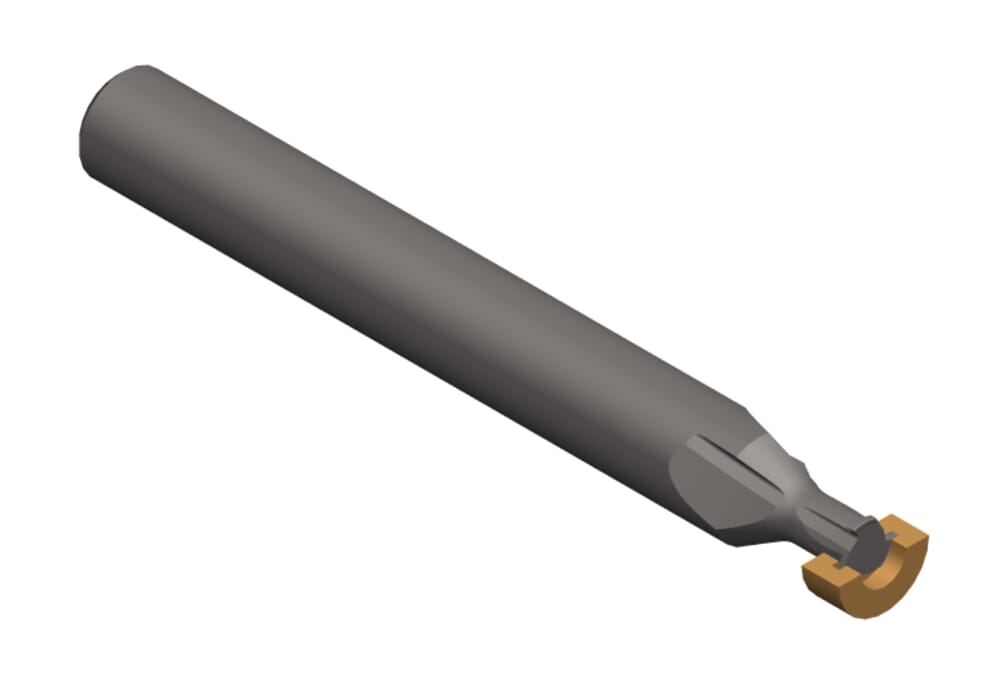

HORN DC groove mill cutter DCN.3.30.10.00.1.06 AN25 for Milling

Cutting data and technical instructions

tool-application

rotating

Total length (l1)

1.969 ˝

50 mm

Maximum milling depth/ depth of groove (tmax)

0.016 ˝

0.4 mm

Neck diameter (d3)

0.079 ˝

2 mm

Shank diameter (d2)

0.236 ˝

6 mm

Shank, clamping length (l4)

1.417 ˝

36 mm

Width of groove (inch) (w)

0.039 ˝

1 mm

Cutting diameter (d1)

0.118 ˝

3 mm

Neck length (l3)

0.118 ˝

3 mm
