DCGW070201NH0_PICTO.TIF
DCGW070201NH0_PICTO.TIF DCGW070201NH0.TIF

DCGW070201N.H0 HD08

PLANDREHEN.EPS GEOMETRIE_H0.EPS WERKSTOFF_N.EPS WERKSTOFF_O1.EPS INNEN_BOHRUNG_KONTUR_AUSDREHEN.EPS INNEN_BOHRUNG_AUSDREHEN.EPS AUSSEN_LAENGSDREHEN.EPS AUSSEN_KOPIERDREHEN.EPS CVD_D.EPS

Material number DCGW070201NH0HD08

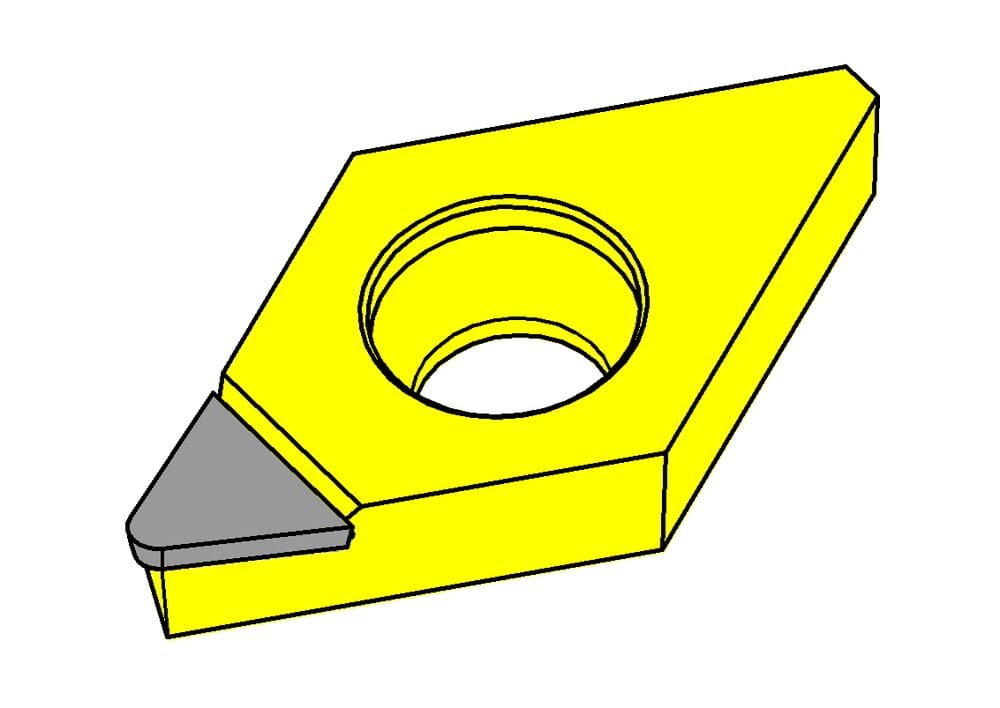

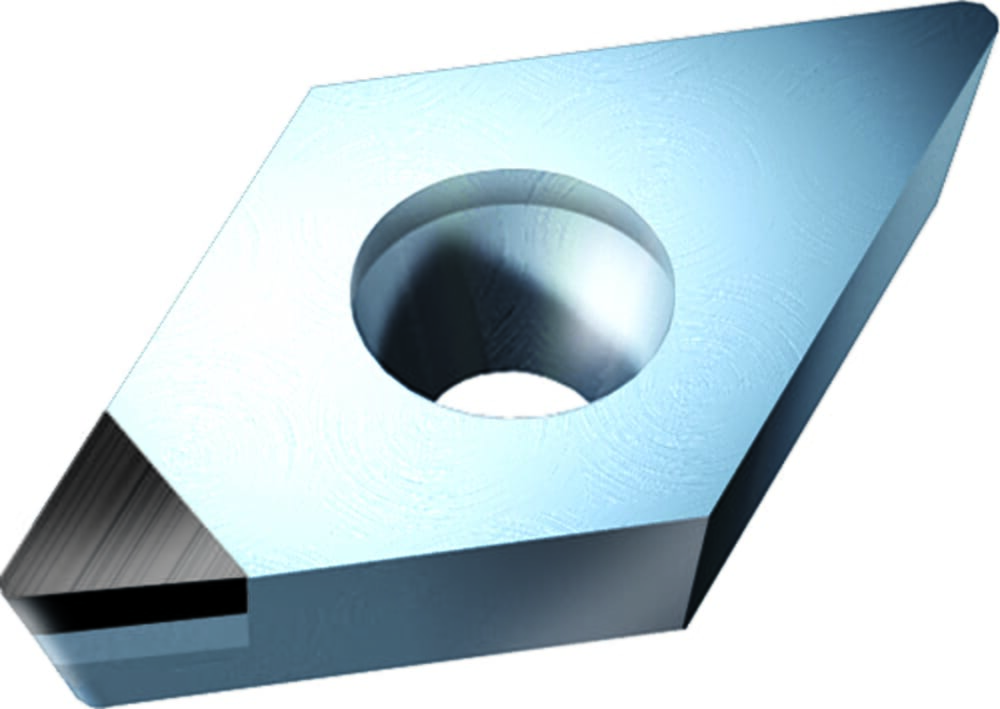

HORN Insert DCGW070201N.H0 HD08 for Turning

Cutting data and technical instructions

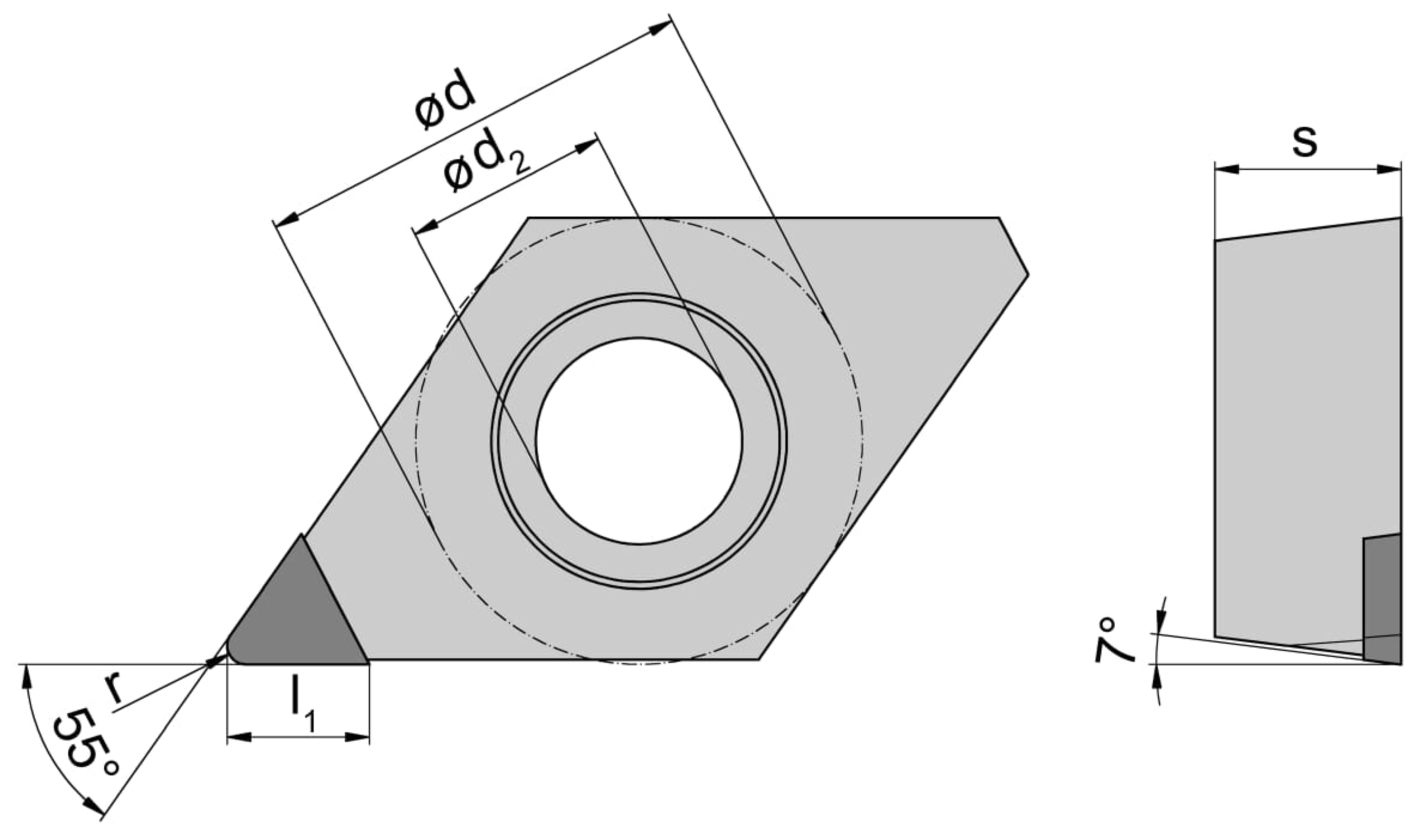

Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
tool-application
static
Inner circle diameter (d)
0.25 ˝
6.35 mm
Effective cutting length (l1)
0.118 ˝
3 mm
Bore diameter (d2)
0.11 ˝
2.8 mm
Corner radius (r)
0.004 ˝
0.1 mm
