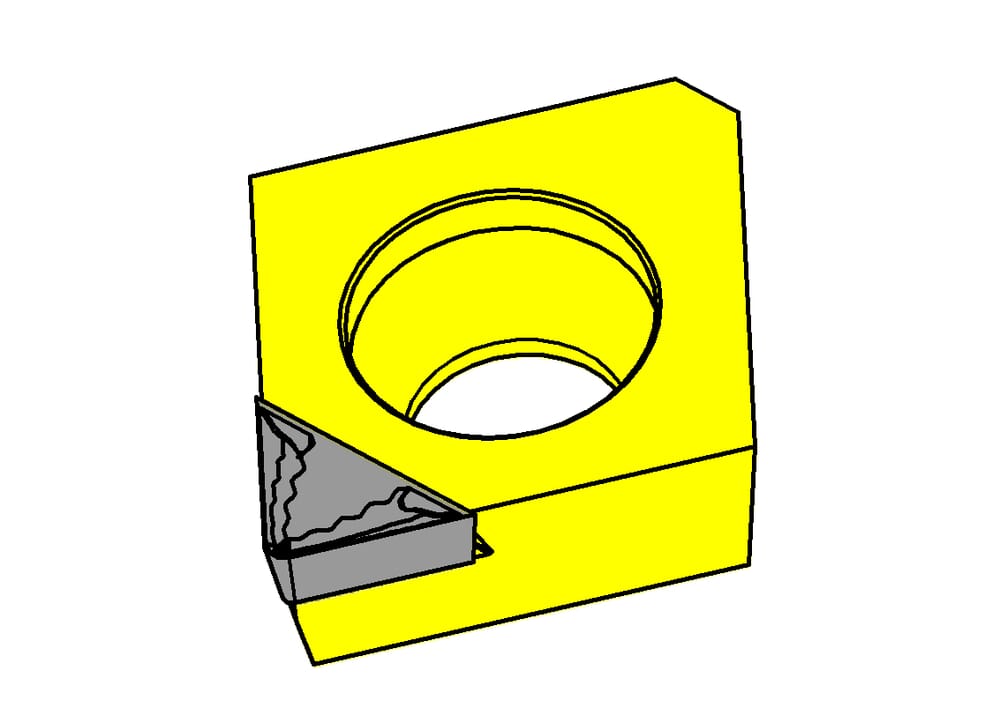

CCGT09T304NHS_PICTO.TIF

CCGT09T304NHS_PICTO.TIF

CCGT09T301NHS.TIF

CCGT09T301N.HS HD08

GEOMETRIE_HS.EPS

WERKSTOFF_N.EPS

INNEN_BOHRUNG_AUSDREHEN.EPS

AUSSEN_LAENGSDREHEN.EPS

AUSSEN_KOPIERDREHEN.EPS

Material number CCGT09T301NHSHD08

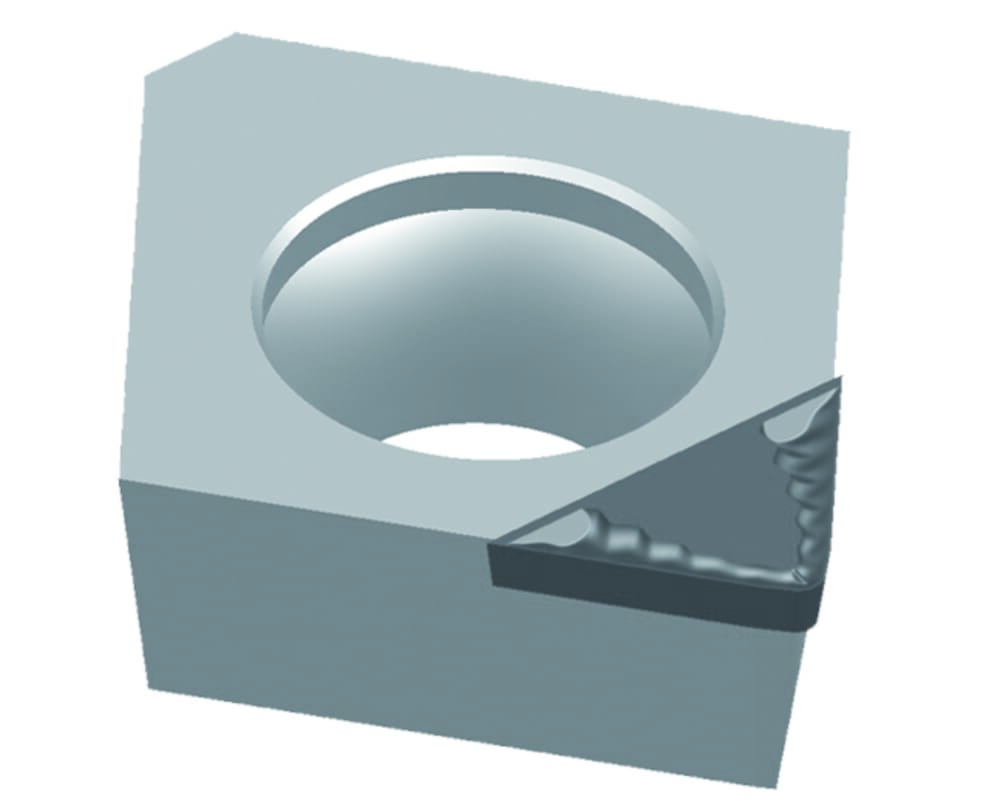

HORN Insert CCGT09T301N.HS HD08 for Turning

Cutting data and technical instructions

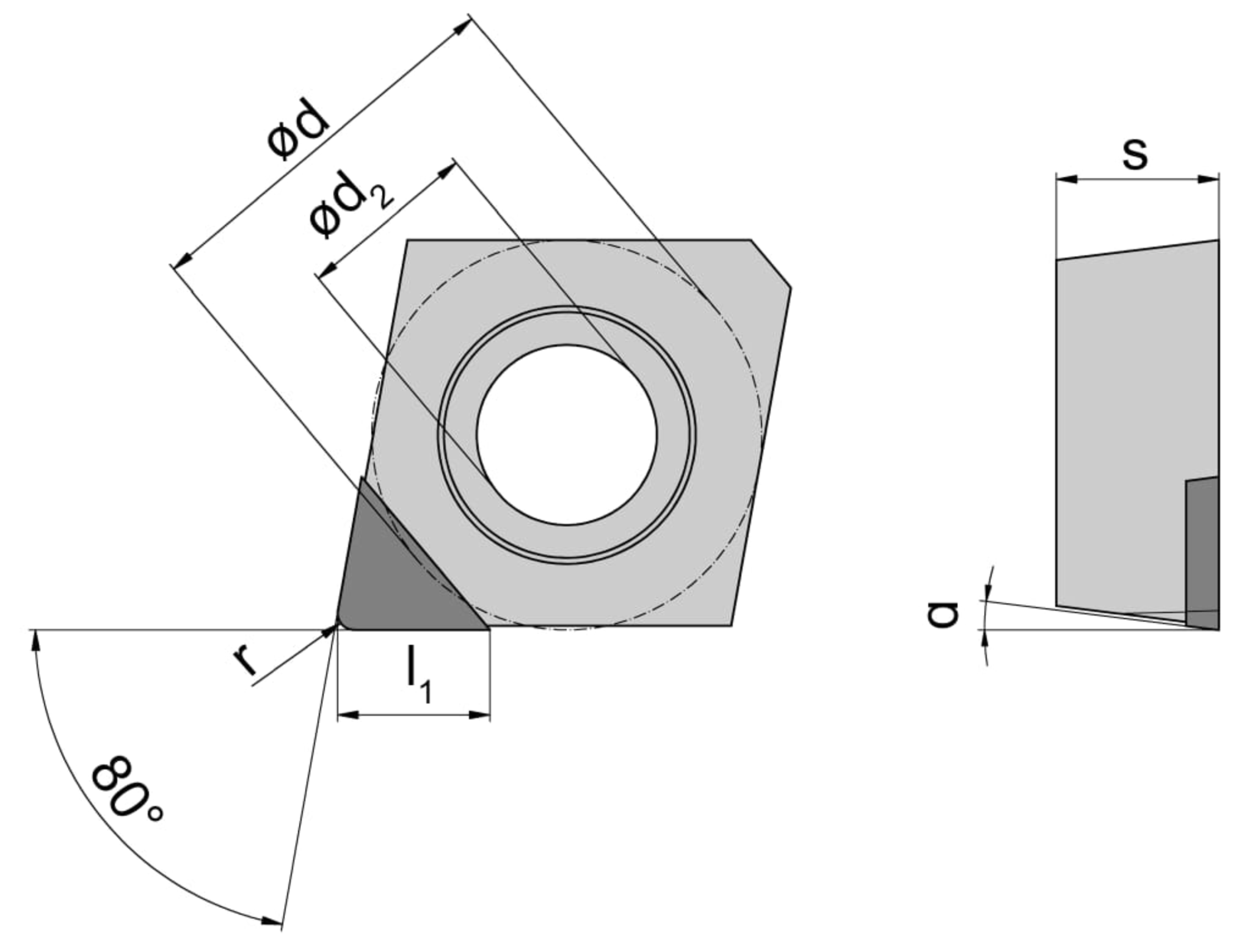

Cutting insert height, Cutting insert thickness (s)

0.156 ˝

3.97 mm

tool-application

static

Inner circle diameter (d)

0.375 ˝

9.525 mm

Effective cutting length (l1)

0.157 ˝

4 mm

Bore diameter (d2)

0.173 ˝

4.4 mm

Corner radius (r)

0.004 ˝

0.1 mm

312.0060.00 TN32

312.0060.00 TN32
