BU116.0625.02
Toolholders
Material number BU116062502

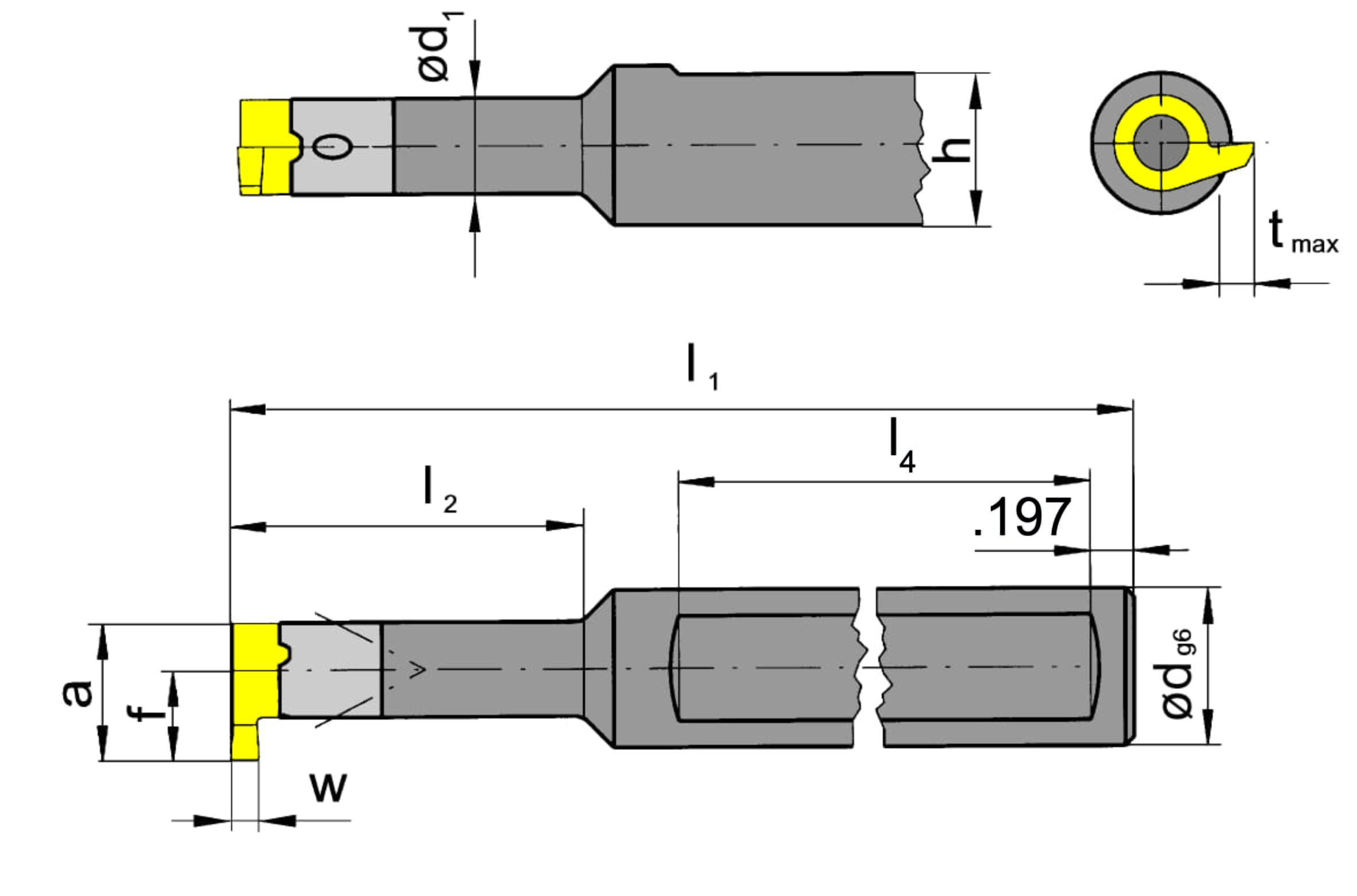

HORN Toolholders BU116.0625.02 for Turning
head-size-imp
0.618
˝
15.697
mm
ISO_CCTMS
ZYL50R6250$$$$
smallest-bore-diameter-imp
0.63
˝
16
mm
Neck diameter (d1)
0.433
˝
11
mm
cutting-width-max-imp
0.157
˝
3.988
mm
DIN_CCTMS
ZYL06255035
Katalog_CCTWS
116110R;116110L
DIN_CCTWS
HORN-11611084R;HORN-11611084L
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
Shank, clamping diameter (d)
0.625
˝
15.875
mm
insertion-depth-max-imp
0.169
˝
4.3
mm
Length of clamping surface(s) (l4)
1.969
˝
50
mm
Height clamping surface(s) (h)
0.586
˝
14.88
mm
Total length (including cutting insert) (l1)
5.118
˝
130
mm
adjustment-dimension-imp
0.402
˝
10.2
mm
Outcropping, neck, working length (l2)
2.205
˝
56
mm
