BU114.0500.01
Toolholders
Material number BU114050001

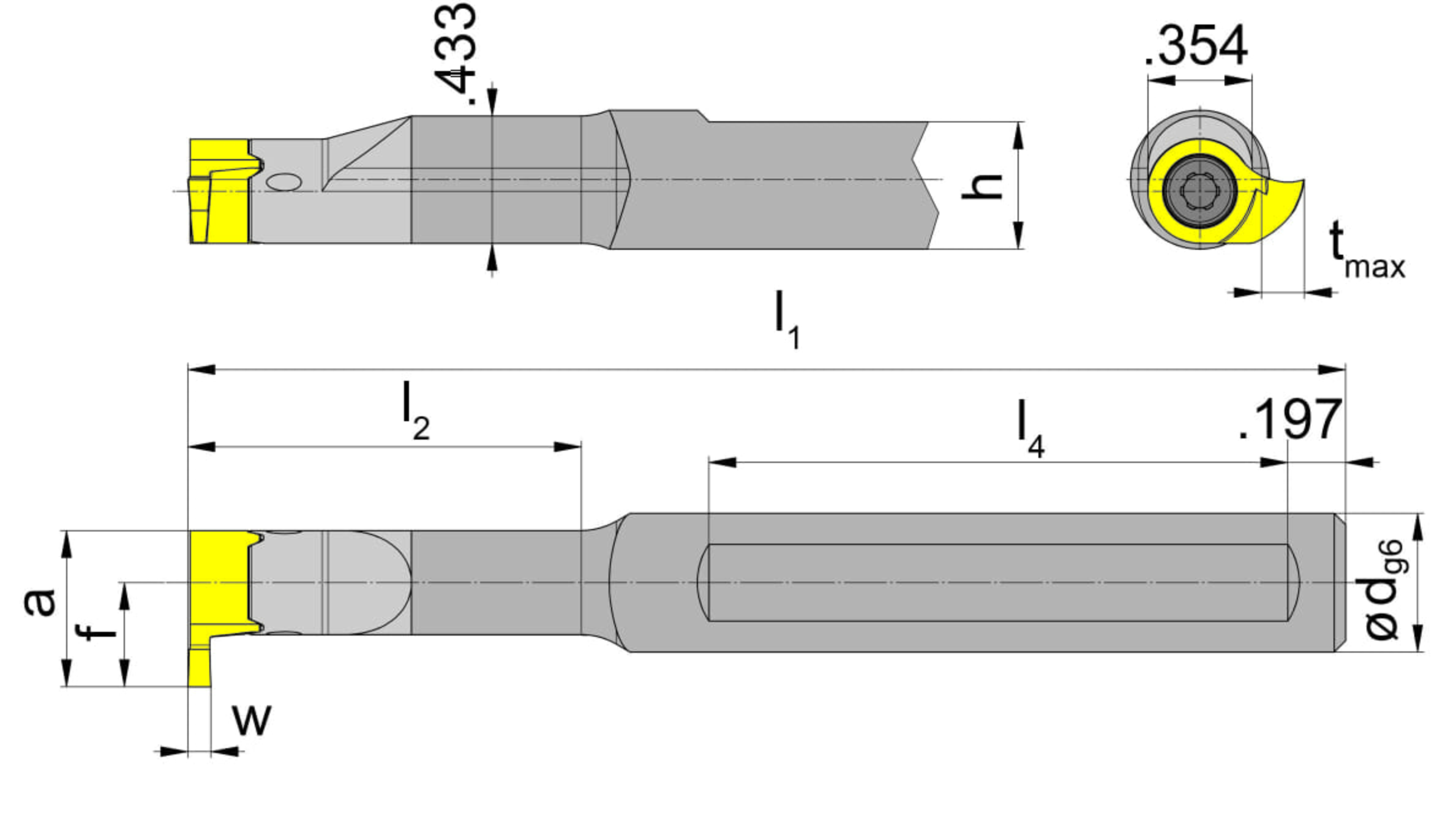

HORN Toolholders BU114.0500.01 for Turning
Total length (including cutting insert) (l1)
3.937
˝
100
mm
ISO_CCTMS
ZYL50G1200$$$$
smallest-bore-diameter-imp
0.551
˝
14
mm
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
114090R;114090L
DIN_CCTWS
HORN-11409084R;HORN-11409084L
ISO_CCTWS
HORN114090$84R$$$$$;HORN114090$84L$$$$$
Shank, clamping diameter (d)
0.5
˝
12.7
mm
Length of clamping surface(s) (l4)
1.969
˝
50
mm
Height clamping surface(s) (h)
0.461
˝
11.7
mm
adjustment-dimension-imp
0.354
˝
9
mm
Outcropping, neck, working length (l2)
1.339
˝
34
mm
