BU111.ST05.00
Steel Toolholders one piece
Material number BU111ST0500

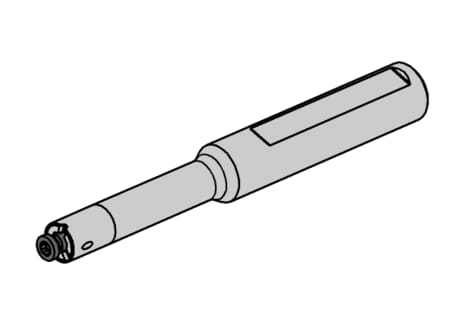

HORN Steel Toolholders one piece BU111.ST05.00 for Turning

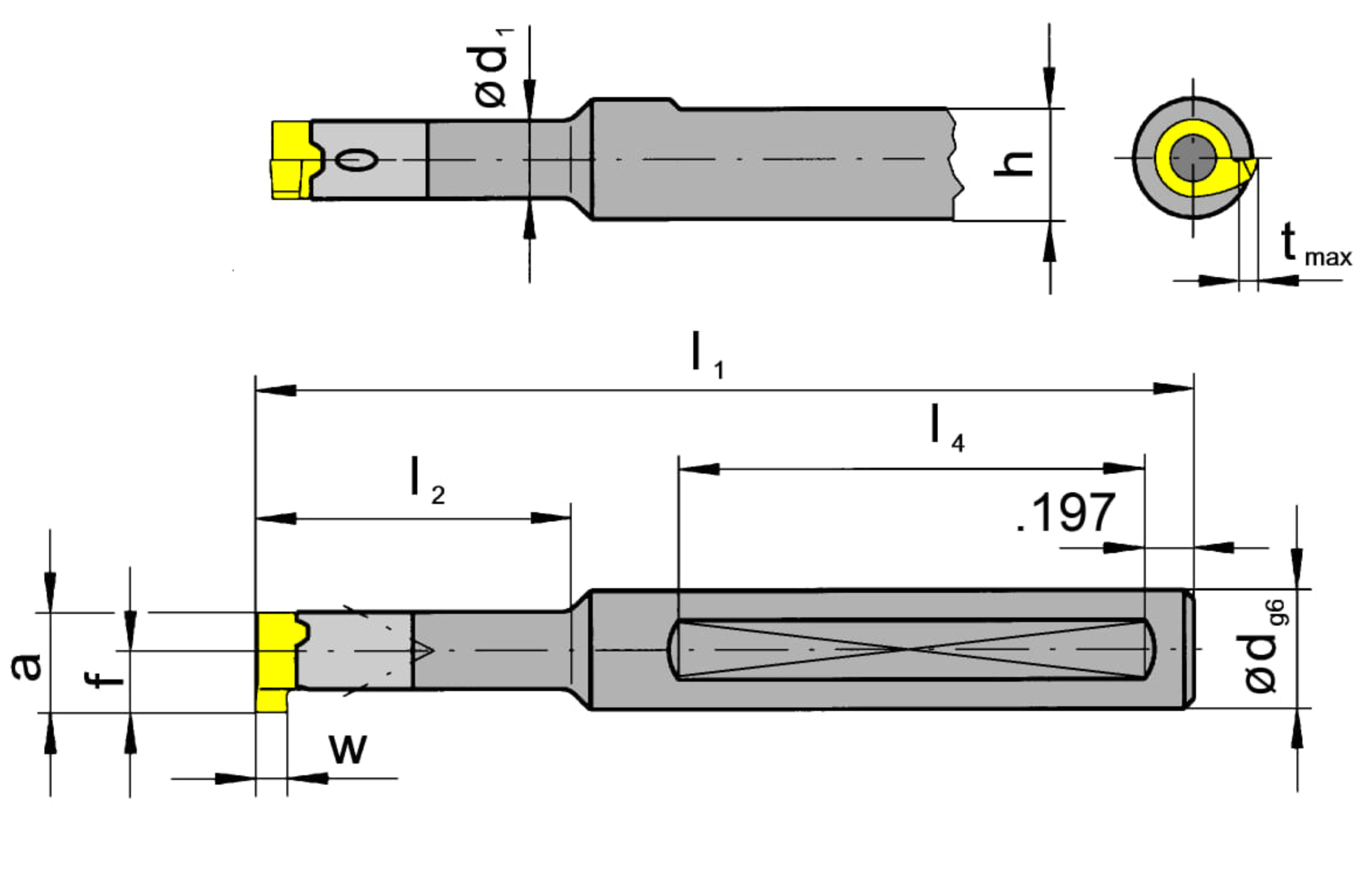

Height clamping surface(s) (h)
0.46
˝
11.68
mm
ISO_CCTMS
ZYL50G1200$$$$
smallest-bore-diameter-imp
0.433
˝
11
mm
Neck diameter (d1)
0.315
˝
8
mm
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
111080R;111080L
DIN_CCTWS
HORN-11108084R;HORN-11108084L
ISO_CCTWS
HORN111080$84R$$$$$;HORN111080$84L$$$$$
Shank, clamping diameter (d)
0.5
˝
12.7
mm
Length of clamping surface(s) (l4)
1.575
˝
40
mm
Total length (including cutting insert) (l1)
2.953
˝
75
mm
adjustment-dimension-imp
0.264
˝
6.7
mm
Outcropping, neck, working length (l2)
0.65
˝
16.5
mm
| Downloads | |
|---|---|
| BU111ST0500_20230112_164340670.STP | Download |
| BU111ST0500.DXF | Download |
| Download all files | |
