BU110.0625.02
Material number BU110062502

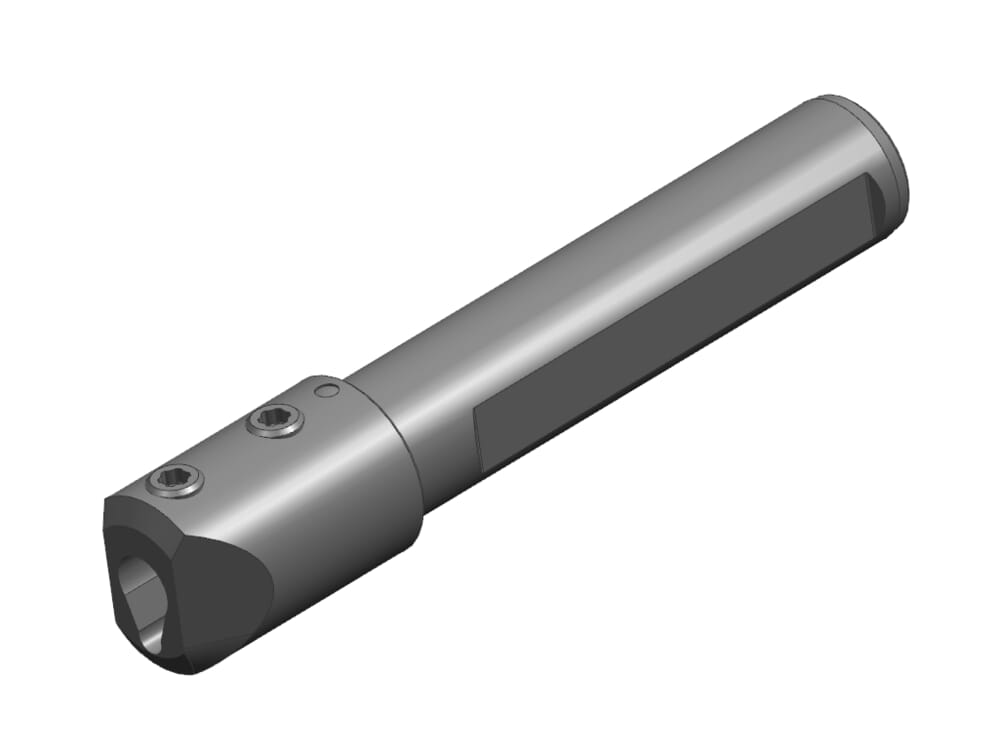

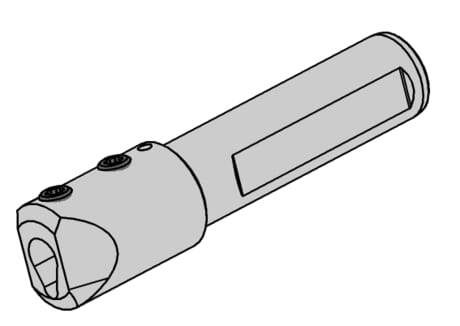

HORN Toolholder BU110.0625.02 for Turning
tool-application
static
Katalog_CCTWS
110260

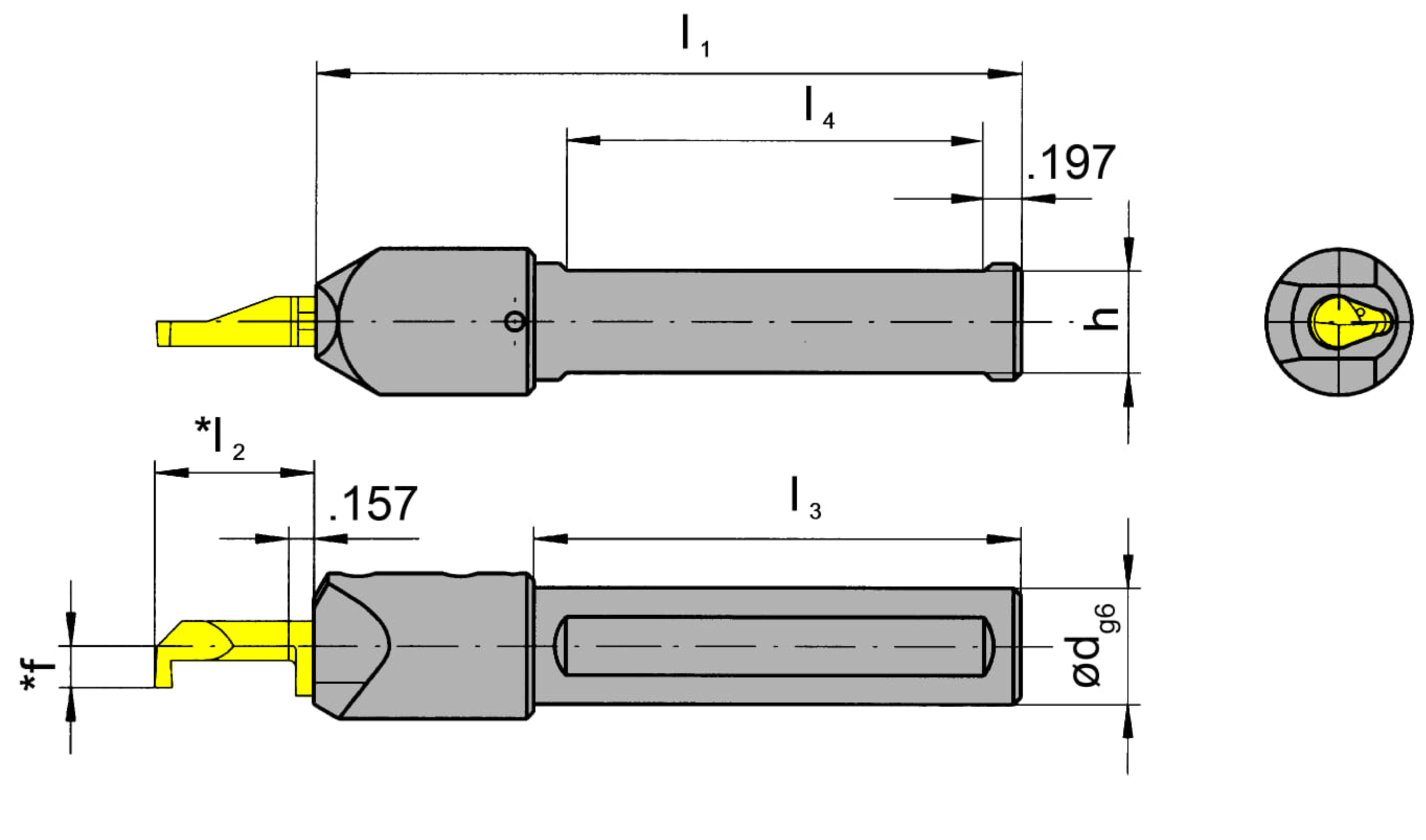

Total length (without cutting insert) (l1)
3.996 ˝
101.5 mm
Shank, clamping diameter (d)
0.625 ˝
15.875 mm
Maximum clamping length (l3)
2.815 ˝
71.5 mm
Length of clamping surface(s) (l4)
2.362 ˝
60 mm
Height clamping surface(s) (h)
0.546 ˝
13.875 mm
| Downloads | |
|---|---|
| BU110062502_20230112_171851429.STP | Download |
| BU110062502.DXF | Download |
| Download all files | |
