BU105.1000.01
Material number BU105100001

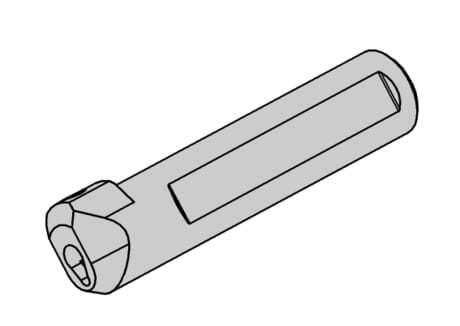

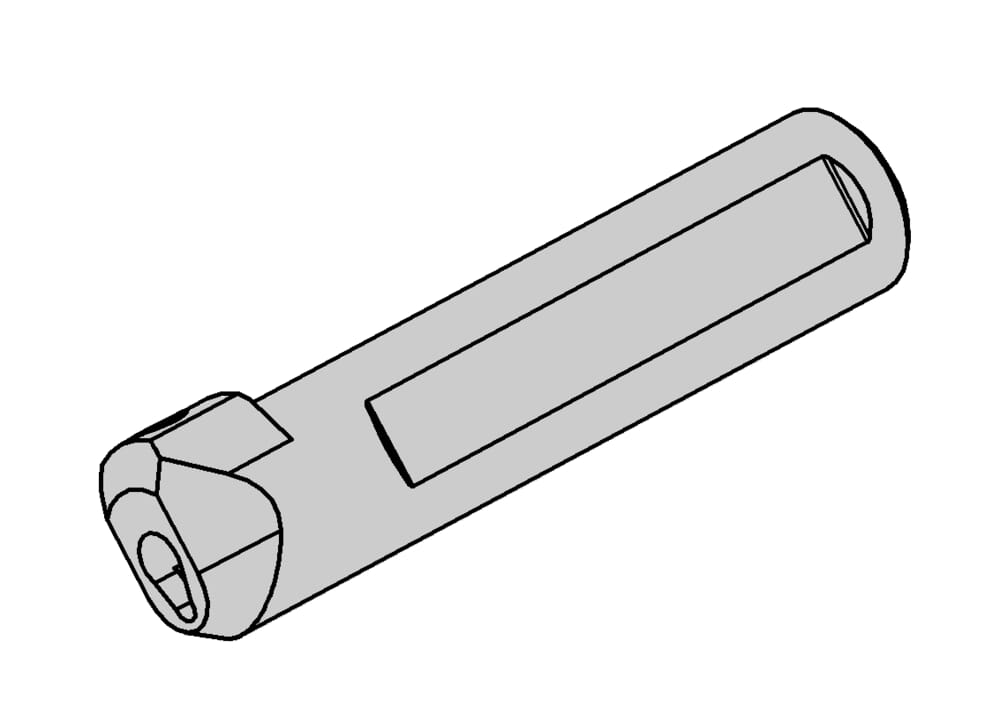

HORN Toolholders BU105.1000.01 for Turning
tool-application
static
tightening_torque
5 Nm
Katalog_CCTWS
105123;105124;105125

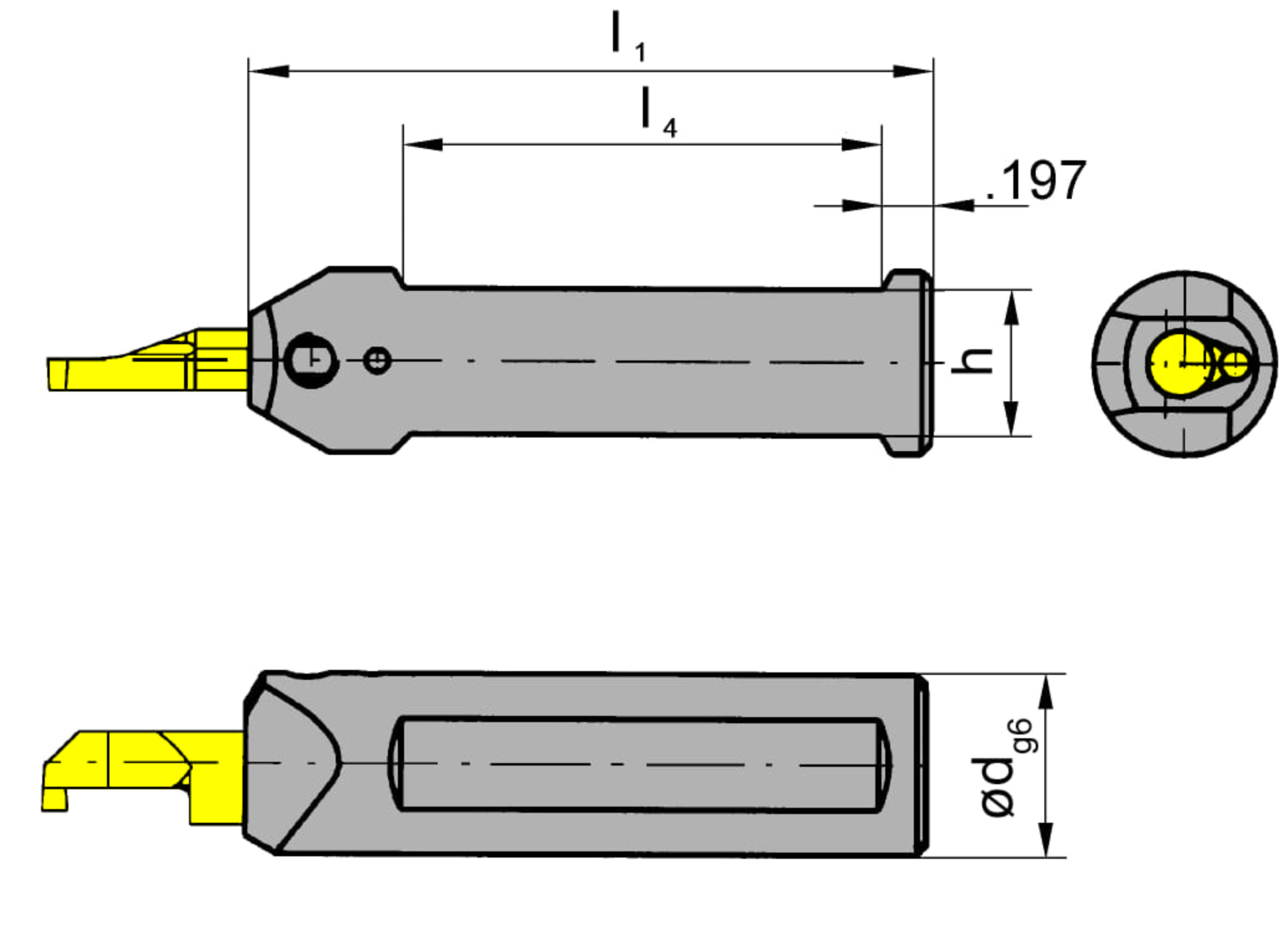

Total length (without cutting insert) (l1)
3.543 ˝
90 mm
Shank, clamping diameter (d)
1 ˝
25.4 mm
Length of clamping surface(s) (l4)
2.559 ˝
65 mm
Height clamping surface(s) (h)
0.921 ˝
23.4 mm
| Downloads | |
|---|---|
| BU105_1000_01.STP | Download |
| BU105100001_20210627_141501000.DXF | Download |
| Download all files | |
