BU105.0500.02

AXIALSTECHEN.EPS INNEN_EINSTECHEN.EPS INNEN_BOHRUNG_AUSDREHEN.EPS IK_GENERELL.EPS

Material number BU105050002

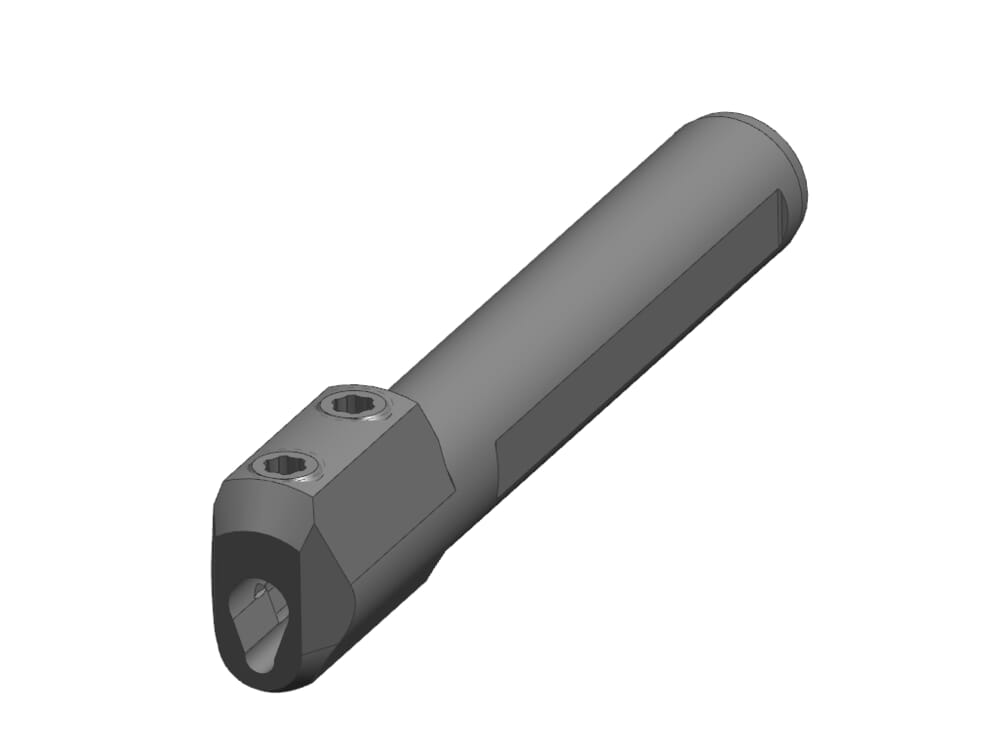

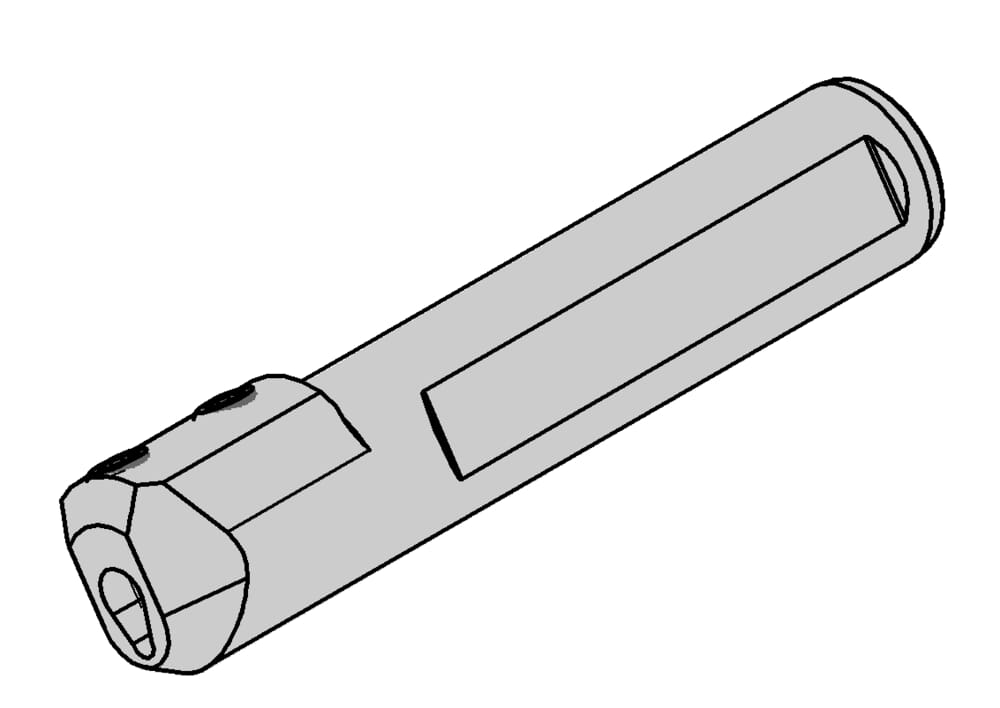

HORN Toolholders BU105.0500.02 for Turning

Cutting data and technical instructions

tool-application
static
tightening_torque
5
Katalog_CCTWS
105225

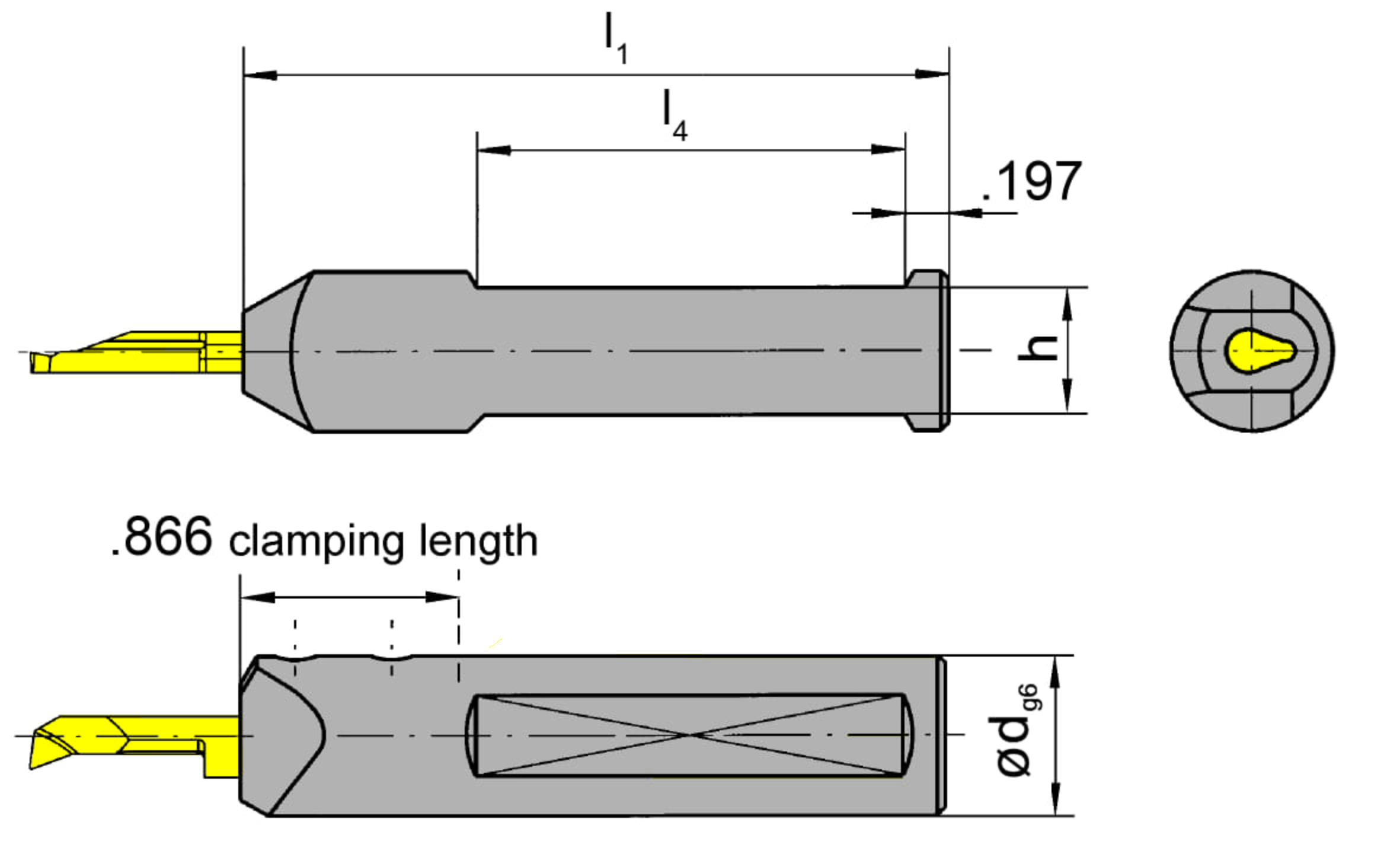

Total length (without cutting insert) (l1)
3.346 ˝
85 mm
Shank, clamping diameter (d)
0.5 ˝
12.7 mm
Length of clamping surface(s) (l4)
1.969 ˝
50 mm
Height clamping surface(s) (h)
0.433 ˝
11 mm
Downloads
BU105050002_20210630_120514645.STP Download
BU105050002.DXF Download
Download all files
