B109.0022.1.2.01
Material number B10900221201

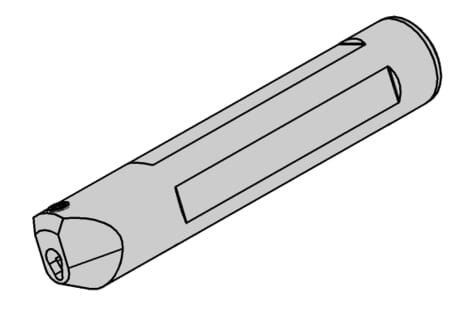

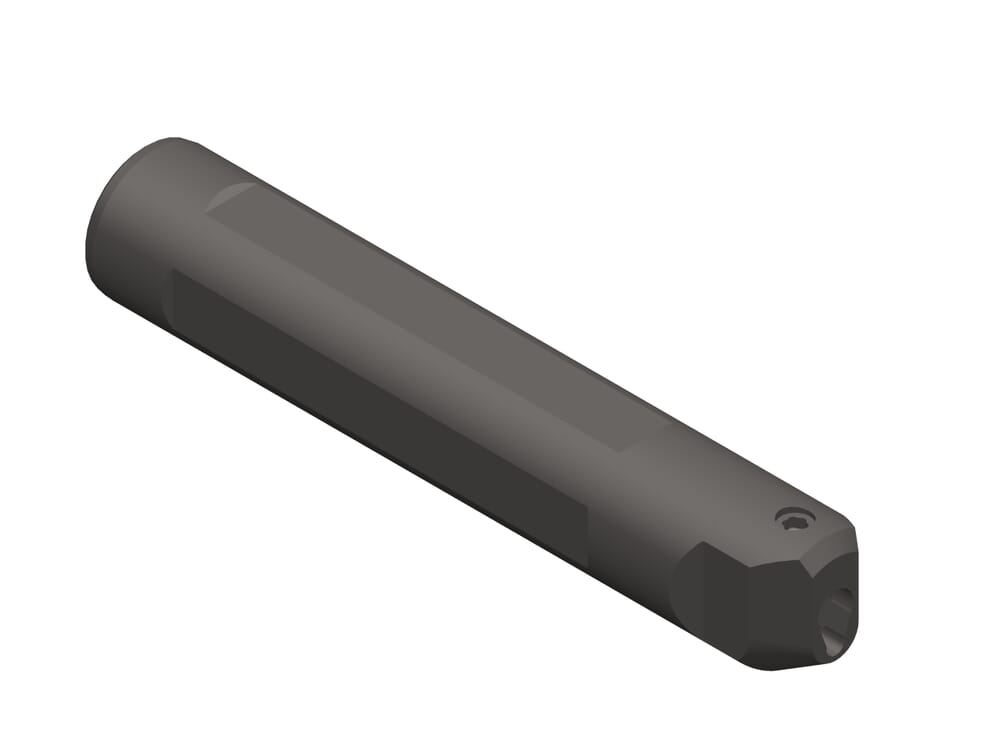

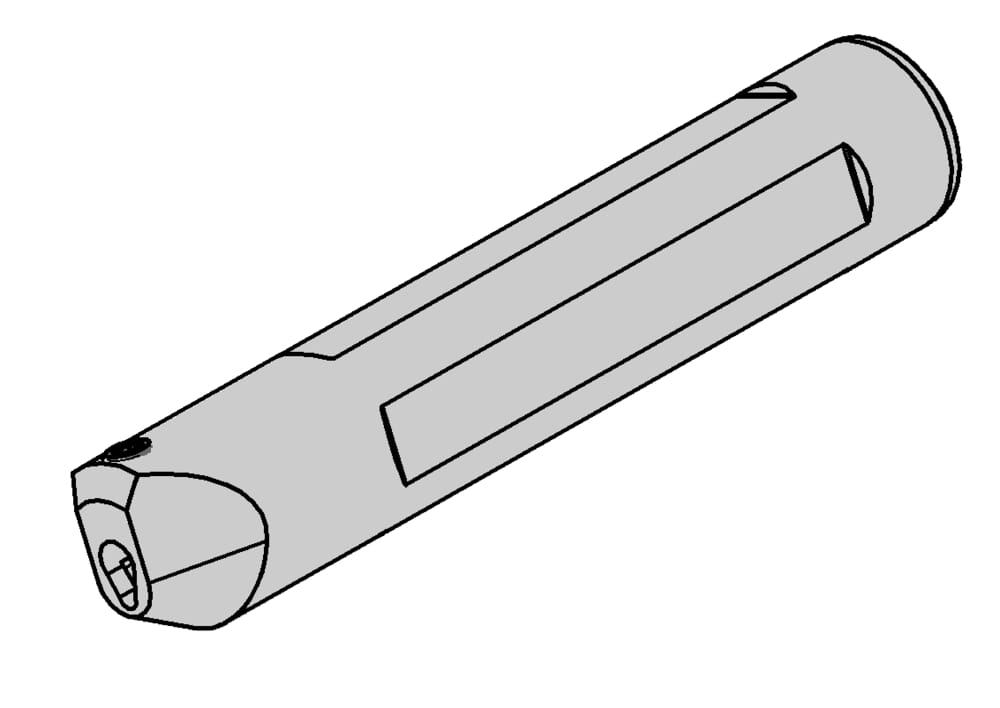

HORN Toolholder B109.0022.1.2.01 for Turning
tool-application
static
Katalog_CCTWS
109140

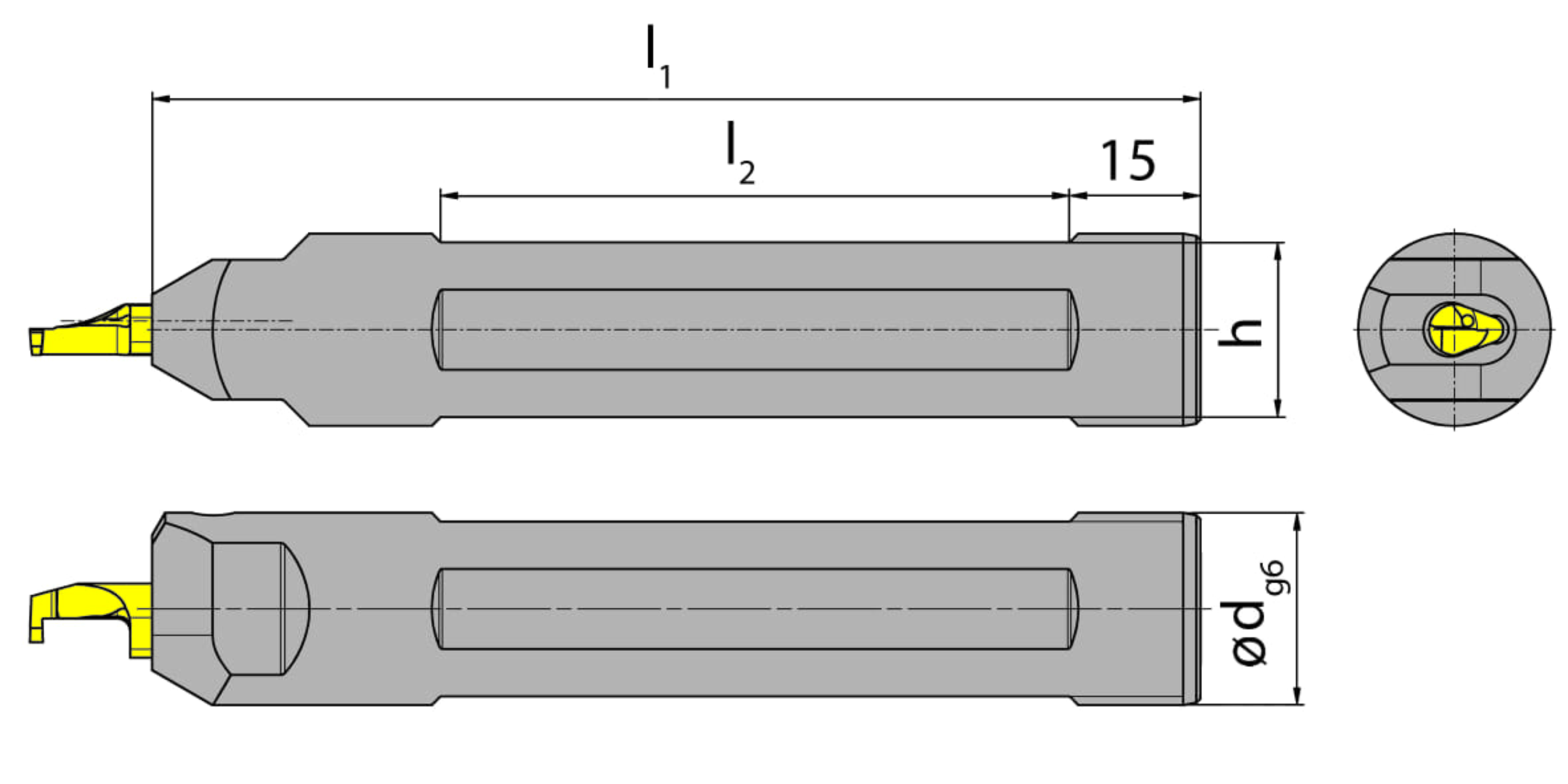

Total length (without cutting insert) (l1)
4.724 ˝
120 mm
Shank, clamping diameter (d)
0.866 ˝
22 mm
Head length (l2)
2.835 ˝
72 mm
Height clamping surface(s) (h)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| B10900221201_20230112_165926163.STP | Download |
| B10900221201_20210629_113602636.DXF | Download |
| Download all files | |
