963.16.02.L.IK
Material number 9631602LIK
HORN Internal turning holder type Horn 105 963.16.02.L.IK for Turning

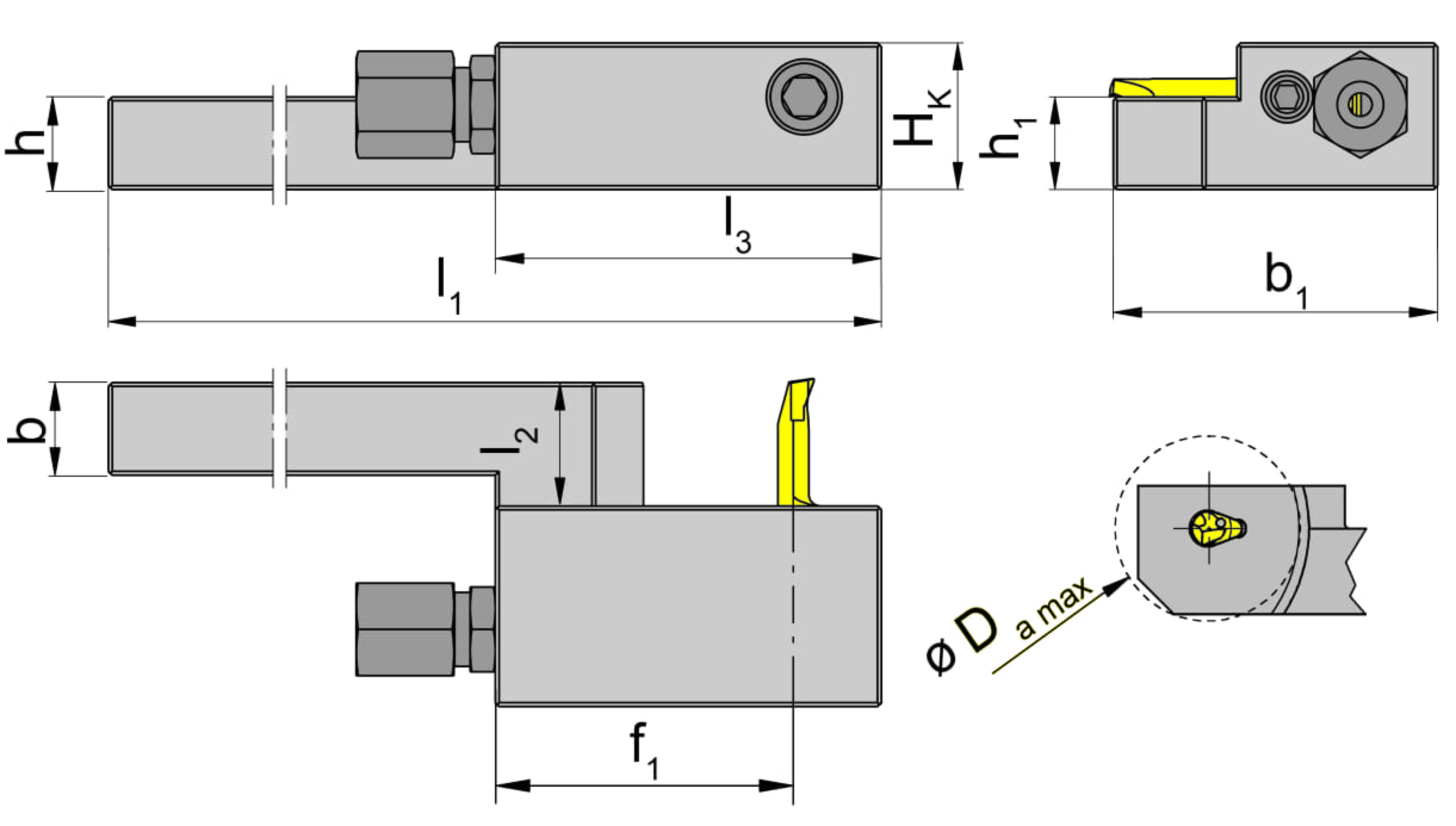

Head height (HK)
0.906 ˝
23 mm
tool-application
static
Katalog_CCTWS
105123;105124;105125
Peak height (h1)
0.63 ˝
16 mm
Useful length, maximum extension length (l2)
0.709 ˝
18 mm
Maximum workpiece diameter (Da max)
2.047 ˝
52 mm
Shank width (b)
0.63 ˝
16 mm
Shank height (h)
0.63 ˝
16 mm
Total length (without cutting insert) (l1)
5.118 ˝
130 mm
Total width (with head) (b1)
1.654 ˝
42 mm
Adjustment dimension cutting center (f1)
1.772 ˝
45 mm
Head length (l3)
50 mm
