962.08.01.R.IK

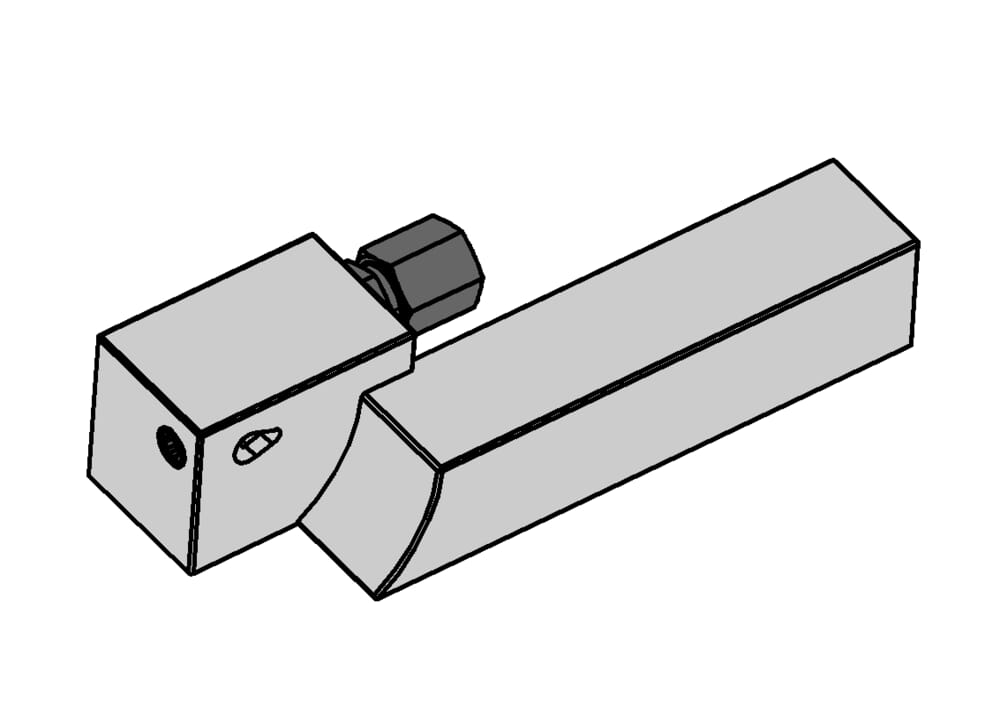

Internal turning holder type Horn 105
Material number 9620801RIK
HORN Internal turning holder type Horn 105 962.08.01.R.IK for Turning
Shank width (b)
0.315
˝
8
mm
ISO_CCTMS
VKT01A0808$$$$
DIN_CCTMS
VKT08080115
Katalog_CCTWS
105123;105124;105125
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
Peak height (h1)
0.315
˝
8
mm
Useful length, maximum extension length (l2)
0.709
18
Maximum workpiece diameter (Da max)
1.181
˝
30
mm
Head height (HK)
0.591
˝
15
mm
Shank height (h)
0.315
˝
8
mm
Total length (without cutting insert) (l1)
5.118
˝
130
mm
Total width (with head) (b1)
1.654
42
Adjustment dimension cutting center (f1)
1.063
27
Head length (l3)
37
mm
