960.Q.0.845.0001.IK

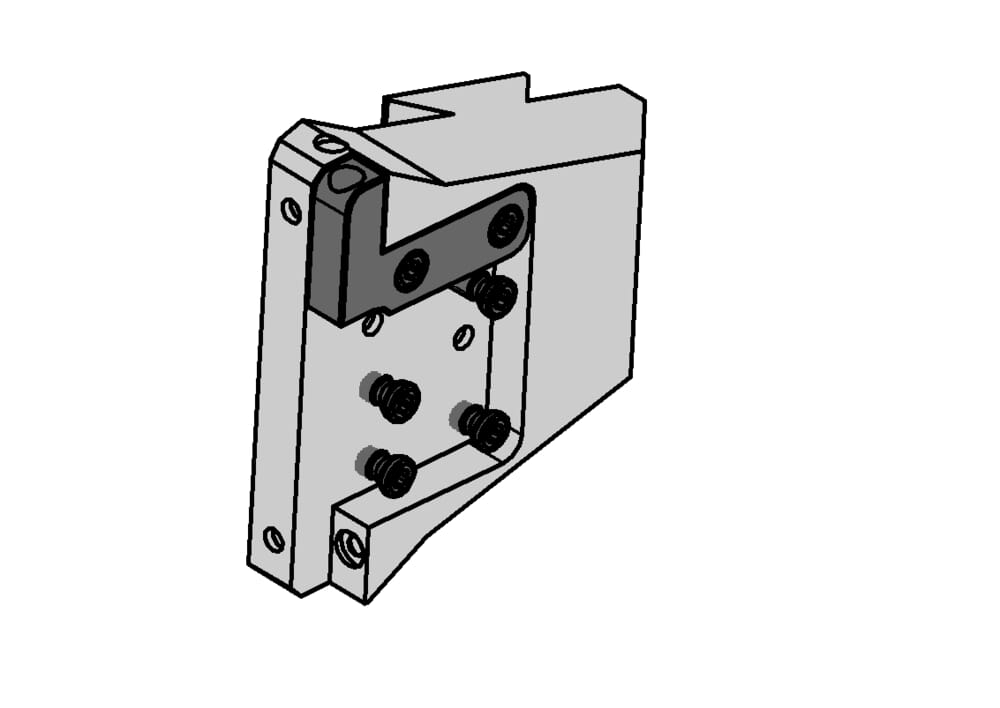

Latching Piece
Material number 960Q08450001IK
HORN Latching Piece 960.Q.0.845.0001.IK for Turning
System grooving holder to system cassette (b1)
0.598
˝
15.2
mm
Katalog_CCTMS
SZ60
Katalog_CCTWS
845001;845002
DIN_CCTWS
HORN-84500193;HORN-84500293
ISO_CCTWS
HORN84500193$$;HORN84500293$$

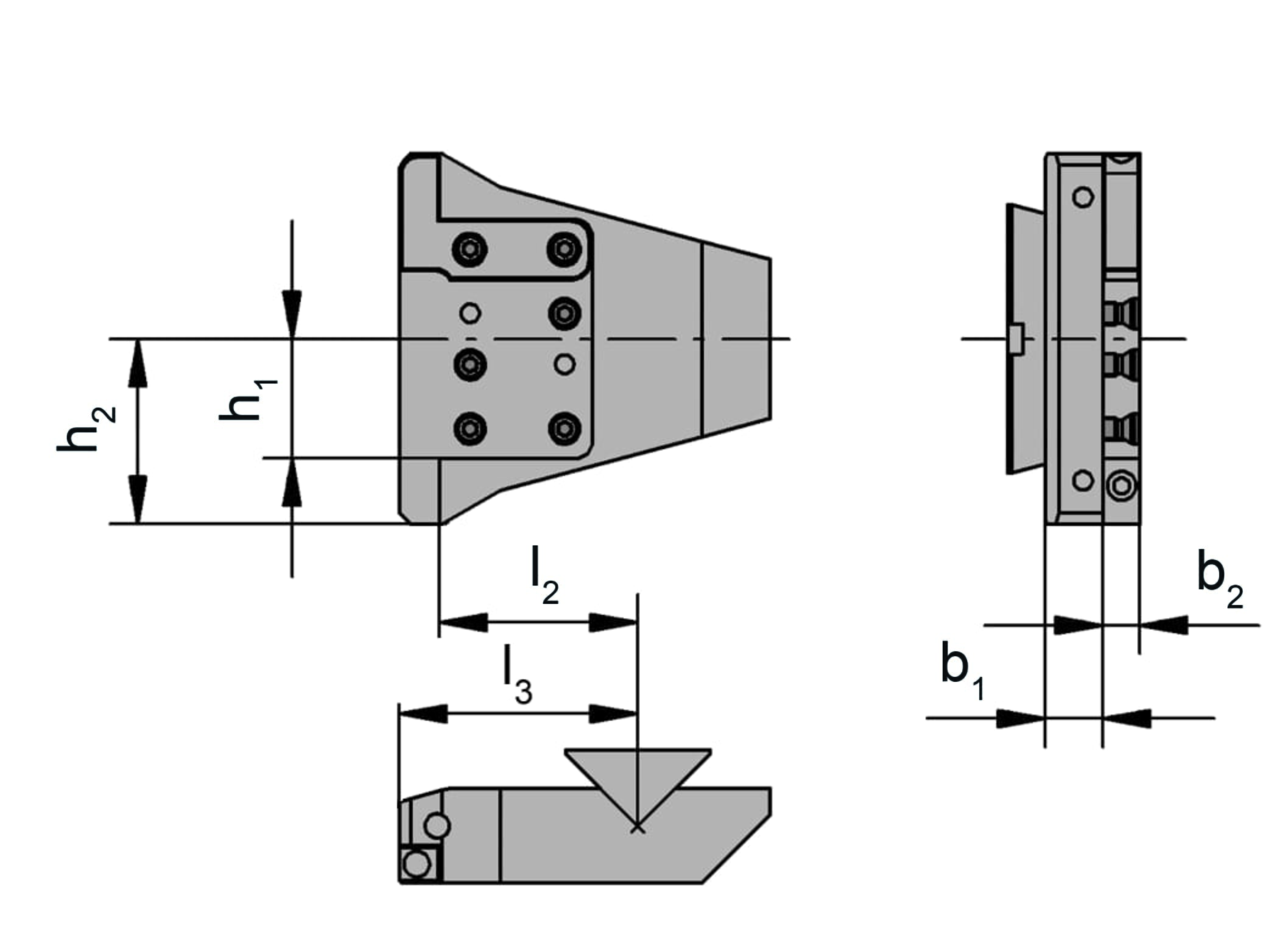

Dimension center to outer edge holder (h2)
1.929
˝
49
mm
Dimension to outer edge grooving holder (l3)
1.969
˝
50
mm
Radius grooving holder (r1)
3.346
˝
85
mm
System cassette outer edge to grooving holder (b2)
0.386
˝
9.8
mm
Cutting insert width (l2)
1.398
˝
35.5
mm
Cassette system from the middle (h1)
1.246
˝
31.65
mm
| Downloads | |
|---|---|
| 960Q08450001IK.DXF | Download |
| Download all files | |
