913.0250.00 EG55

Material number 913025000EG55

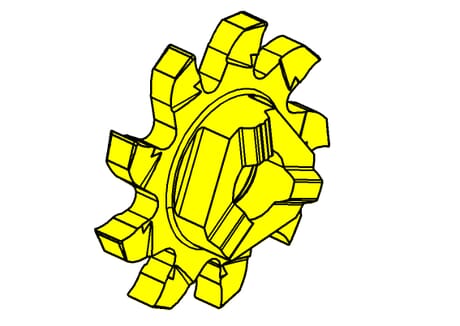

HORN Insert 913.0250.00 EG55 for Milling

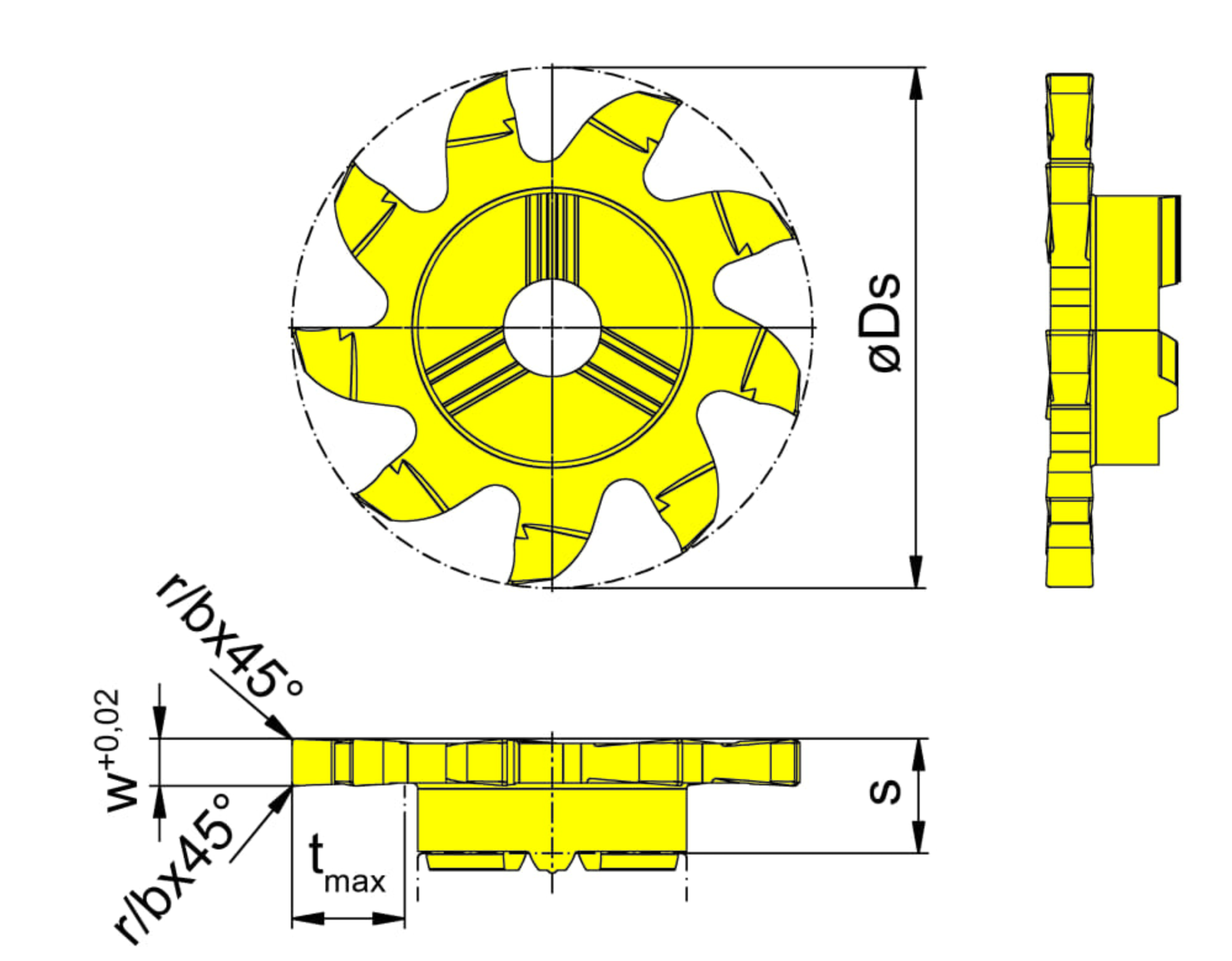

Corner radius (r)

0.008 ˝

0.2 mm

tool-application

rotating

Cutting insert thickness, setting length complete (s)

0.224 ˝

5.7 mm

Maximum milling depth/ depth of groove (tmax)

0.177 ˝

4.5 mm

Width of groove (mm) (w)

0.098 ˝

2.5 mm

Cutting diameter (Ds)

0.854 ˝

21.7 mm
