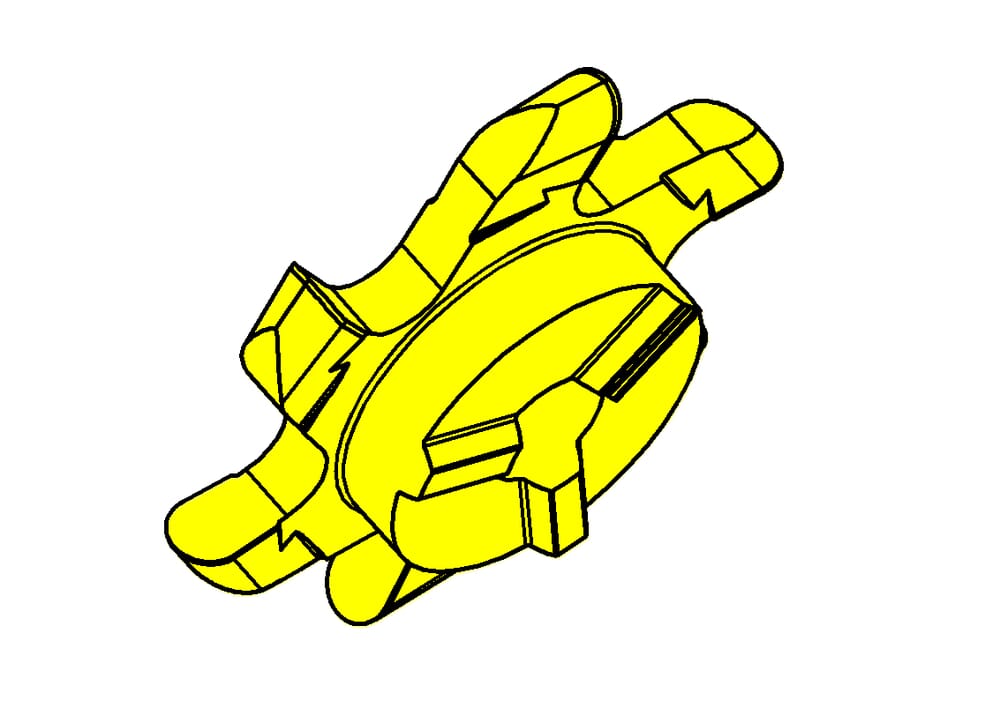

632_0010_20_AS45-PICTO.TIF

632.0010.20 AS45

ZAEHNEZAHL_Z6.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS VOLLRADIUS_NUT.EPS INNEN_NUT.EPS

Material number 632001020AS45

HORN insert 632.0010.20 AS45 for Milling

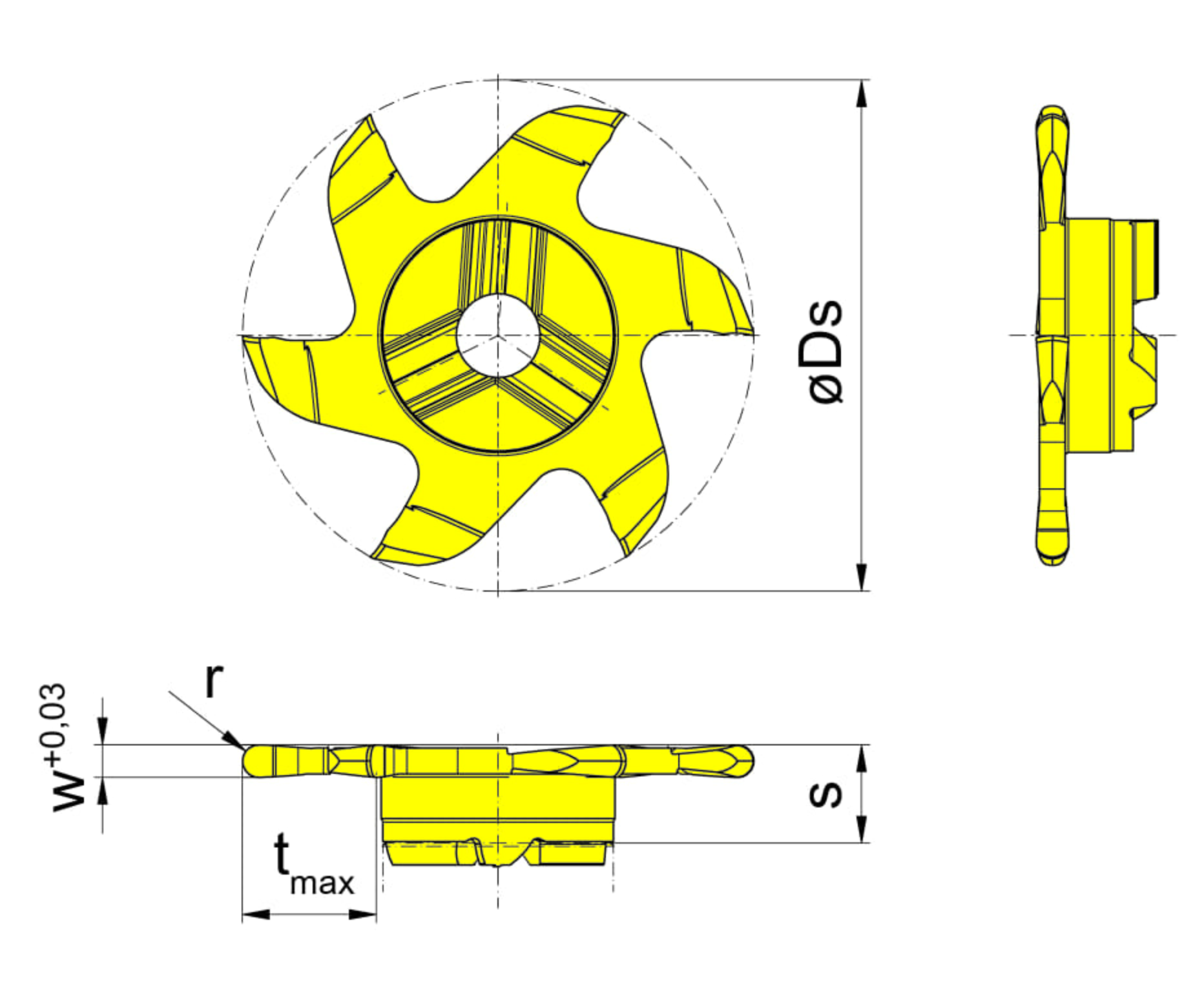

Cutting data and technical instructions

Radius, full-radius (r)
0.039 ˝
1 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.24 ˝
6.1 mm
Maximum milling depth/ depth of groove (tmax)
0.327 ˝
8.3 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Cutting diameter (Ds)
1.248 ˝
31.7 mm
Katalog_SSC
332143R
Downloads
632_0010_20_AS45-DXF.DXF Download
632_0010_20_AS45-ISO.XML Download
632_0010_20_AS45-STP.STP Download
632_0010_20_AS45-DIN.XML Download
Download all files
